Underground operator | Automated Swing Gates

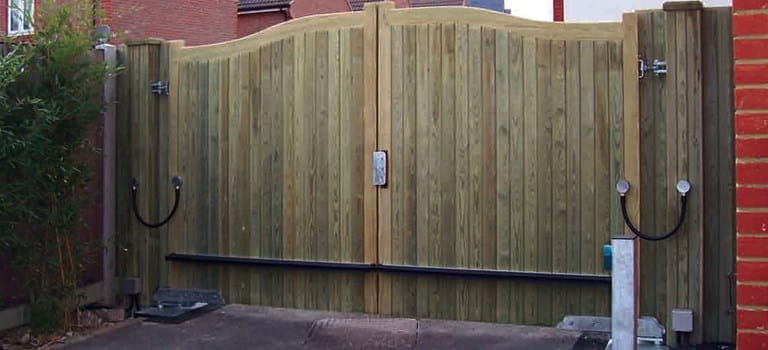

Situated at ground level by each gatepost, Underground Operators are ideally suited to gates up to a maximum of 4m wide per leaf, suitable for residential and commercial gates. When maintenance is necessary the operator can simply be removed from the foundation box without removing the gate leaf.

Enquire about this product

Get a quote for this productSpecify Us
Underground Operator Features

  • Safety photocells
  • Manual release
  • Magnetic locking
  • Maximum opening 180 degrees (dependent on size)
  • Speed of operation up to 90 degrees of approximately 12 seconds
  • Suitable for 1800 operations daily
  • IP67 rated lockable cabinets
  • Supplied fully CE accredited, conforms to the Machinery Directive 2006/46/EC
  • For larger gate sizes, special bespoke options available on request
  • Maintenance / Service package available
  • Single leaf gate

    Gate width Max Operations (1hr)
    Operations per day
    Opening time
     Up to 4m wide (90° opening)            75 1800 12 secs
     Up to 4m wide ( 180° opening) 37 900 24 secs

    Double leaf gate

    Gate width Max Operations (1hr)
    Operations per day
    Opening time
     Up to 5m wide (90° opening)            75 1800 12 secs
     Up to 5m wide ( 180° opening) 37 900 24 secs

    Optional extras

    • Keypad
    • Push buttons
    • Key switch
    • Remote key fob
    • Token system
    • Card reader
    • Audio intercom
    • Video intercom
    • Time clocks

    For applications which demand high performance, and very heavy duty operation for very heavy gates, Jacksons can offer a custom built system to suit. Each system is custom built to suit individual site requirements - call our team on 0800 408 2236 for more information
