Welded mesh panel incorporating timber slats

EuroGuard® Combi | Welded Mesh Panel

EuroGuard® Combi brings our experience and reputation in steel and timber fencing and gates together in a design that combines the beauty of natural wood with the strength of steel to produce proven security fencing with privacy.

The robust welded mesh panels and matching gates also provide additional advantages of a flat facing surface with no hand or foot holds for enhanced security and closely spaced slats for added privacy.

Please note that this panel is supplied 'flat packed' to make transport and installation easier, as once assembled panels are extremely heavy.

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

EuroGuard® Combi Features

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®/ Alarm-aFence®
  • Mesh 200 x 45mm centres with 25mm gap, 5mm wire (wire measured prior to coating)
  • 40 x 17mm kiln dried, pressure treated timber slats
  • Anti-climb design
  • V mesh design offers strength and security without an intimidating appearance
  • Unique vandal-proof panel to post fixings
  • 2 - 4 reinforcement folds according to height
  • Can be stepped to accommodate sloping ground
  • Matching single leaf and double leaf gates available
  • Ideal for adding privacy and creating storage compounds
  • 25 year guarantee for both timber and steel parts

Acoustic fencing accrediation banner

Panels

Mesh panels with 'V' profile and 2 - 4 reinforcing folds (subject to height). Made using 5mm horizontal and vertical wires with 200 x 50mm mesh centres, welded at intersections. Timber slats are treated using our Jakcure® treatment process, guaranteeing the timber for 25 years against rot or insect attack. Steel mesh panels have a 25 Year Service Life Guarantee against rust.

Gates

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates
EuroGuard® Combi Panel Specifications

EuroGuard® Combi Panel Specifications

Height (mm) Post Centres (mm)
Timber Slats (mm)
Post Dimensions (mm)  Overall Post Length (mm)
1585 3054 40 x 17 60 x 60 (plus spur post - site dependent) 2100
1870 3054  40 x 17 80 x 60 (plus spur post*) 2500
2070  3054 40 x 17  80 x 60 (plus spur post*) 2800
2470  3054  40 x 17   80 x 60 (plus spur post*) 3300
3170  3054  40 x 17  120 x 60 (plus spur post**)   3900

*spur post size 80 x 60mm

**spur post size 120 x 60mm

Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing
    Standard Finishes
  • Panels are Galfan® zinc alloy coated
  • Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Galvanised and powder coated to non standard BS or RAL to special order
  • Marine coat for installations within 500m of salt water or an estuary
  • Timber slats Jakcure® pressure treated
  • Explore our finishes

    Finishes

    Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • hedgehog-6714346

    This is a hedgehog friendly product

    The design of this fence with the timber pales covering the mesh apertures prevents hedgehogs from becoming stuck, but will not allow them to pass underneath the fence unless the panels are slightly raised or a few small holes are dug along the perimeter.

    Comparison tool list

    Compare this product

    Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

    NBS Source Specify

    Specify this product on NBS Source
    Specify

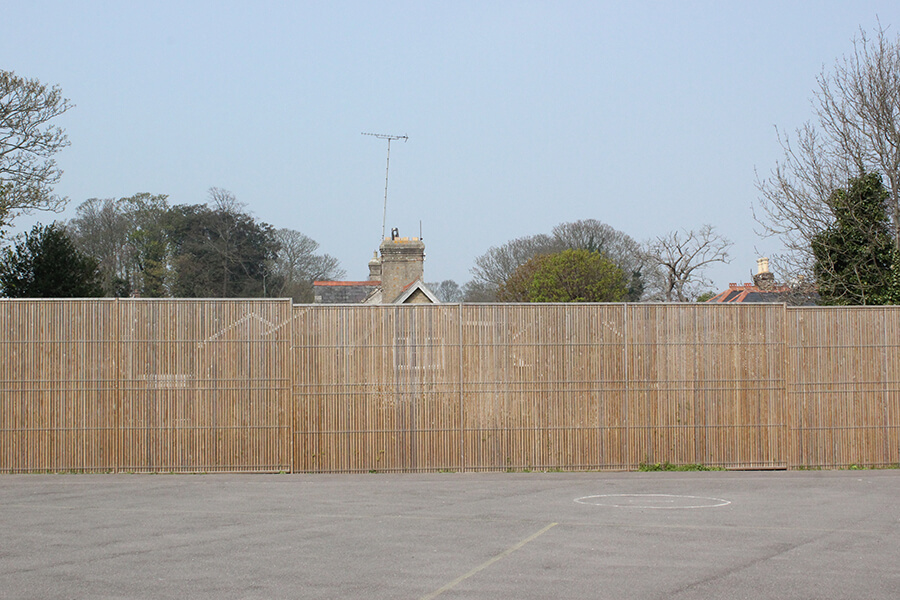

    EuroGuard® Combi Applied in a school environment

    This short clip demonstrates how EuroGuard® Combi is commonly applied in schools, commercial properties and residential developments to create tidy and secure storage solutions, mitigating the risk of vandalism and arson and improving surrounding environments.
