LPS 1175 Security Rated Fencing

UHS Heavy Mesh C5 (SR3)

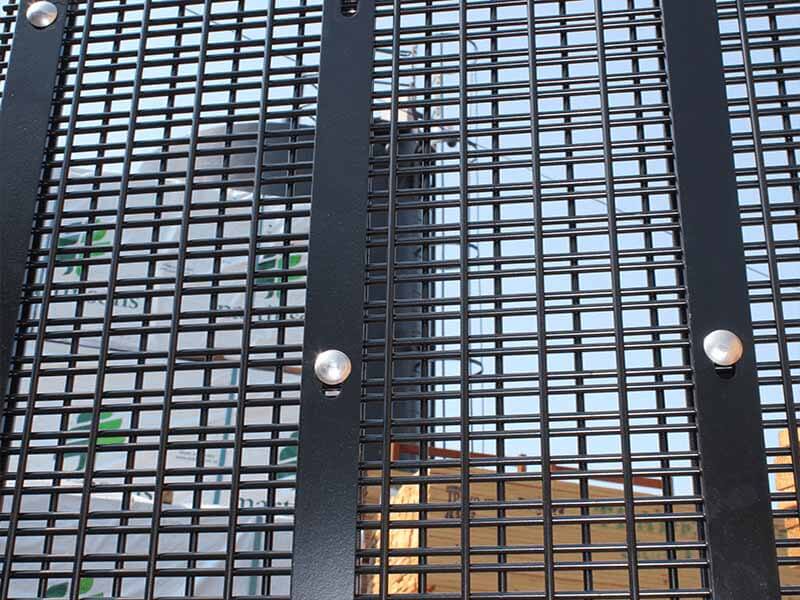

UHS Heavy Mesh has been designed and tested to withstand forced entry using tools which include battery power tools. The C5 mesh system is constructed from 250mm wire double skinned mesh with clamp bars added at 250mm centres with anti tamper security fixings.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us

Compare this product

Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

UHS Heavy Mesh SR3 Features

  • LPS 1175 C5 (SR3) approved
  • Heavy gate wire welded mesh security fencing system
  • Double skinned-providing a high level of security
  • Designed to be used in high security applications
  • Stainless steel fixings
  • Secured by Design preferred specification
  • Anti-climb design
  • Double 50 x 28mm mesh - creating a smaller aperture
  • SR3 gates available


LPCB product page logo banner


C5 gates available

UHS Heavy Mesh C5 Panel Specification

Height (mm) Post Centres (mm)
2415 2505
3031 2505

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Standard Finishes

  • Mesh panels are galvanised to BS EN 1461:2009 as standard
  • Optional powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary
  • Document Downloads

    Download specification documents, drawings and case studies for this product


    About C5 (SR3) Fencing

    C5 fencing has been tested and certified to provide protection against more determined opportunistic attacks after undergoing the LPS 1175 test devised by LPCB. During testing, our fencing had to delay several attacks using category C tools such as a short axe, chisel, gas torch, and crow bar, each lasting at least 5 minutes, providing it with a rating of C5 under Issue 8, the equivalent of SR3 under Issue 7. Find out more about the range here which features welded mesh panels and an acoustic barrier.
