Timber noise barrier

Jakoustic® Absorptive | Acoustic Fencing

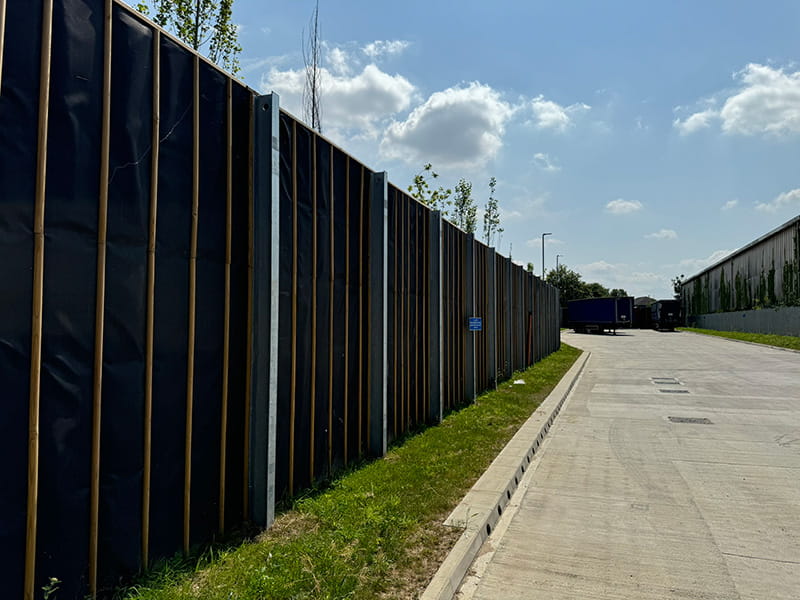

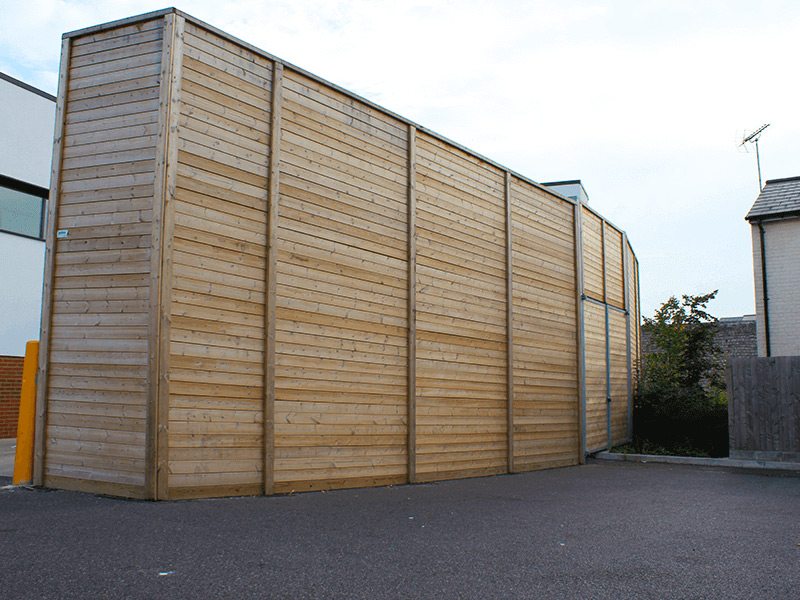

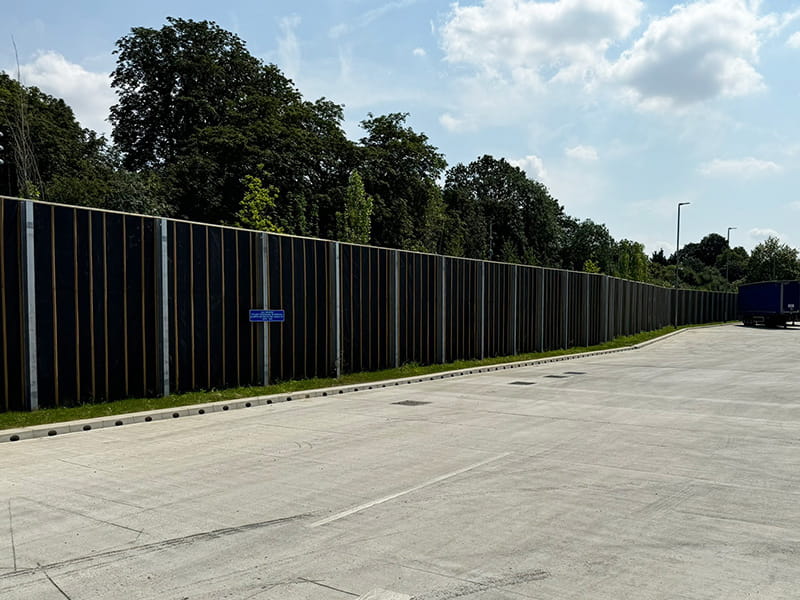

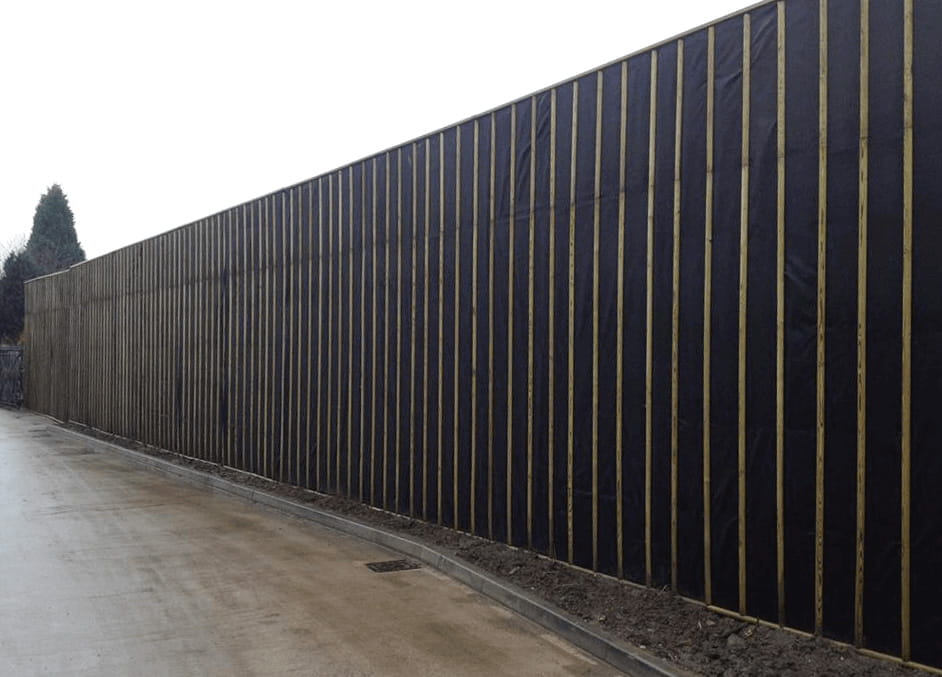

Jakoustic® Absorptive takes the proven Jakoustic® Reflective design of heavy section planed timber boards with deep interlocking ‘v’ tongue and groove joint, coupled to tuning fork posts and adds an absorptive layer of a mineral Rockwool fibre and protective membrane to one side of the barrier.

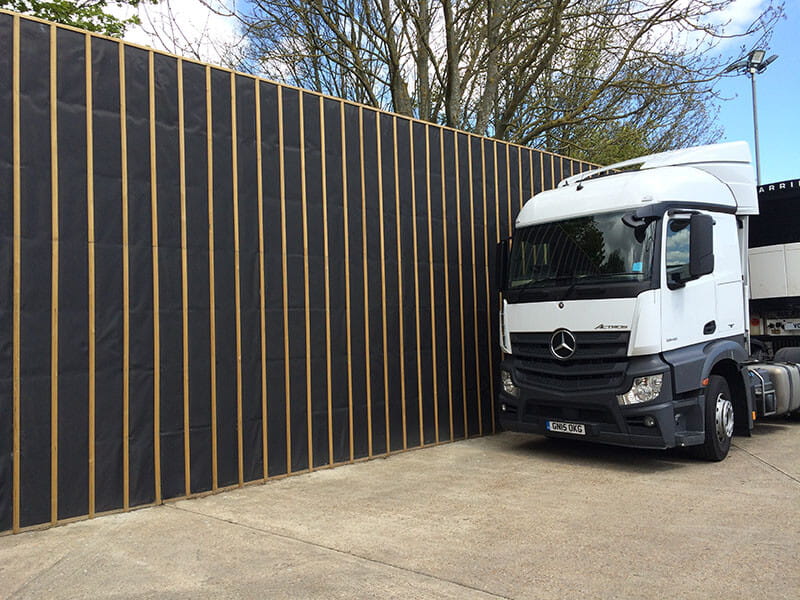

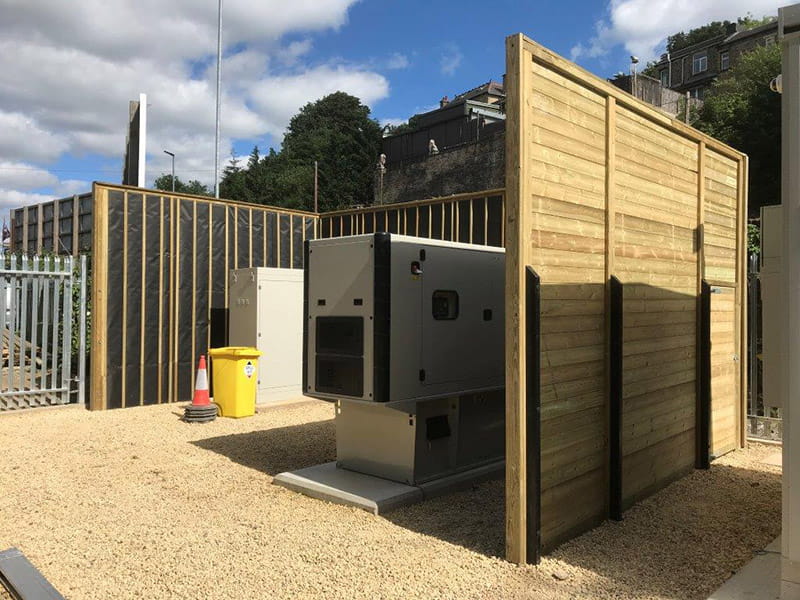

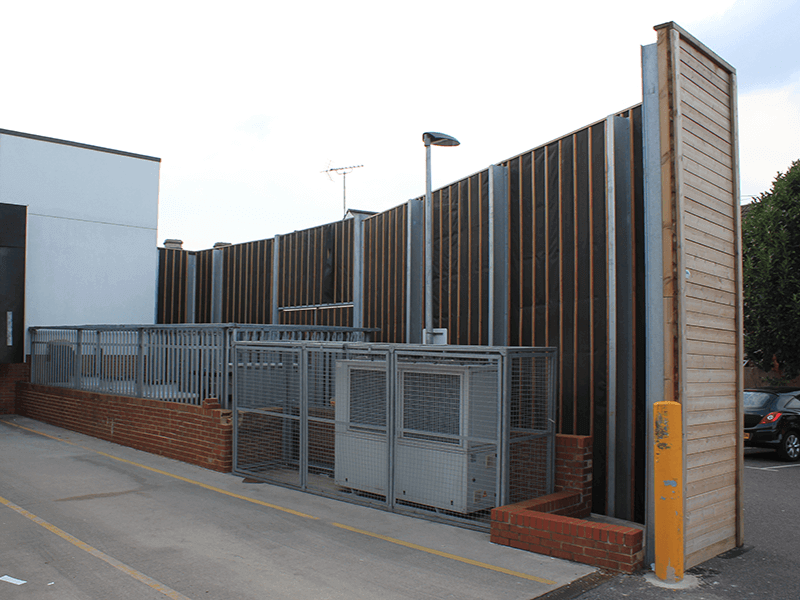

The Jakoustic® Absorptive barrier is designed specifically to keep noise within a contained space and is typically used around continuous power supply generators, air conditioner compressors, waste compactors and goods loading areas.

25 year Jakcure® guarantee

*Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793- 2:1998; Category = B3. Rating according to BS EN 1793-1:1998; Category=A3. Laboratory sound reduction 32dB.

Jakoustic® Absorptive Features

  • Timber construction with planed boards visible on one face
  • Unique tuning fork design posts
  • Special fixings clamp the acoustic boards between posts
  • Can accommodate changes in level or profile
  • With timber capping and counter rail
  • Jakoustic® fencing with an additional absorptive layer covered with a protective membrane
  • Matching pedestrian, swing and tracked sliding gates
  • Up to 32dB reduction in noise*
  • Virtually any height to suit application
  • High privacy barrier

Applications

✔ Residential properties

✔ Commercial properties

✔ Railways

✔ Sports venues

✔ Industrial

Jakoustic® Absorptive Specifications

Heights from 1.8m-4.0m available as standard. Heights up to 2.0m supplied with timber tuning fork posts. Heights of 2.1m-4.0m include timber tuning fork posts and galvanised steel spur post reinforcements, powder coated black as standard.

For heights over 4m, see Jakoustic® Commercial and Highway.

Height (mm) Post Centres (mm)
 Spur Post (mm) Post Length (mm)
2000  2410 N/A 2900
2500 2410 2000 3400

3000

2410 2500

3900

3500 2410 2700 4400
4000 2410 3300 4900



Post options

  • Timber tuning fork posts for heights up to 4m

Acoustic CPD available

Jacksons Fencing offers a free CPD seminar on acoustic fencing and environmental noise pollution, accredited by RIBA, to book please email cpd@jacksons-fencing.co.uk.
