Solar Power Fence

Jaksun | Solar Fence Panel

The Jaksun® Solar Fence Panel welcomes new opportunities for fencing in residential developments, Passivhaus constructions, schools, commercial properties, and anywhere requiring a robust fence, or with sustainability credentials to meet. Combining a 425W solar panel with our trademark Jakcure® pressure treated timber, Jaksun is a highly sustainable fencing option, harnessing the sun to produce energy. With a 25 year guarantee on the timber against rot and insect attack and a 25 year product warranty and 25 year linear power output warranty provided by the solar panel manufacturer, Jaksun solar panel fence is a great investment for the future.

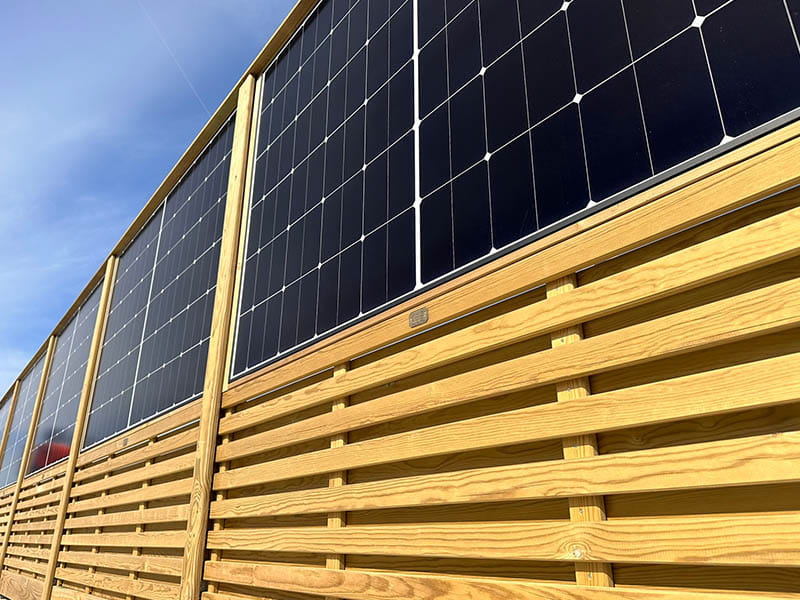

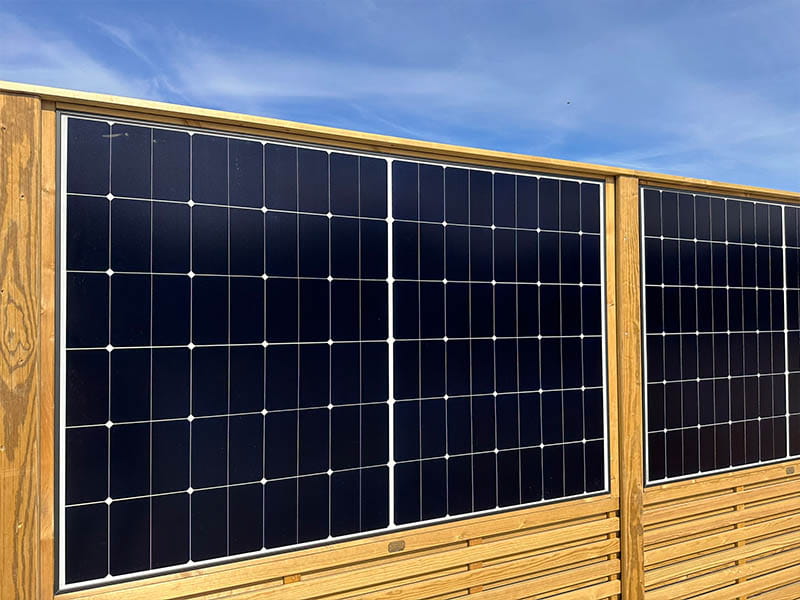

Jaksun is seen installed on 0.6m high Venetian Hit and Miss fence panels in photos.

Enquire about this product

Get a quote for this productSpecify Us
BuyOnlineIcon

Buy This Product Online

You can buy this product online at www.jacksons-fencing.co.uk

Buy Online
Jaksun Solar Fence Panel Features

25 year guarantee on timber components

25 year warranty on solar panel and linear power output from manufacturer

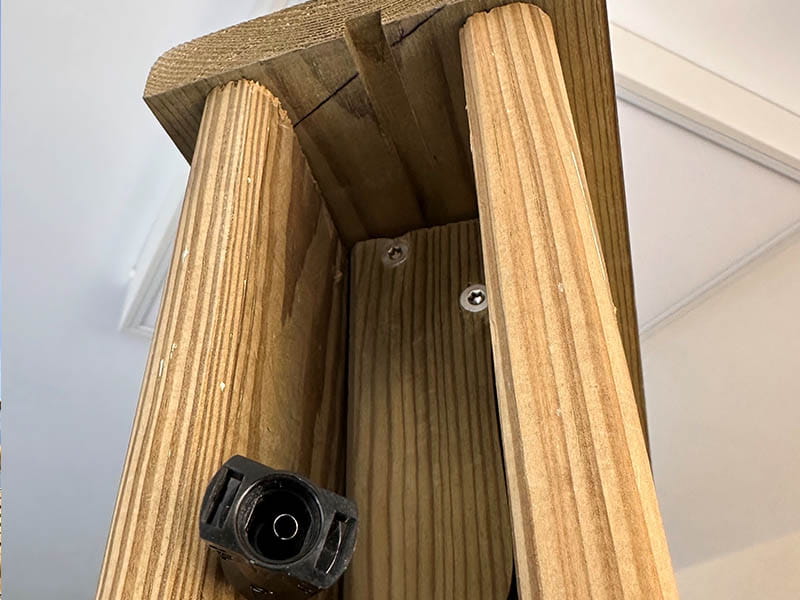

Pair with our slotted posts and capping rail

We recommend combining with any of our 0.6m high timber fence panels

425W electrical peak power

The solar component integrated into the fence is MCS certified





Timber product page logo banner

Download

Jaksun Q&A

We've compiled a question and answer sheet to help solve any queries you may have about Jaksun. Download the pdf by clicking here.

Jaksun® Solar Fence Panel Specification

   Height
(mm)
  Width
   (mm)
Thickness
(mm)
1170 1830 50

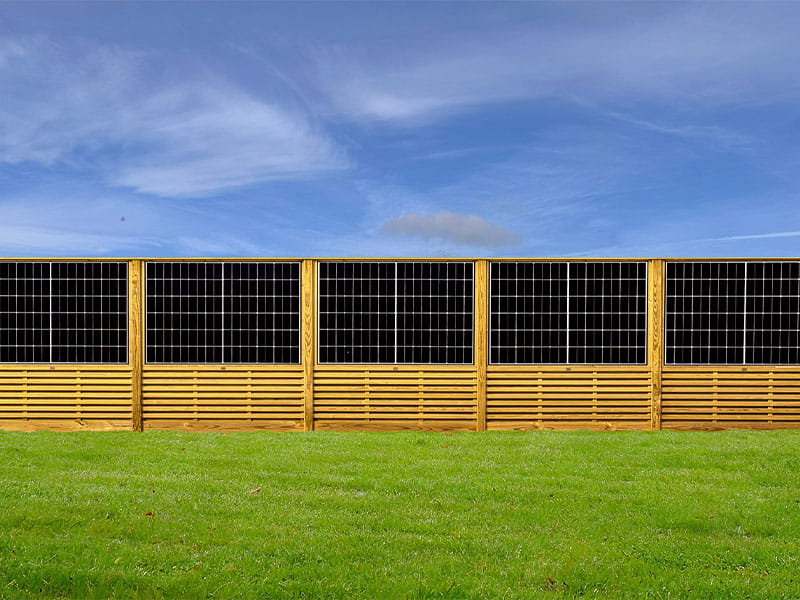

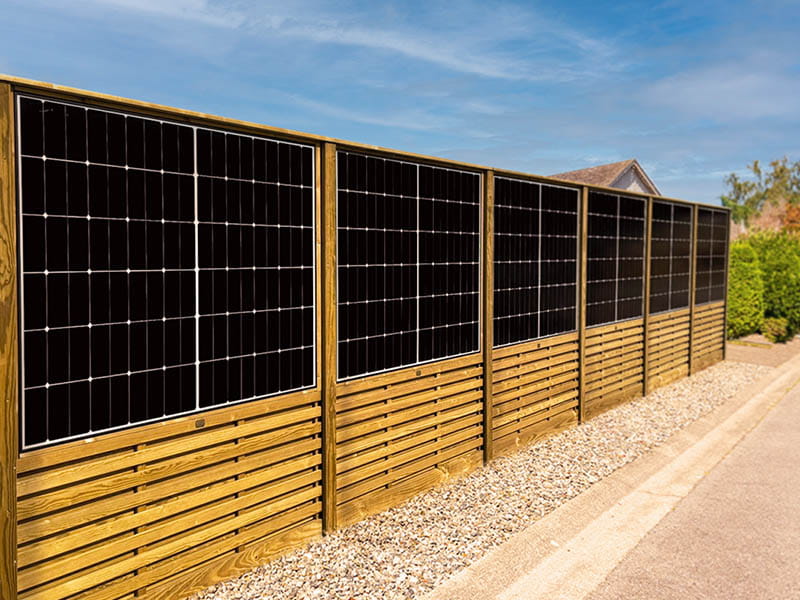

Jaksun® can be installed as a standalone fence panel between slotted posts, or on top of another timber fence panel between slotted posts. Increase efficiency and performance is expected when panels are raised off the ground. In photos it is seen on top of Venetian Hit and Miss fence panels at 600mm high, a gravel board at 140mm high, and capping at 20mm high, giving a fence height of 1930mm. Other panel combinations are available but anything over two metres high will generally require planning permission. Please note, the solar fence panels cannot be cut down in any way. If the end of the run requires cutting to width, then we recommend using a full height panel to match the same as the panel installed under Jaksun.

Solar panel specification

  • Electrical Peak power - 425W
  • Vmpp - 32.96V
  • Voc - 39.23V
  • Impp - 12.90A
  • Isc - 13.93A
  • Panel Options

  • Gravel boards
  • Capping rails
  • Post caps
  • Gravel Boards

    Please note that gravel boards must be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee conditions. More detail can be found on our Jakcure® T&Cs page.

    Dimensions: 1830 x 140 x 25mm

    If you are specifying for new developments please consider our Hedgehog Friendly Gravel Board.

    Standard Gravel BoardHedgehog Friendly Gravel Board
    Timber treatment CPD available

    Jacksons Fencing offers a free CPD seminar on timber treatment, accredited by RIBA, to book please email cpd@jacksons-fencing.co.uk.
