Metal fence railings
Barbican Imperial® Fencing | Security Fencing

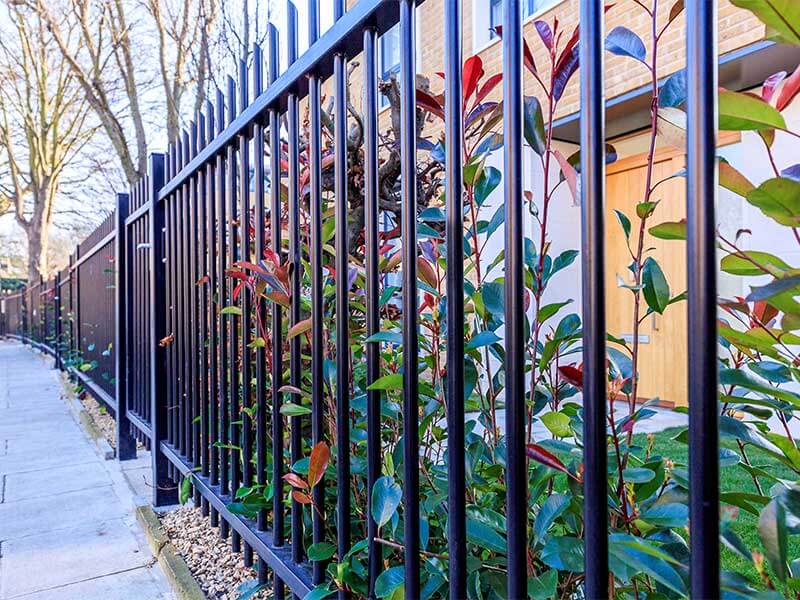

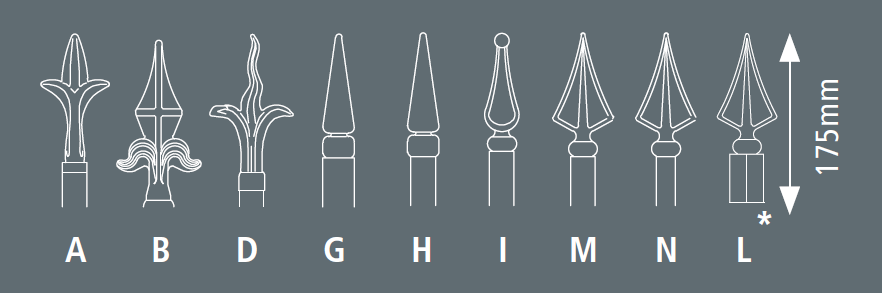

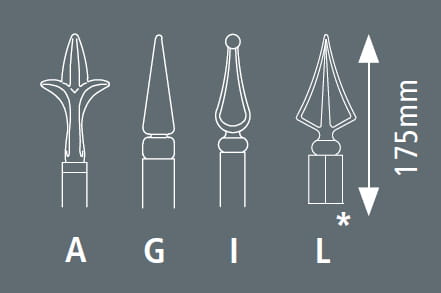

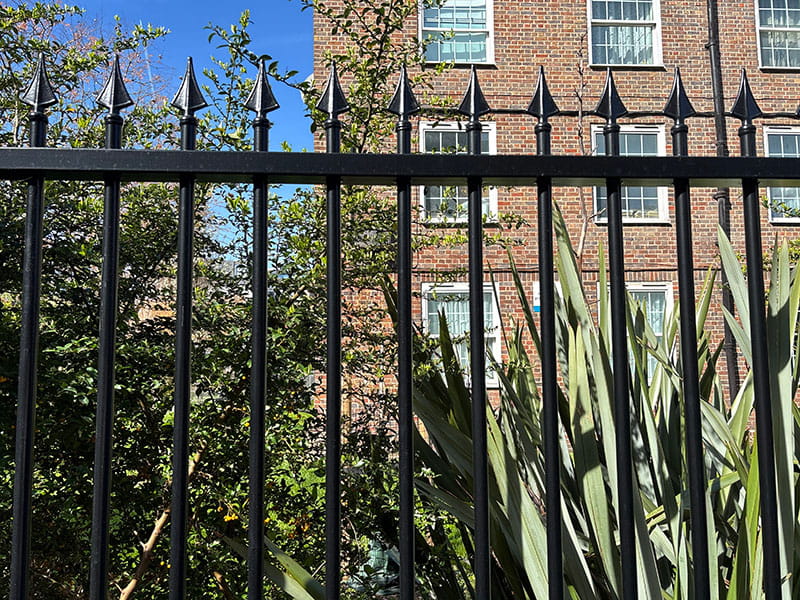

Featuring our classic welded pale-through-rail construction, Barbican Imperial® metal fence railings have a less intimidating appearance with 25mm and 32mm diameter round pales (height dependent), with no reduction in strength or security. Barbican Imperial® is available with a choice of decorative finials and post tops to offer the right solution for even the most prestigious applications.
Barbican Imperial® correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
25 year service life guarantee
Enquire about this product
Click below to get in touch and our team will get back to you with a free, no obligation quote, or find all the details you need for specifying this product.
Get a quote for this productSpecify Us
We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.
Barbican Features
- Posts can be customised for Barbed wire / Razor wire / Rota Spike®
- Vertical pale spacing conforms to building regulations for anti-trap
- Unique vandal-proof panel to post connectors
- Panels can be manufactured to accommodate sloping ground
- Anti climb design

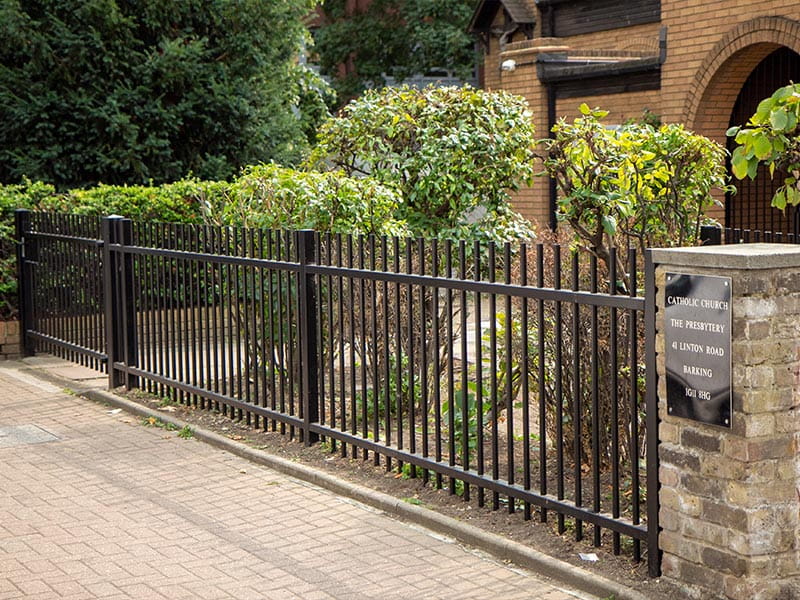

- Matching single leaf and double leaf gates available

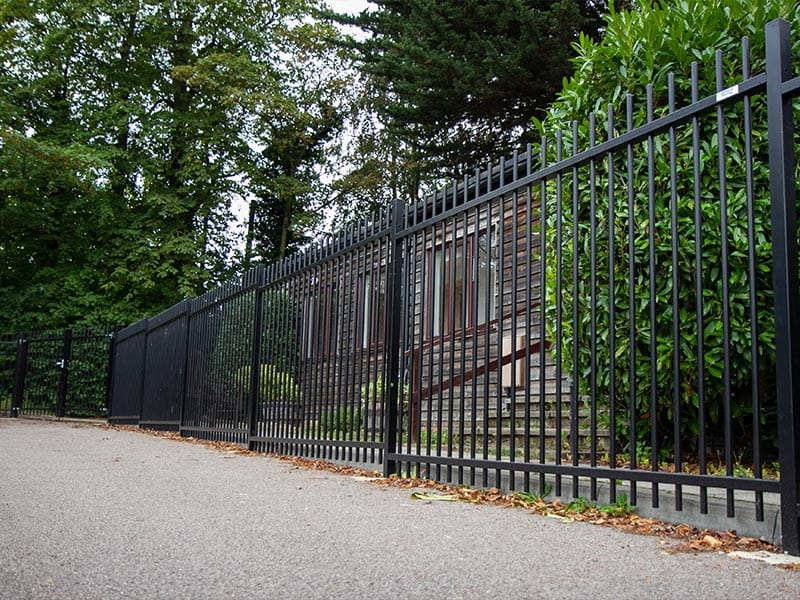

Panels

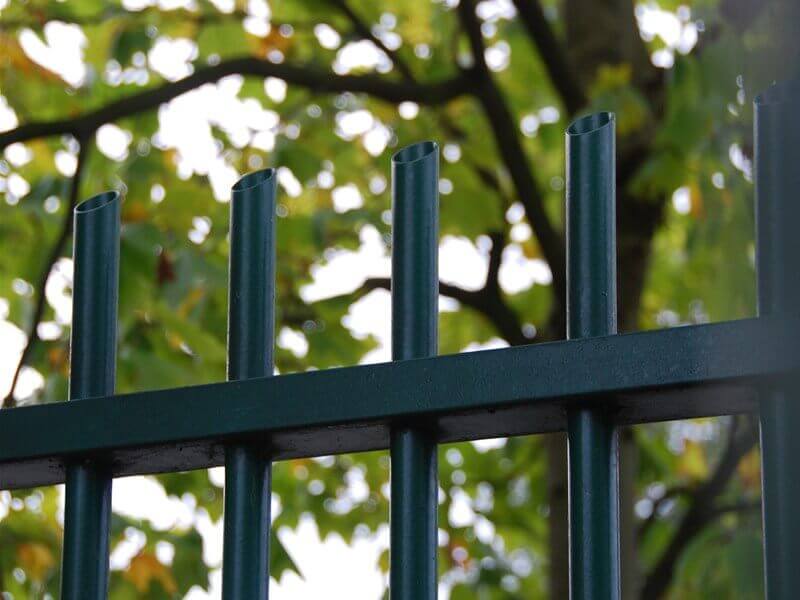

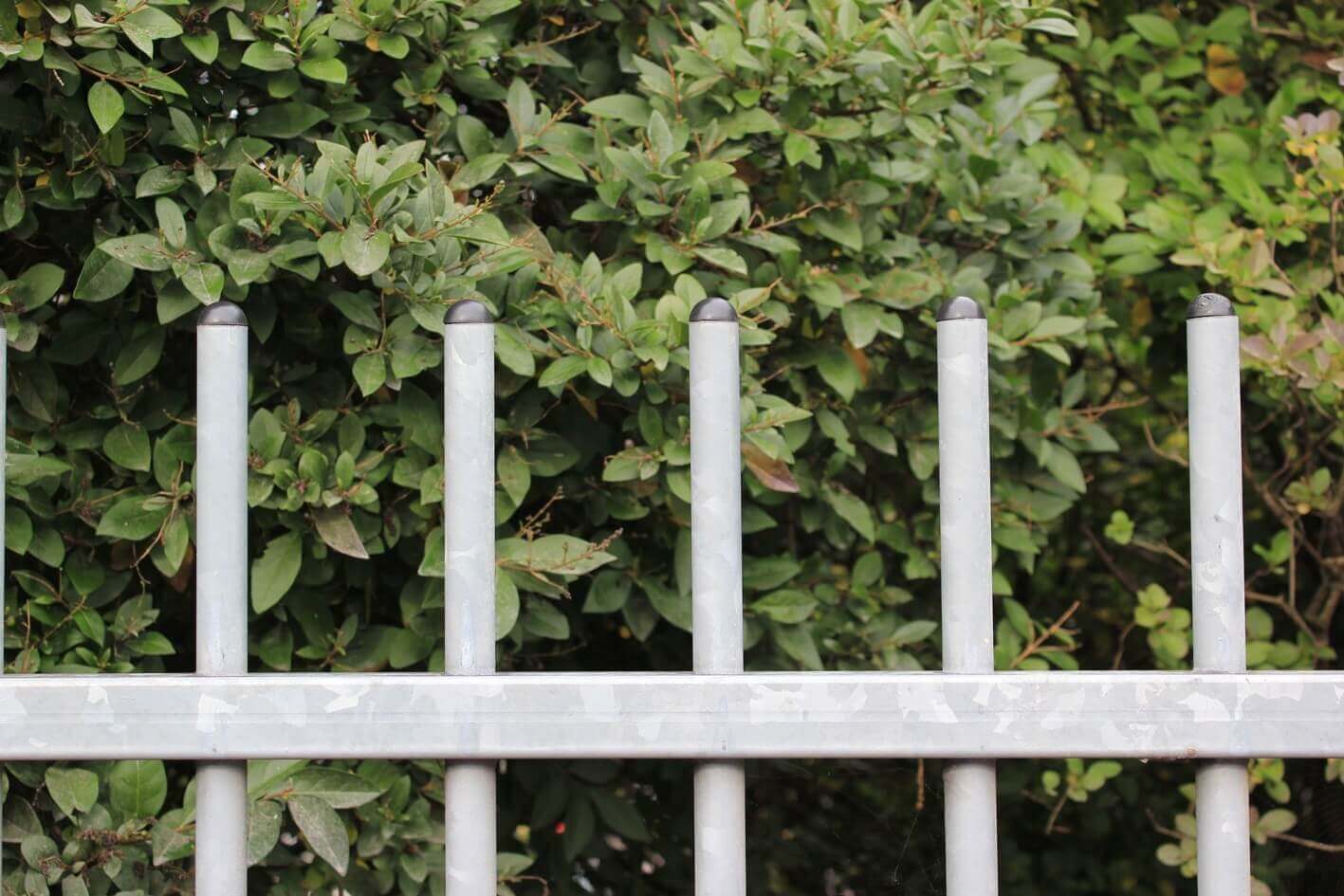

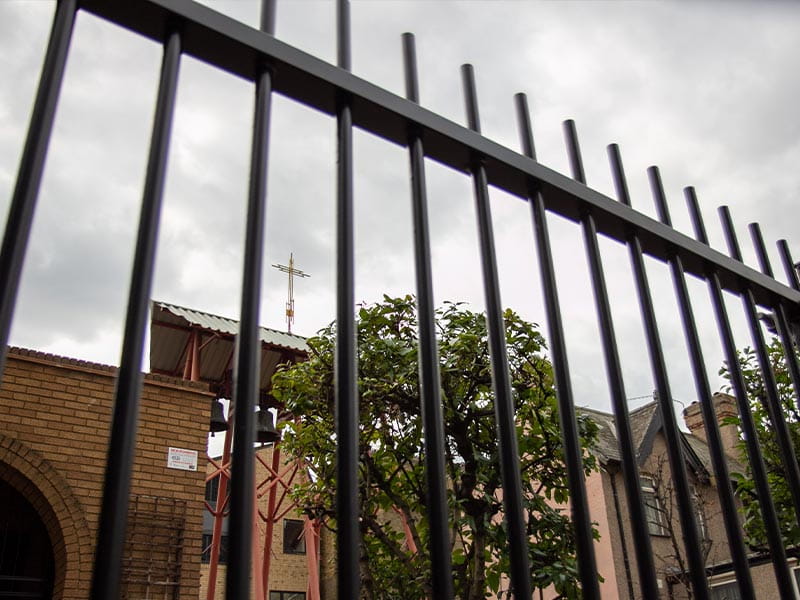

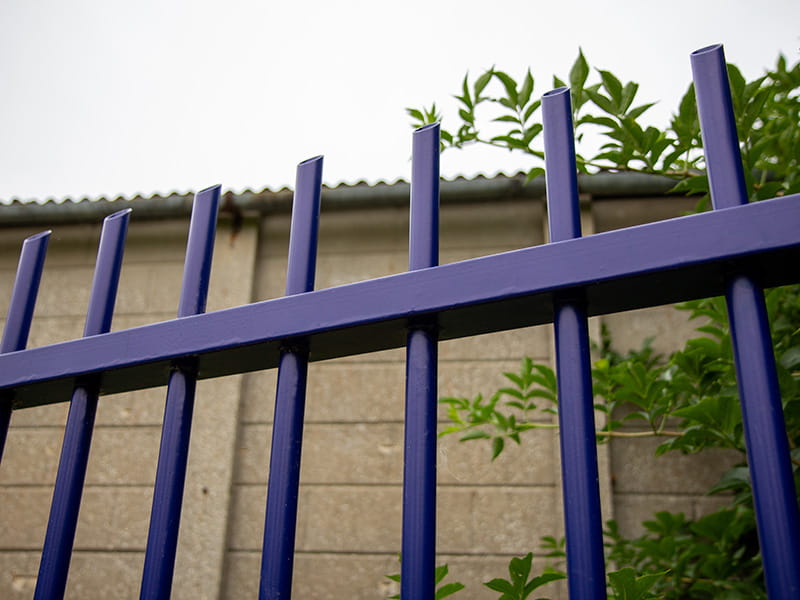

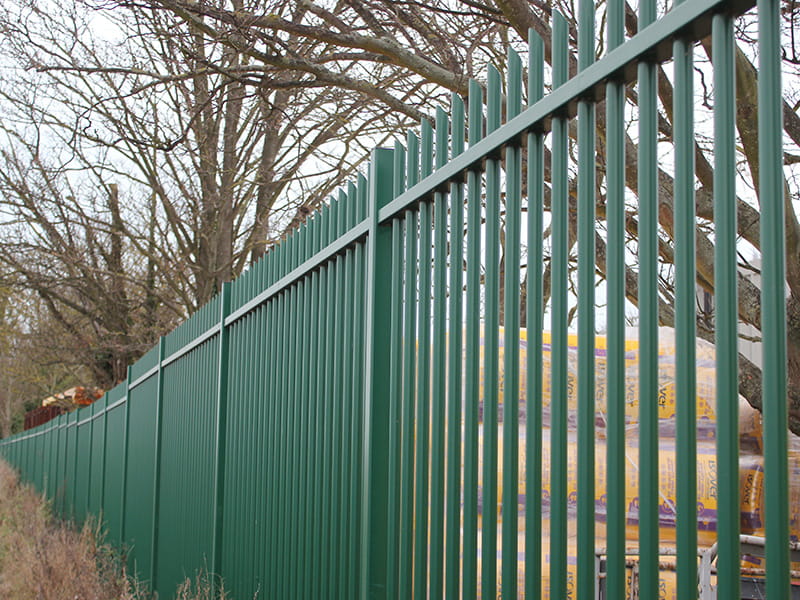

Barbican Imperial® metal fence railings comprise of vertical round hollow section 25mm diameter pales up to 2000mm high at 124mm centres (99mm gap) and 32mm for 2100m+ with 129mm centres (97mm gap). Panels under 1200mm come with flat top pales as standard, with an option of a pointed top. Panels 1500mm and above come with pales cut at 45°.
Barbican Imperial® Panel Specifications
Barbican Imperial® Panel Specification
| Height (mm) | Post Centres (mm) |
Post Dimensions (mm) |
Overall Post Length (mm) |
| 1000 | 3000 | 60 x 60 | 1600 |
| 1250 | 3000 | 60 x 60 | 1850 |
| 1500 | 3000 | 60 x 60 | 2100 |
| 1800 | 3000 | 60 x 60 | 2500 |
| 2000 | 3000 | 60 x 60 | 2800 |
| 2500 | 3000 | 80 x 60 | 3300 |
| 3000 | 2484 | 80 x 60 | 3800 |
Gates
Gates

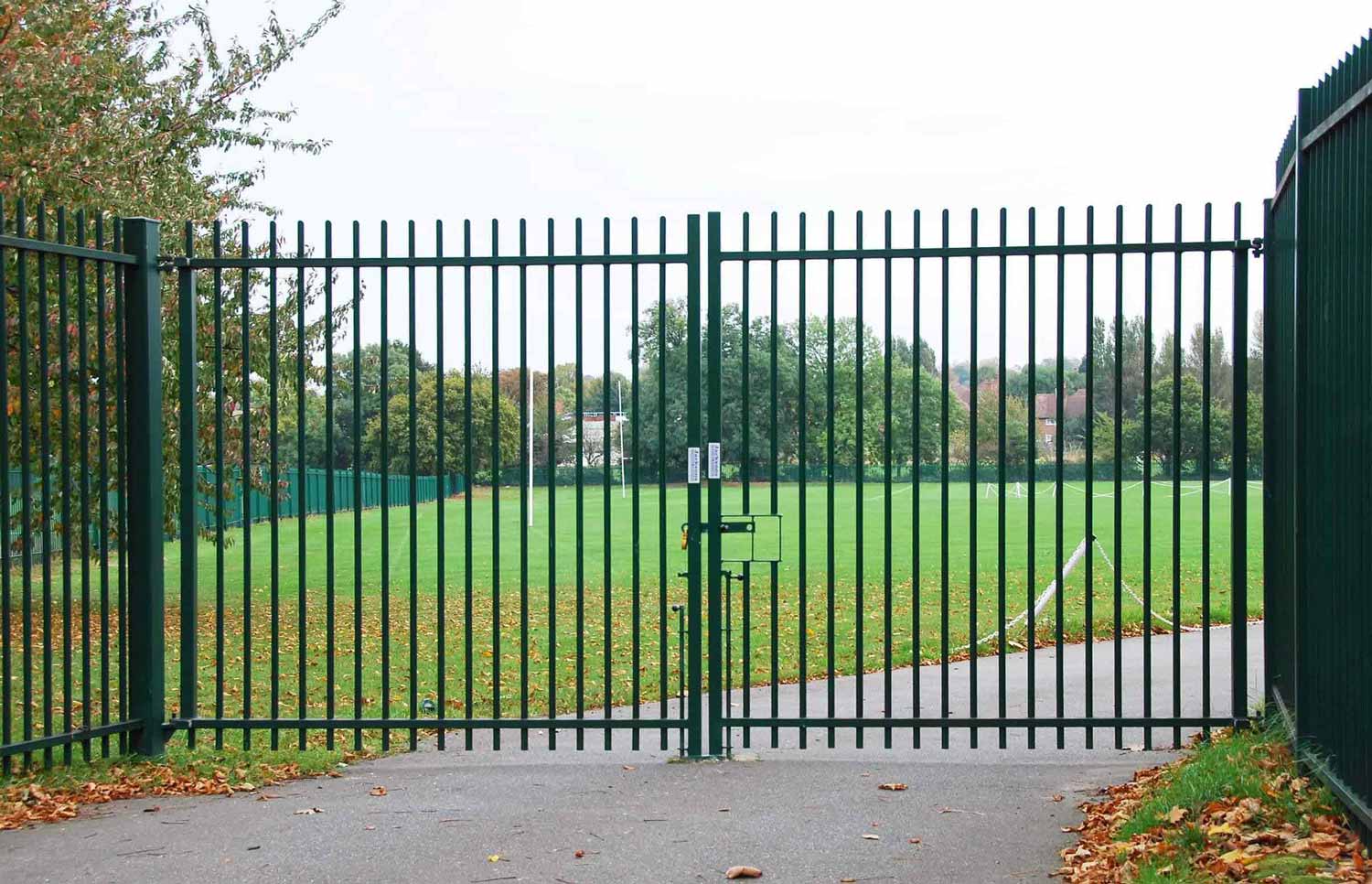

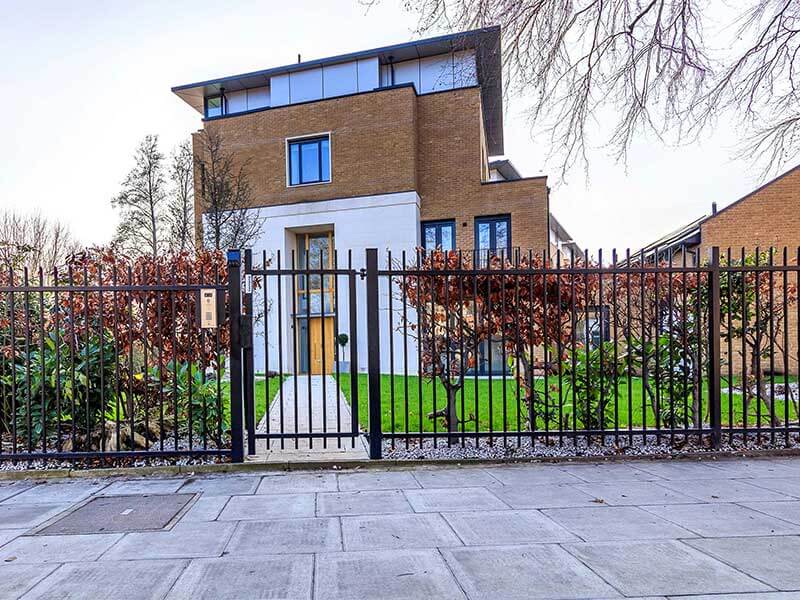

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.
Browse GatesPost Options
Standard Colours

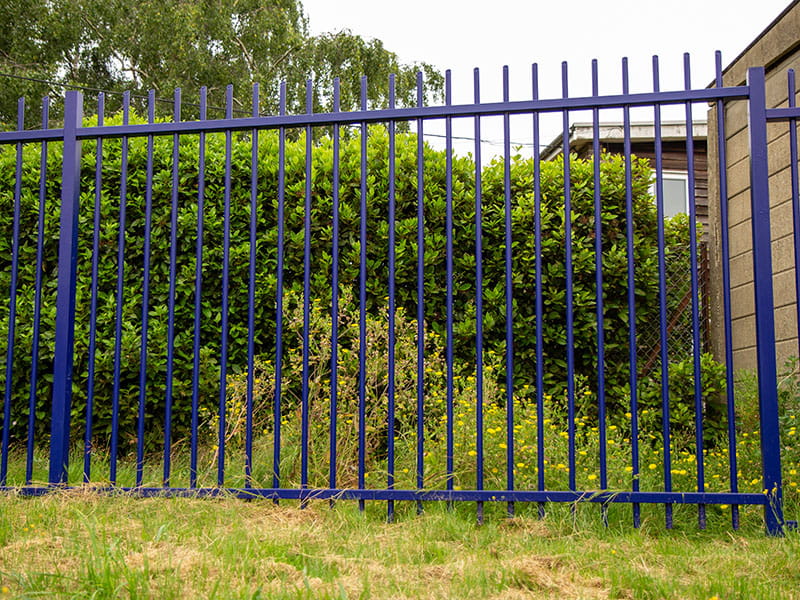

Standard powder coating colours:
Standard Finishes
Explore our finishes below
Applications
Document Downloads
Download specification documents, drawings and case studies for this product
Vertical Bar Fencing Range
We have a wide range of vertical bar fencing, all with a 25 year guarantee. Browse individual products or view the full range below.
View Range
Specify this product on NBS Source
