Lps 1175 security rated fencing

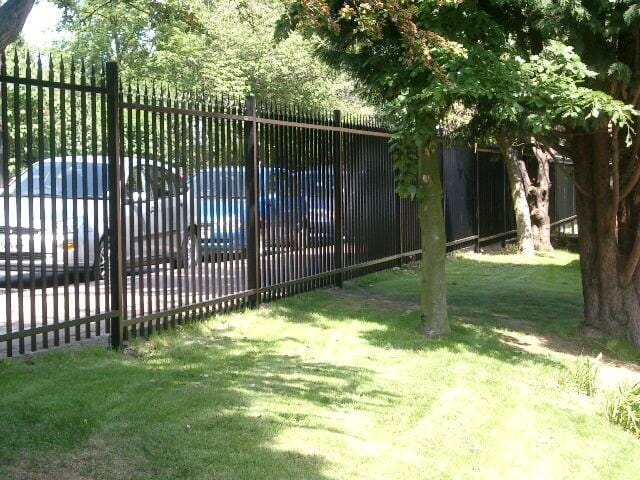

Barbican® with Finials A1 (SR1) | Security Rated Vertical Bar Fencing

The Barbican® with Finials LPS 1175 A1 security rated fencing system mimics traditional steel railing designs and features a welded pale-through-rail design which means there are no rivets to be forced or pales that can be easily removed. The horizontal rails are sleeved on to the upright post with concealed fixings to provide a seamless design that is both stylish and strong. It is ideally suited to homes, schools, offices, public spaces and places of worship or applications where a traditional fence meeting with a recognised security rating is specified.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us
Barbican SR1 Features

  • LPS 1175 A1 (SR1) approved
  • Secured by Design preferred specification
  • Fully welded pale-through-rail construction
  • Seamless, concealed rail to post fixing
  • Provides high visibility for natural surveillance
  • Anti-climb design
  • SR1 gate available



Panels

Barbican® with Finials A1 panels are up to 3000mm high and have two horizontal hollow section rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres. The tops of pales have welded Saxon finials.

Gates

A1 gates available.

Barbican® with Finials A1 Panel Specification


Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1800 3000 60 x 60 2500
2000 3000 60 x 60 2800
2500 3000 80 x 60  3300
3000 2484  80 x 60  3800

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary
  • Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
  • Document Downloads

    Download specification documents, drawings and case studies for this product

    Product

    About A1 (SR1) Fencing

    A1 fencing has been tested and certified to provide the minimum level of protection against opportunistic attacks after undergoing the LPS 1175 test devised by LPCB. During testing, our fencing withstood a 10 minute attack from Category A tools such as screwdrivers, pliers and small knives, with each tool given a maximum attack time of 1 minute, providing it with a rating of A1 under Issue 8, the equivalent of SR1 under Issue 7. Find out more and view the full product range here.
