Sports rebound welded mesh for high impact sports

EuroGuard® Rebound | Sports Mesh

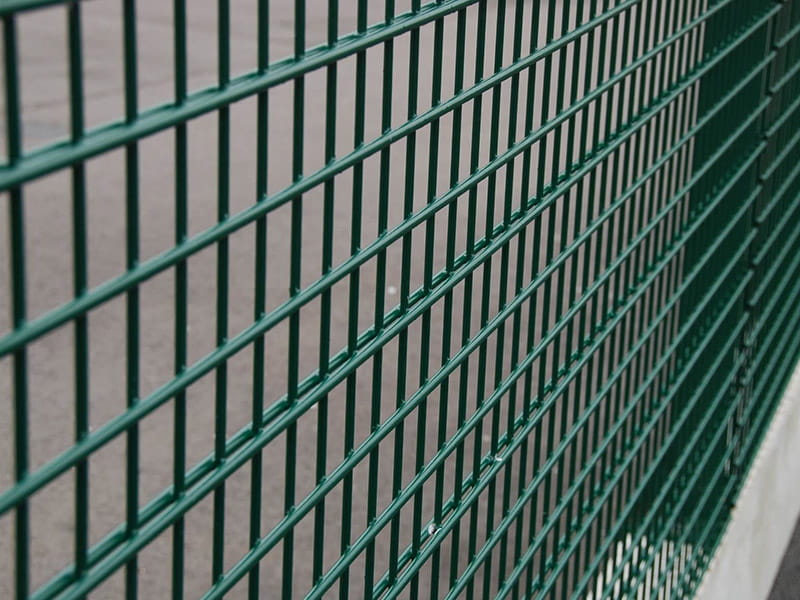

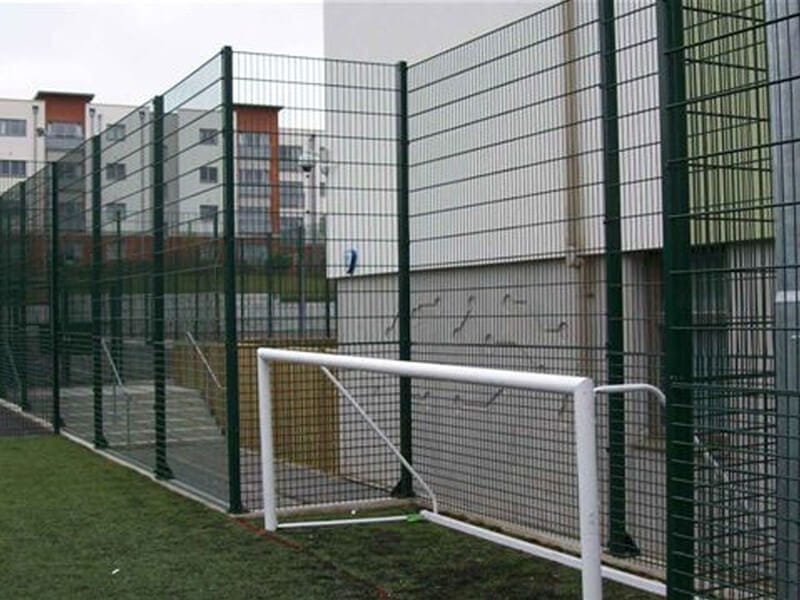

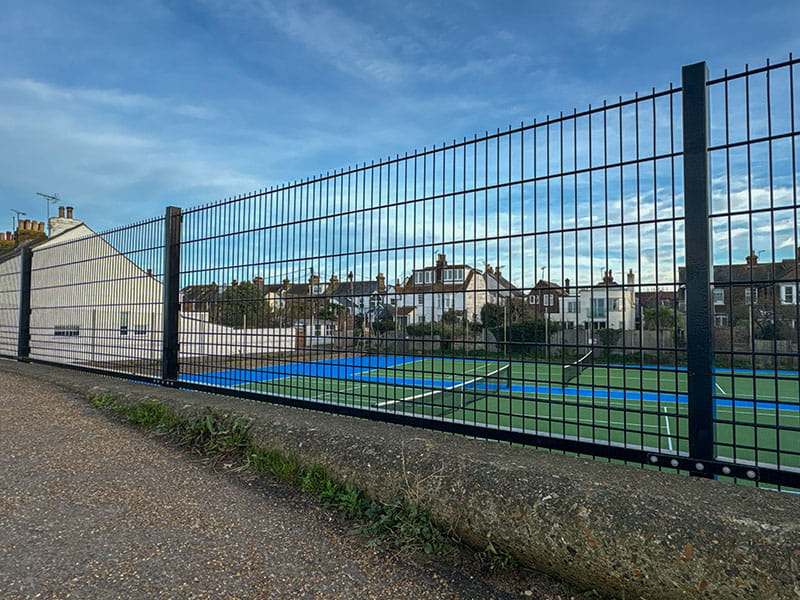

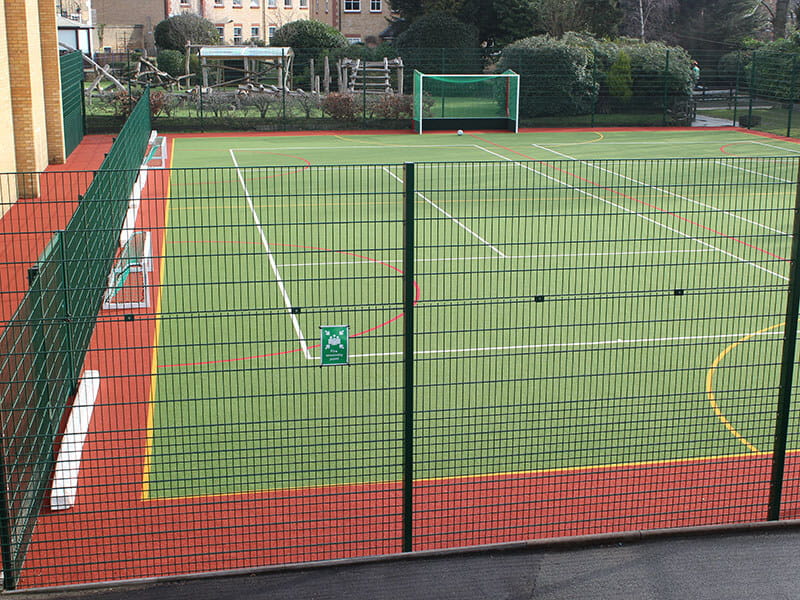

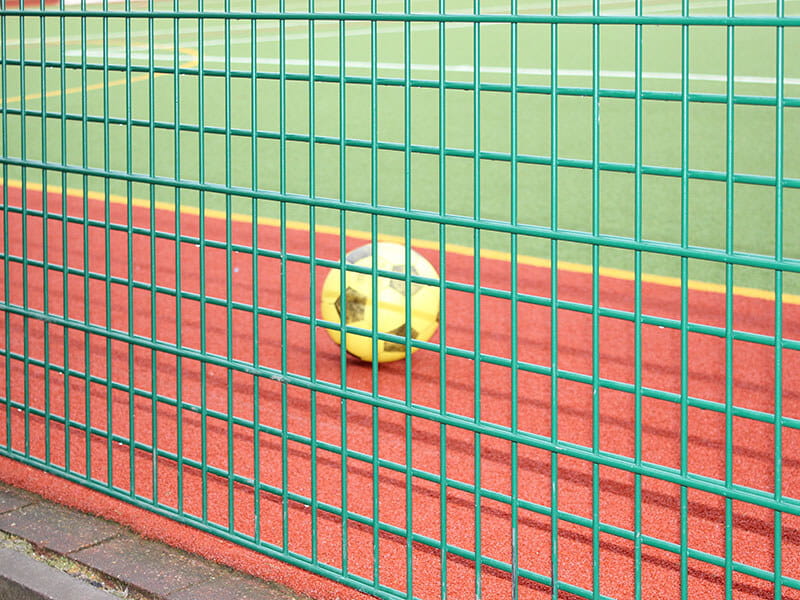

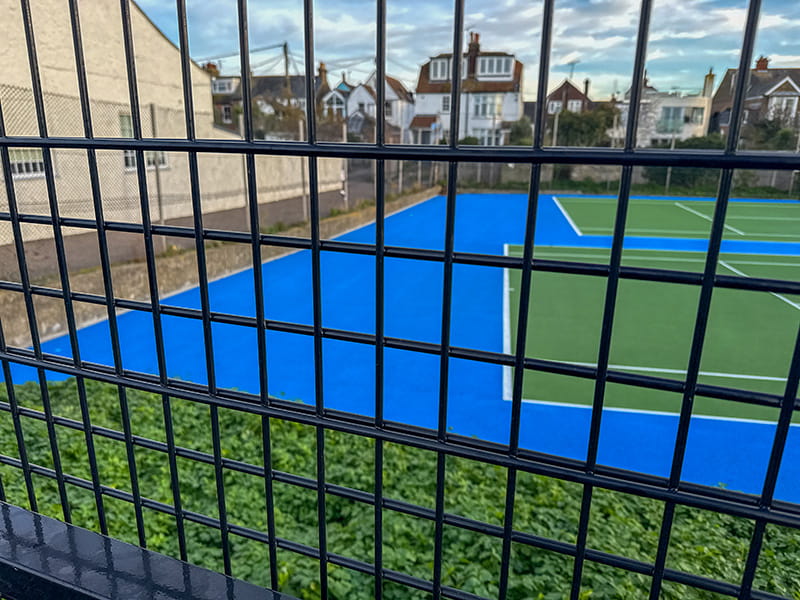

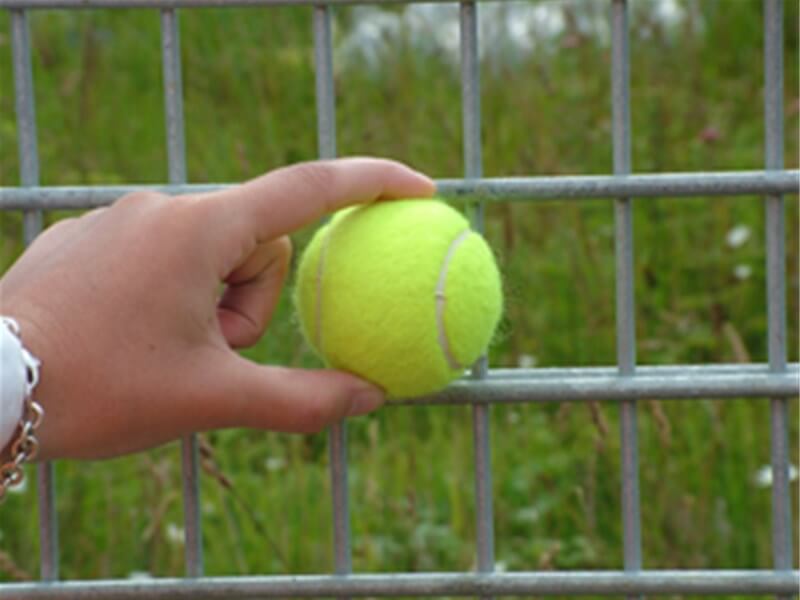

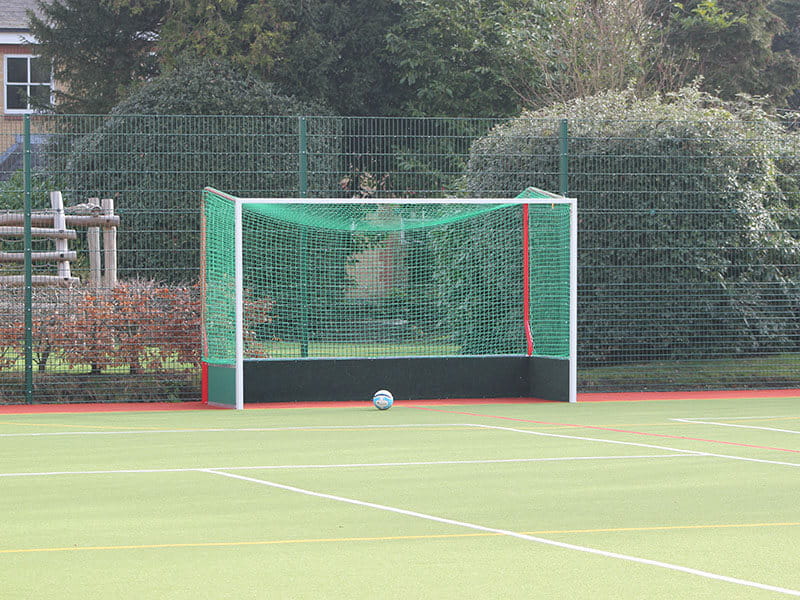

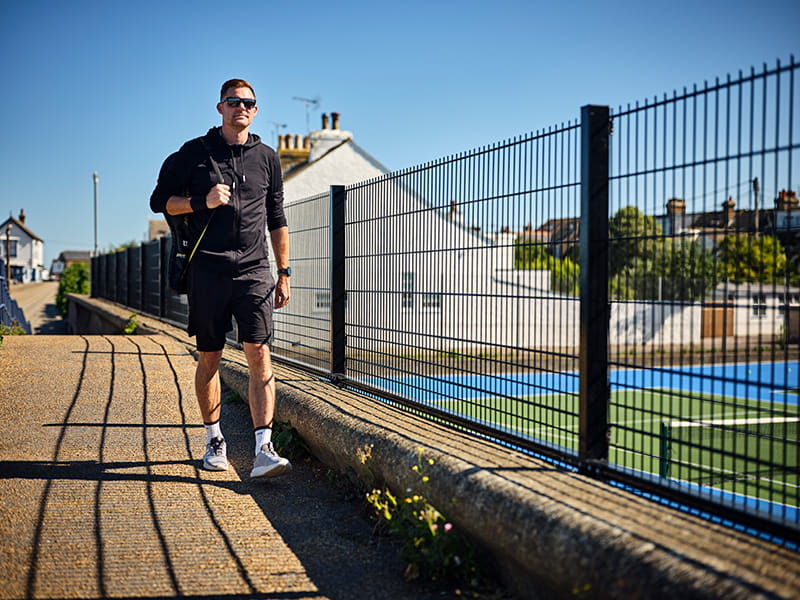

Jacksons EuroGuard® Rebound Fencing is an alternative to Chain Link Fencing, for high usage courts. The double wire gives Rebound more rigidity and reduces the vibration along the fence line and also capable of withstanding high impact sports i.e hockey or football. The mesh's aperture is small enough to prevent sports balls from escaping, but still allows the spectator to have an unobscured view.

To special order: Specifically for use in sports enclosures as rebound fencing and featuring double horizontal wires at lower level for long life and playability. Mesh aperture of 50mm x 66mm for the first 1230mm of height and 50mm x 200mm for the remainder of the panel to 2.03m high.

25 year service life guarantee

Rebound correspond(s) to the generic component/material "welded mesh" in the BRE Global Guide online generic specification(s) "Galvanised weld mesh fencing with metal posts" which achieve(s) a summary rating of A within commercial, domestic, residential, health, industrial, education.

Rebound correspond(s) to the generic component/material "weld mesh" in the BRE Global Guide online generic specification(s) "Plastic coated weld mesh fencing with metal posts" which achieve(s) a summary rating of A within commercial, domestic, residential, health, industrial, education.

Rebound Welded Mesh Features

  • Can be stepped to accommodate sloping ground
  • Post can be adapted to mount CCTV cameras, lighting or physical security devices
  • Matching single leaf and double leaf gates available

Gates

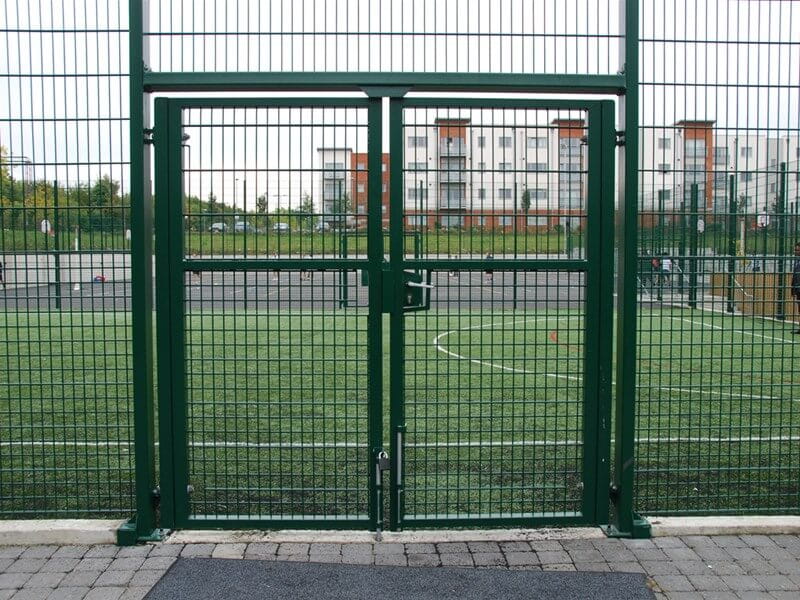

Matching single leaf and double leaf gates available.

Panels

50 x 66.6mm mesh at the base to 1200mm then reverts to 200 x 50mm above up to 2030mm. Posts 80 x 60mm subject to height of fence

EuroGuard® Rebound Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
2030* 3010 80 x 60 2800

*Mesh panels can be stacked up to 6m with posts designed to suit application

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes

  • Panels are Galfan® zinc alloy coated as standard
  • Powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary
  • Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
  • Document Downloads

    Download specification documents, drawings and case studies for this product
