LPS 1175 Security Rated welded mesh panels

UHS Extreme Mesh (SR3) | Security Rated Fencing

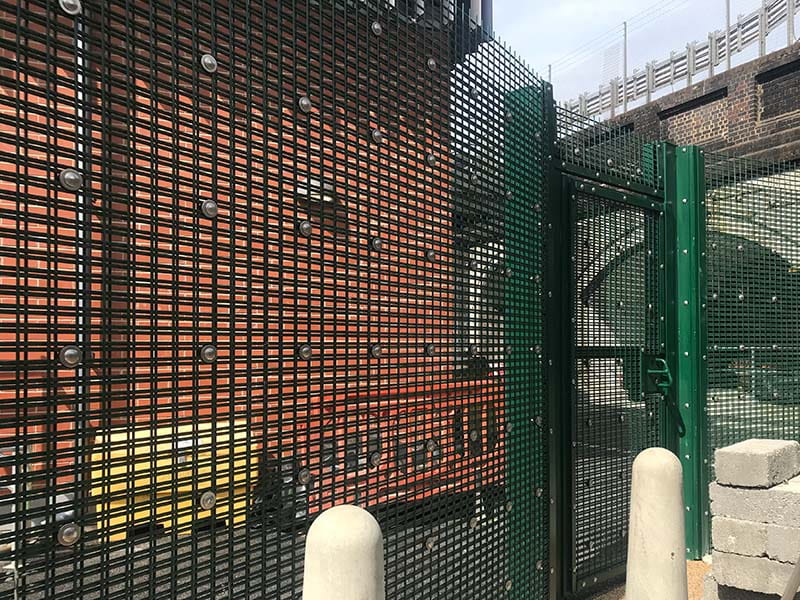

UHS Extreme Mesh has been designed and tested to withstand forced entry using tools which include battery power tools. The SR3 rated mesh system is constructed from double skinned mesh providing a high level of security. The fencing and gate system has been developed to meet with demands to give a robust level of security against attempts at forced entry around high security applications.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

UHS Extreme Mesh SR3 Features

  • LPS 1175 SR3 approved
  • Heavy gauge wire welded mesh security fencing system
  • Double skinned - providing a high level of security
  • Designed to be used in high security applications
  • Stainless steel fixings
  • Secured by Design preferred specification
  • Anti-climb design

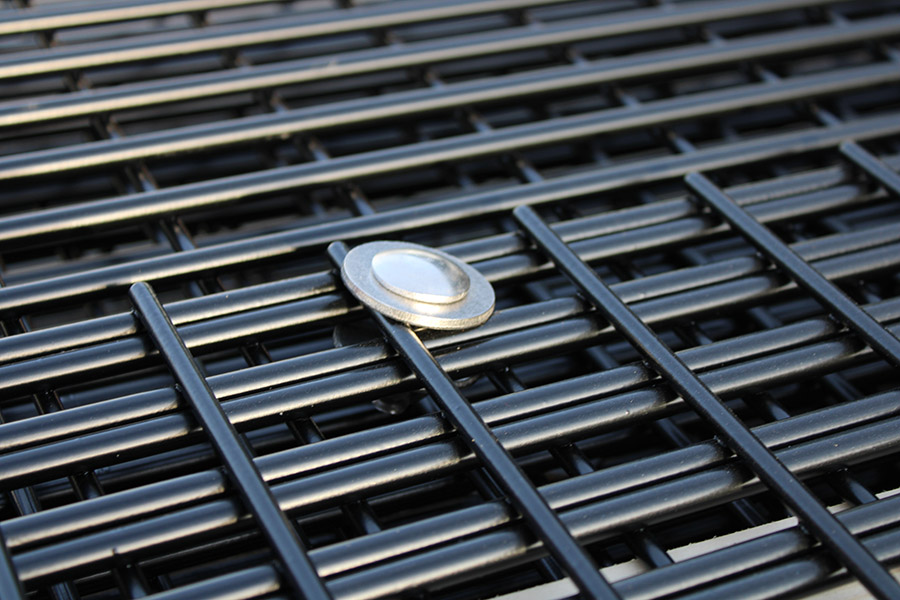

  • Double 50 x 30mm mesh - creating a smaller aperture
  • Matching gates available



LPCB product page logo banner

Standard Finishes

  • Mesh panels are galvanised to BS EN 1461:2009 as standard
  • Optional powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary
  • UHS Extreme Mesh SR3 Panel Specification

    Height (mm) Post Centres (mm)
    2431 2505
    3031 2505

    Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Gates

    Matching gates available

    Comparison tool list

    Compare this product

    Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

    Redbook Live Certificates

    View and download certificates for this product on RedBook Live.

    Gates A1 1.8-3m high

    Gates B1 1.8-4m high

    FencingGates SR3 2.4m high
    Mesh-Fence

    About SR3 Fencing

    SR3 fencing has been tested and certified to provide protection against more determined opportunistic attacks after undergoing the LPS 1175 test devised by LPCB. During testing, our fencing had to delay several attacks using category 3 tools such as a short axe, chisel, gas torch, and crow bar, each lasting at least 5 minutes, providing it with a rating of SR3 under Issue 7. Find out more about the range here.

    Document Downloads

    Download specification documents, drawings and case studies for this product
