LPS 1175 Security Rated Vertical Bar Fencing

Barbican® Imperial SR1 | Security Fencing

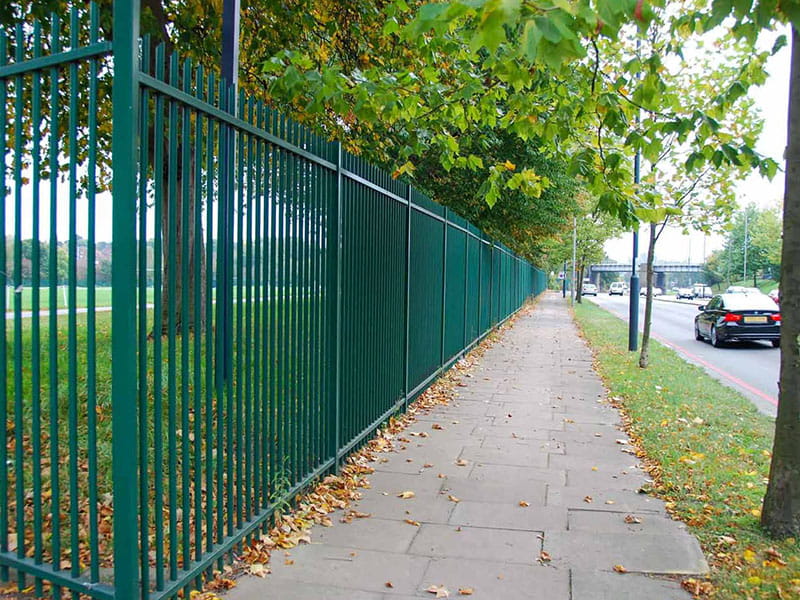

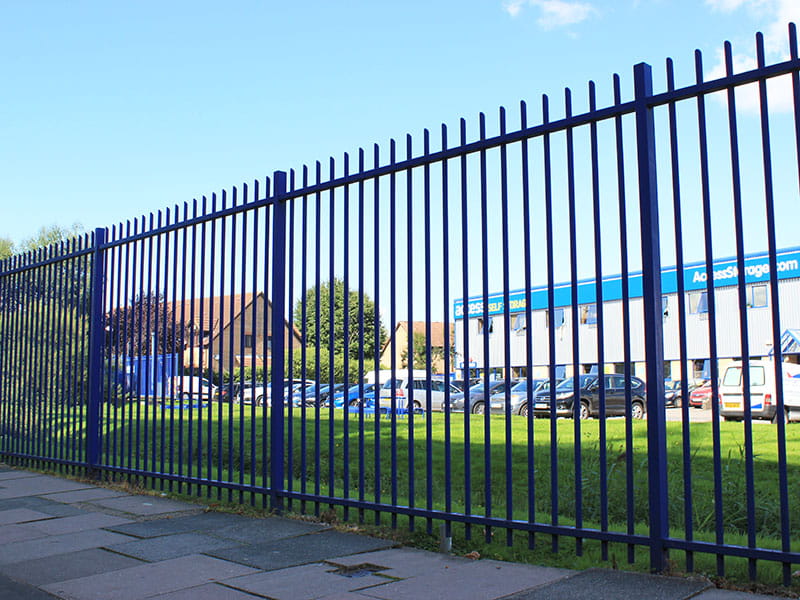

Barbican® Imperial LPS 1175 SR1 system of fencing and gates feature a welded pale-through-rail construction for strength and security integrity. The horizontal railed are sleeved on to the upright posts with concealed fixings to provide timeless design suitable for most settings.



25 year service life guarantee

Barbican Imperial SR1 Features

  • LPS 1175 A1 (SR1) approved
  • Secured by Design preferred specification
  • Fully welded pale-through-rail construction
  • Seamless, concealed rail to post fixing
  • Anti-climb design



Panels

Barbican® Imperial SR1 has vertical round hollow sections 32mm diameter pales up to 2000mm high at 129mm centres and 32mm for 2100mm+ with 129mm centres which complies to Building Regulations.

Gates

SR1 gates available

Barbican® Imperial SR1 Panel Specifications


Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1800 3000 80 x 60 2500
2000 3000 80 x 60 2800
2500 3000 80 x 60  3300
3000 2484  80 x 60  3800

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting

Standard Finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary

Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request

Document Downloads

Download specification documents, drawings and case studies for this product
