Double horizontal wire welded mesh panel

EuroGuard® Flatform | Welded Mesh Panel

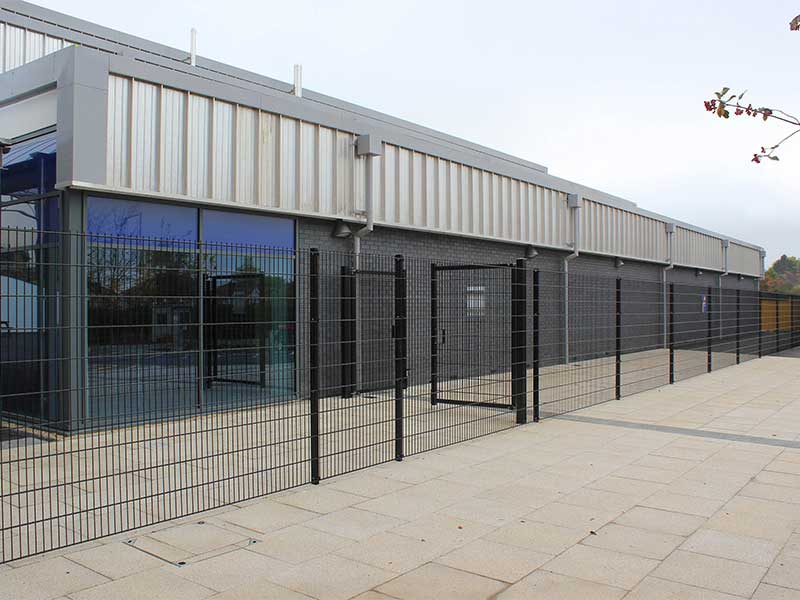

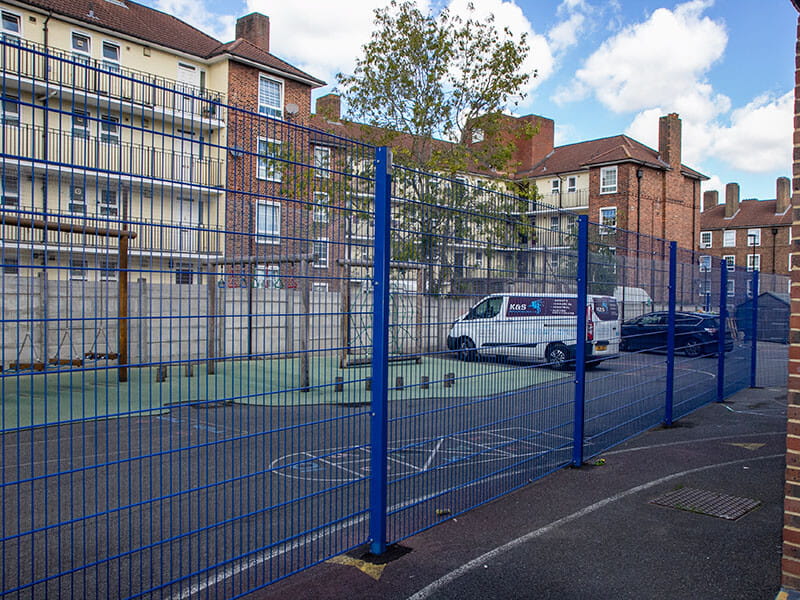

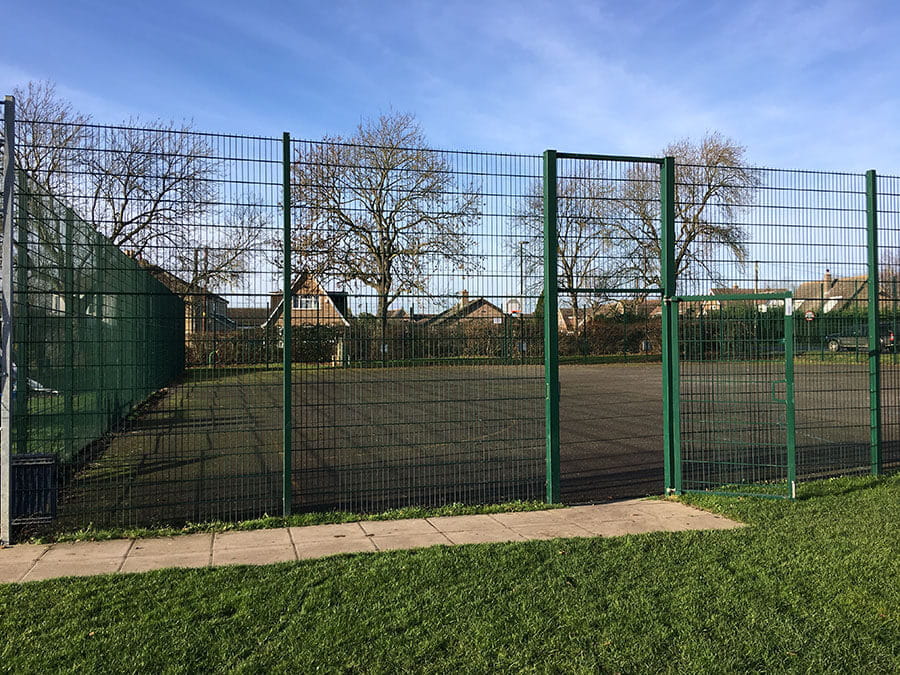

EuroGuard® Flatform panels are also known as 656 or 868 mesh panels and have a flat profile with horizontal twin wire. They are ideal for commercial sites, schools, play areas, or similar installations; anywhere durability and security are important. Panels are available in a medium or heavy mesh and can be stacked above one another to give a 6000mm high fence.

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

EuroGuard® Flatform Features

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®/ Alarm-aFence®
  • Medium and heavy gauge mesh available
  • Medium mesh 200 x 50mm with 6mm horizontal wires and 5mm vertical wires (wire measured prior to coating)
  • Heavy mesh 200 x 50mm with 8mm horizontal wires and 6mm vertical wires (wire measured prior to coating)
  • Anti-climb design
  • Twin wire mesh panels also known as 656 or 868 mesh
  • Unique vandal-proof panel to post fixings
  • Galfan zinc alloy coated
  • Can be stepped to accommodate sloping ground

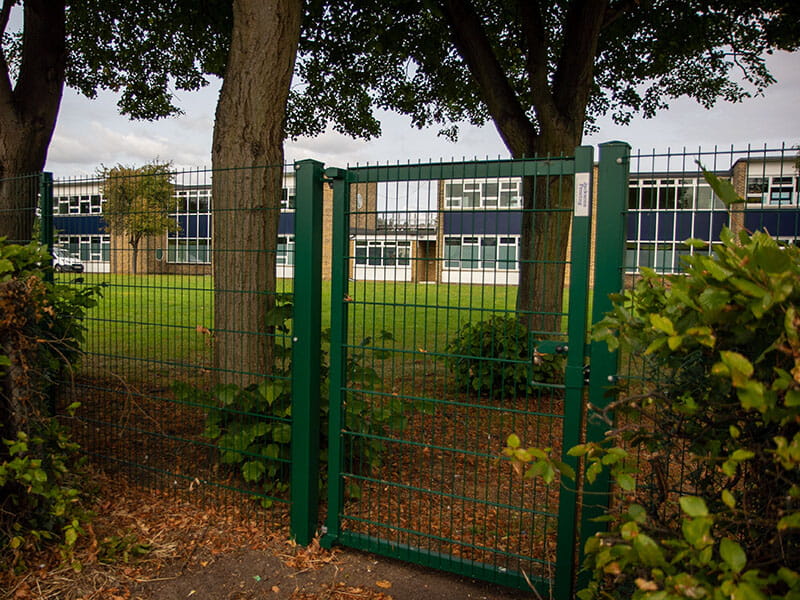

  • Matching single leaf and double leaf gates available

Product page logo banner no sbd

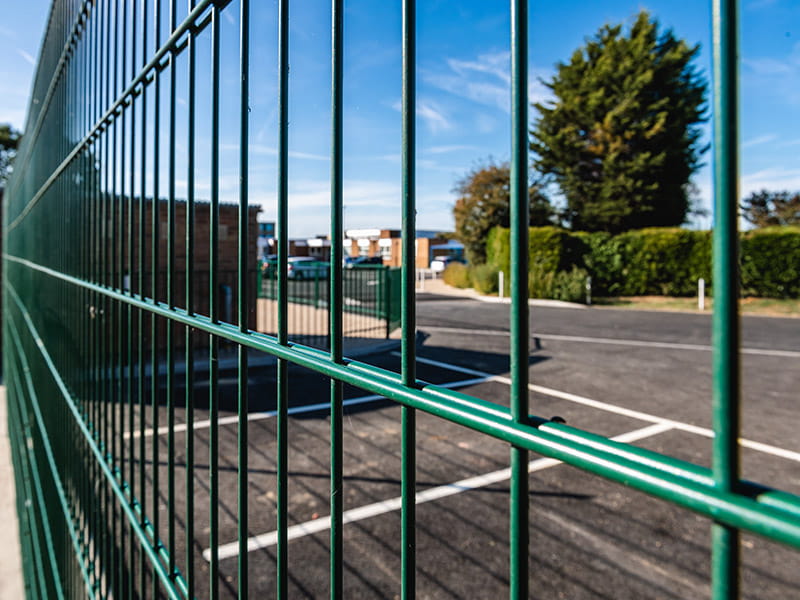

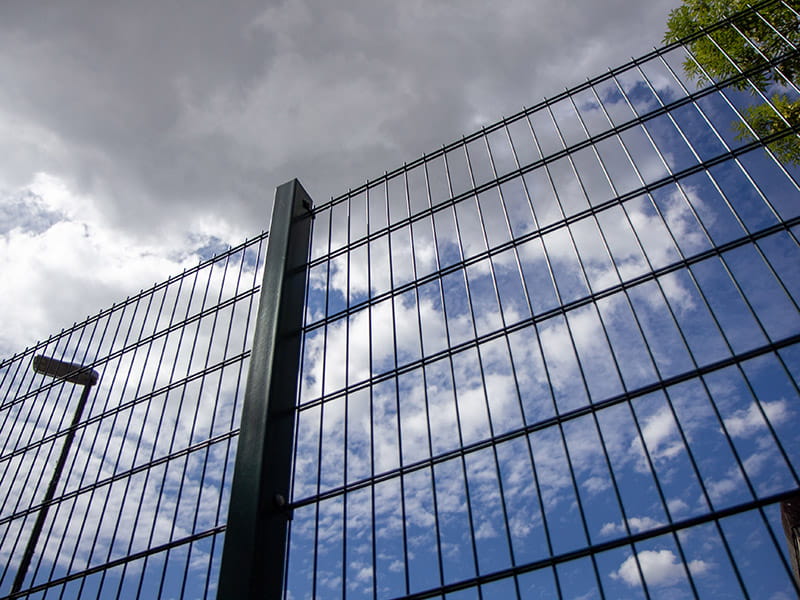

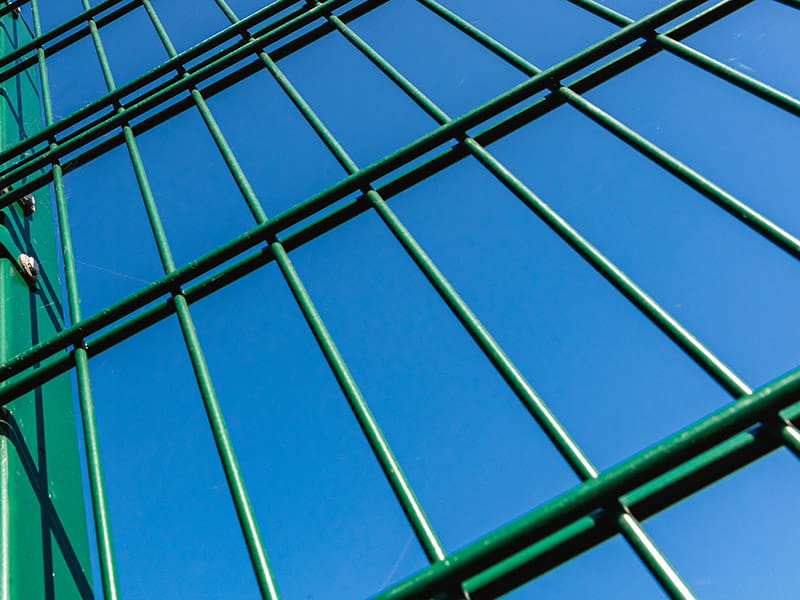

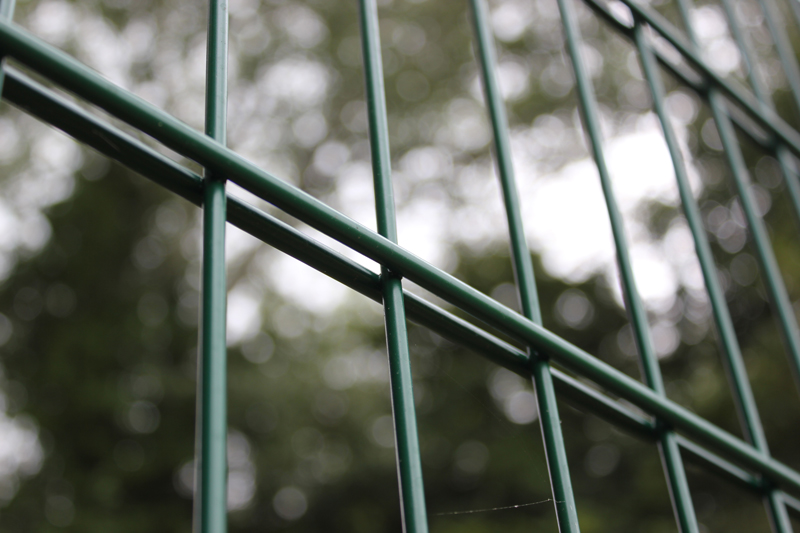

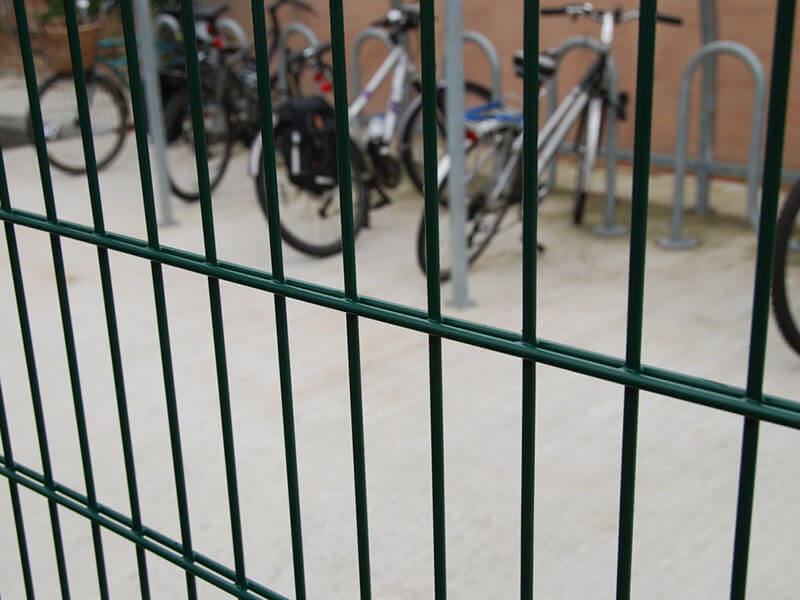

Mesh panels have a flat profile with double horizontal wires, welded at intersections which are Galfan zinc alloy treated as standard

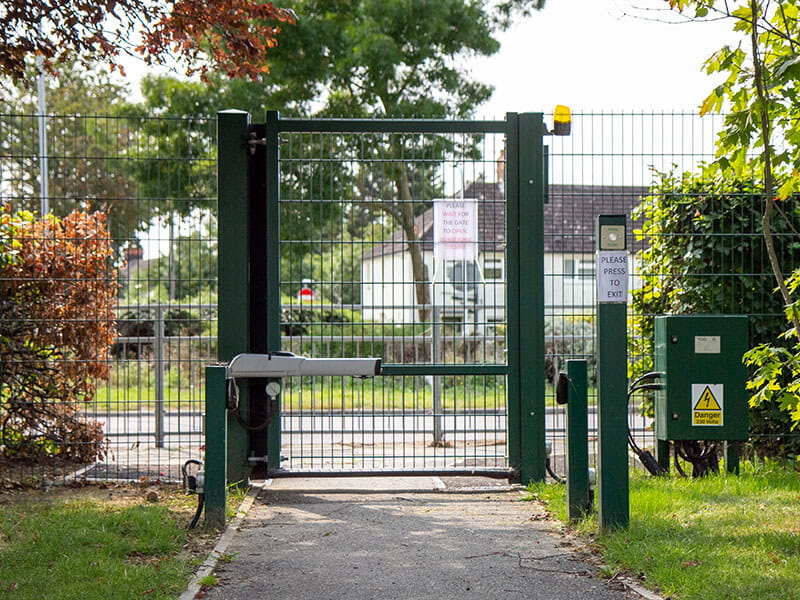

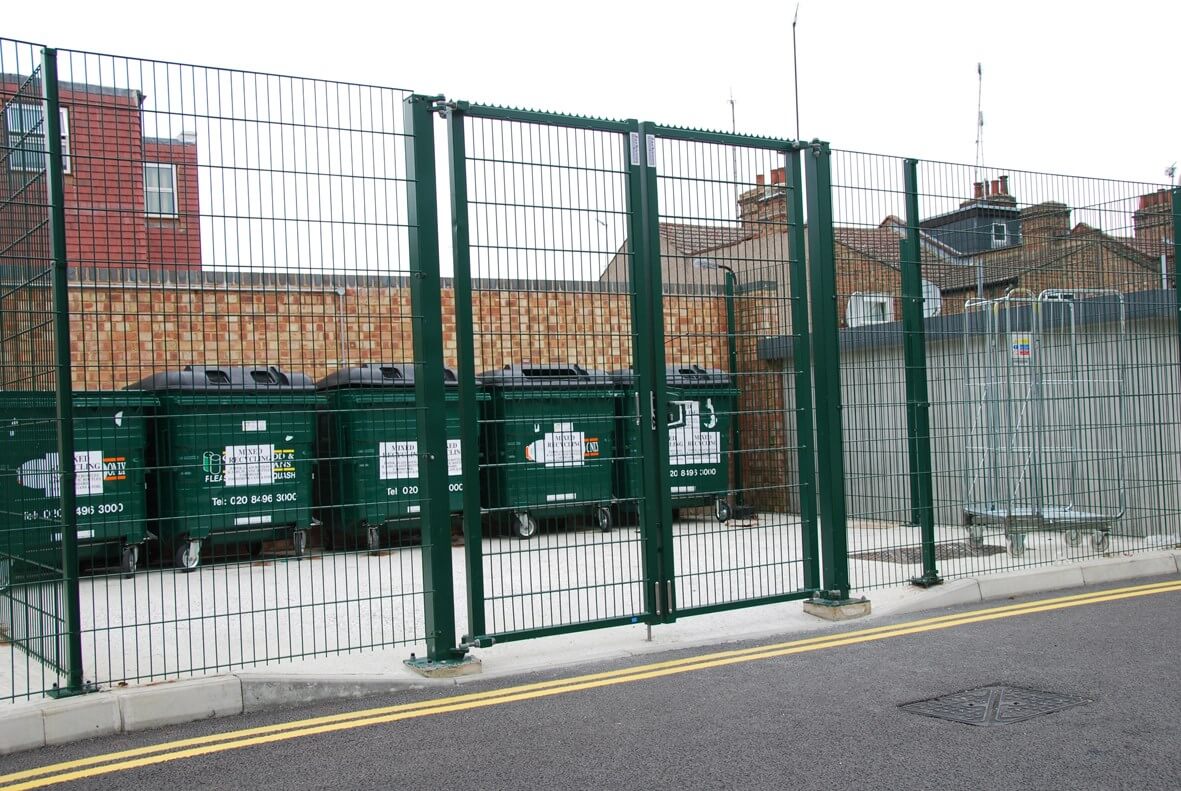

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates

EuroGuard® Flatform Panel Specifications

Height (mm) Post Centres (mm)
Medium Heavy
Post Dimensions (mm)  Overall Post Length (mm)
1030 3034

 60 x 40 1600
1230 3034
   60 x 40 1800
1830  3034  •     60 x 40 2500
2030 3034  •   •  60 x 40 2800
2430  3034  •   •  80 x 60 3300

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Comparison tool list

    Compare this product

    Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

    Standard Finishes
  • Panels are Galfan® zinc alloy coated
  • Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Galvanised and powder coated to non standard BS or RAL to special order
  • Marine coat for installations within 500m of salt water or an estuary
  • Explore our finishes


    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing
    Mesh Security Fencing Clips

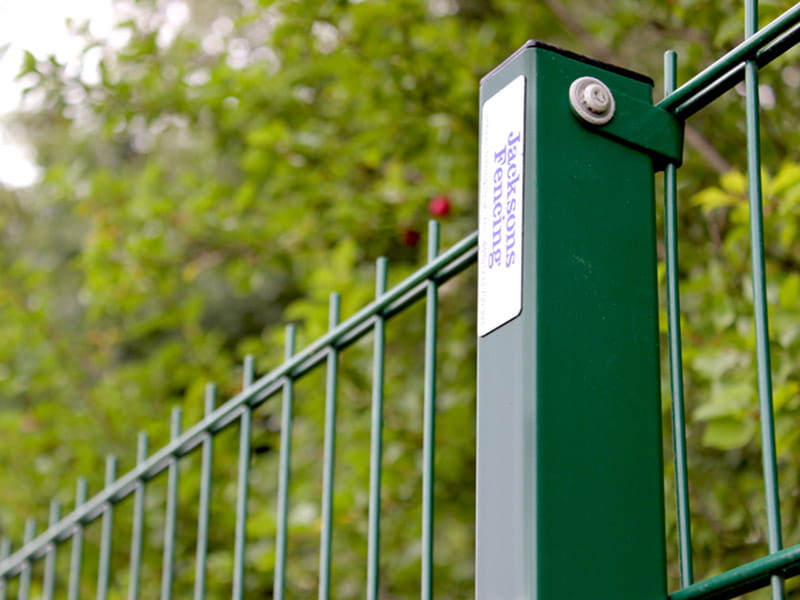

    Our EuroGuard® range features unique panel to post connectors with tamper proof fixings which can only be reached from inside the fence line, while generic mesh clips are installed on the outside of the fence line and generally use standard torx screws that can be removed using a standard DIY toolkit. Find out more in the video below.

    Document Downloads

    Download specification documents, drawings and case studies for this product

    Welded Mesh Panel Range

    We have a wide range of welded mesh panels, all with a 25 year guarantee. Browse individual products or view the full range below.

    View Range
