Square pale security fencing with anti climb topping

Barbican® Extra | Security Fencing

Barbican® Extra security panels are identical to standard Barbican® panels, but with an important difference - the additional pales through the top rail that ensure even the smallest hand or foot cannot gain purchase making it virtually impossible to climb or scale.

Barbican® Extra correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.

25 year service life guarantee

Barbican Features

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®
  • Vertical pale spacing conforms to building regulations for anti-trap
  • Unique vandal-proof panel to post connectors
  • Panels can be manufactured to accommodate sloping ground
  • Anti climb design
  • Matching single leaf and double leaf gates available

Panels

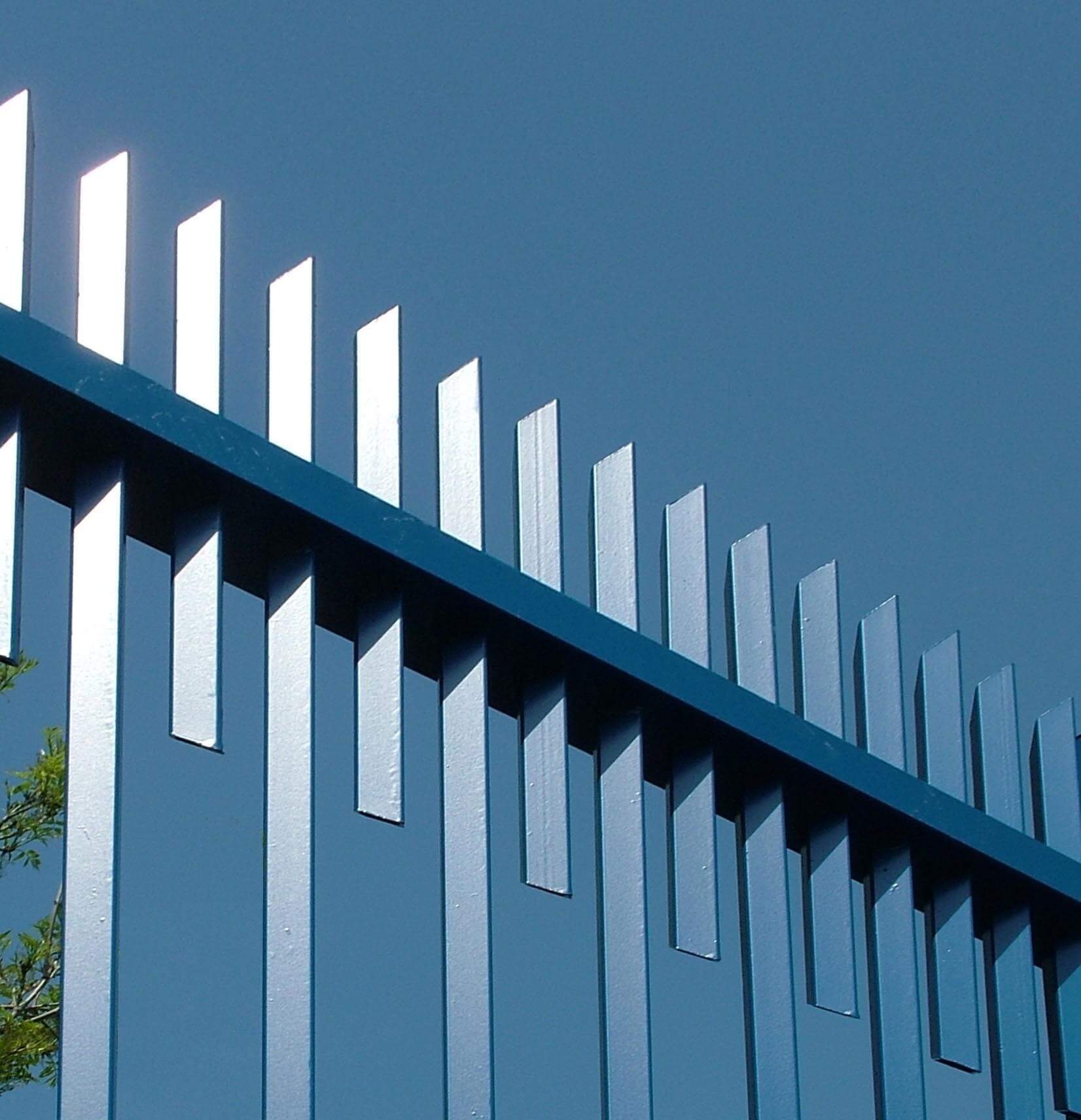

Barbican® Extra panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres, with additional pales through top rail and between each full pale.

Gates

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates

Barbican® Extra Panel Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
2250 2484 80 x 60 3050
2500  2484 80 x 60  3300
3000  2484  80 x 60  3800

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary
  • Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
  • Vertical Bar Fencing Range

    We have a wide range of vertical bar fencing, all with a 25 year guarantee. Browse individual products or view the full range below.
