Boundary netting system for a variety of sporting applications

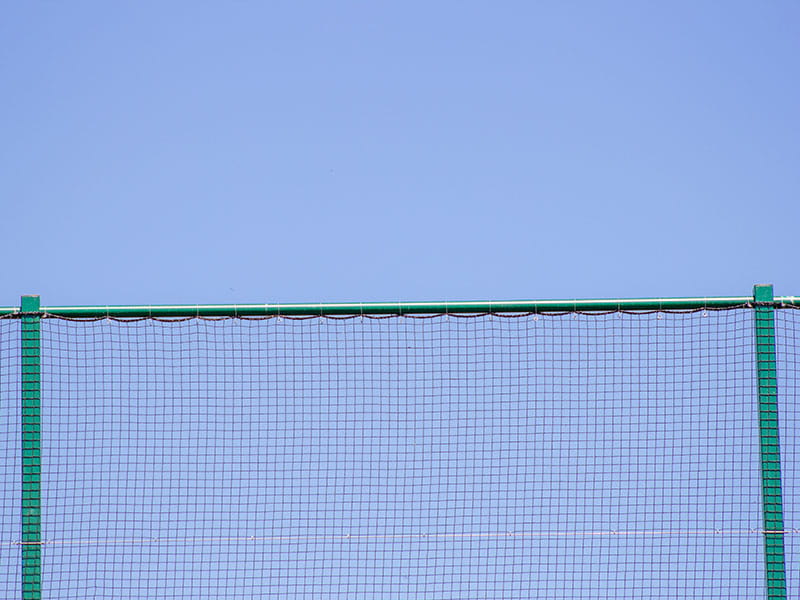

Ball Stop Netting | Sports Netting

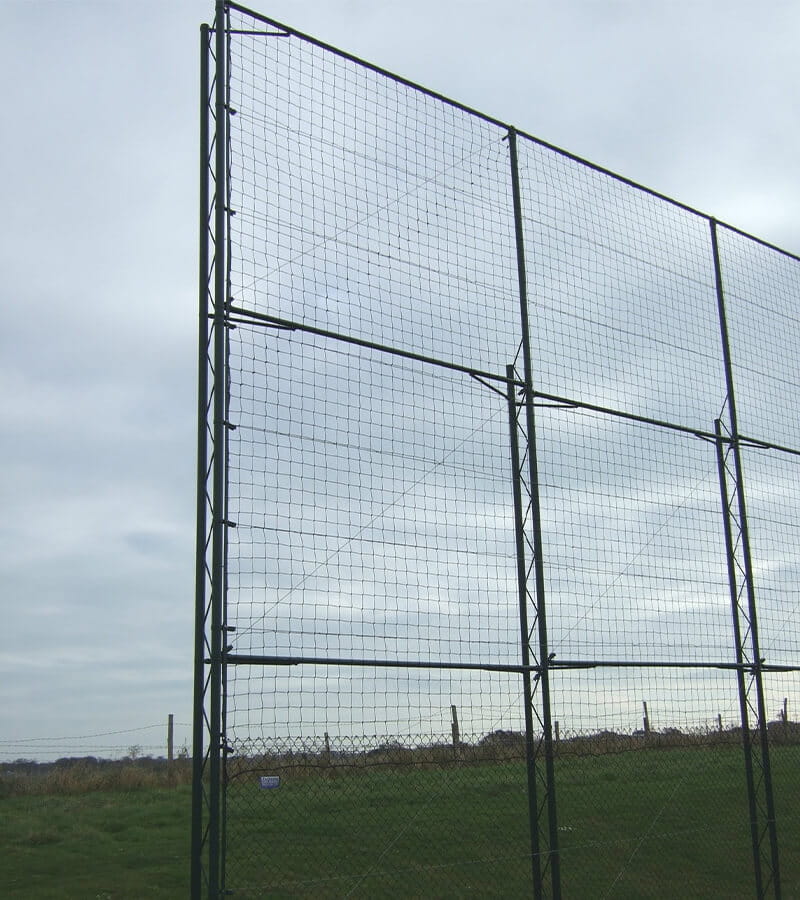

Jacksons was the first to develop the double lattice post design for our ball stop fencing in 1994, which provided a structure strong enough to allow sports webbing/mesh to remain in place thought-out the year. While many have imitated the design, none have bettered it. That's because we prioritise use of the best materials in our proven design, including our top rail for extra rigidity to ensure durability and safety for both users and the public.

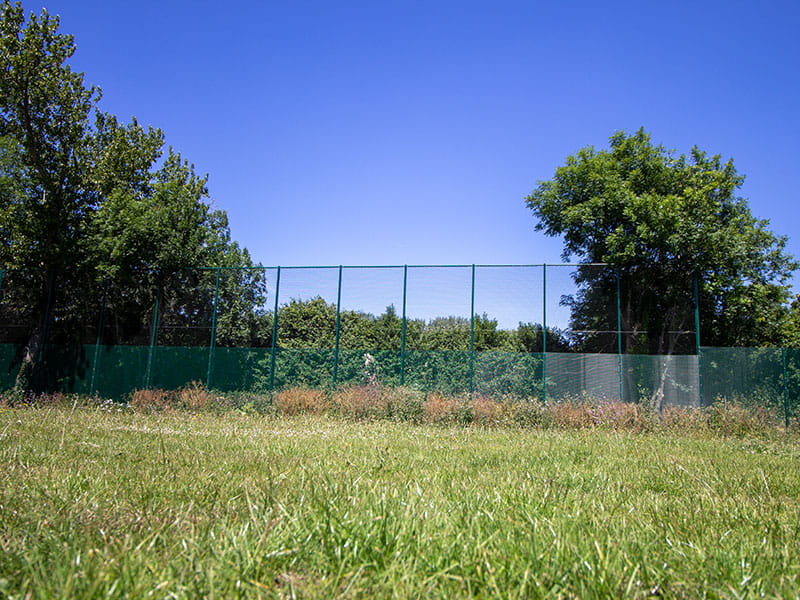

By installing ball stop fencing, it can reduce the risk of injury to others or trespassing on neighboring land to retrieve lost balls, still allowing a clear visibility whilst acting as an all purpose sports safety barrier. This product is ideal for perimeter cricket and golf boundary netting.

25 year service life guarantee

Ball Stop Fencing Features

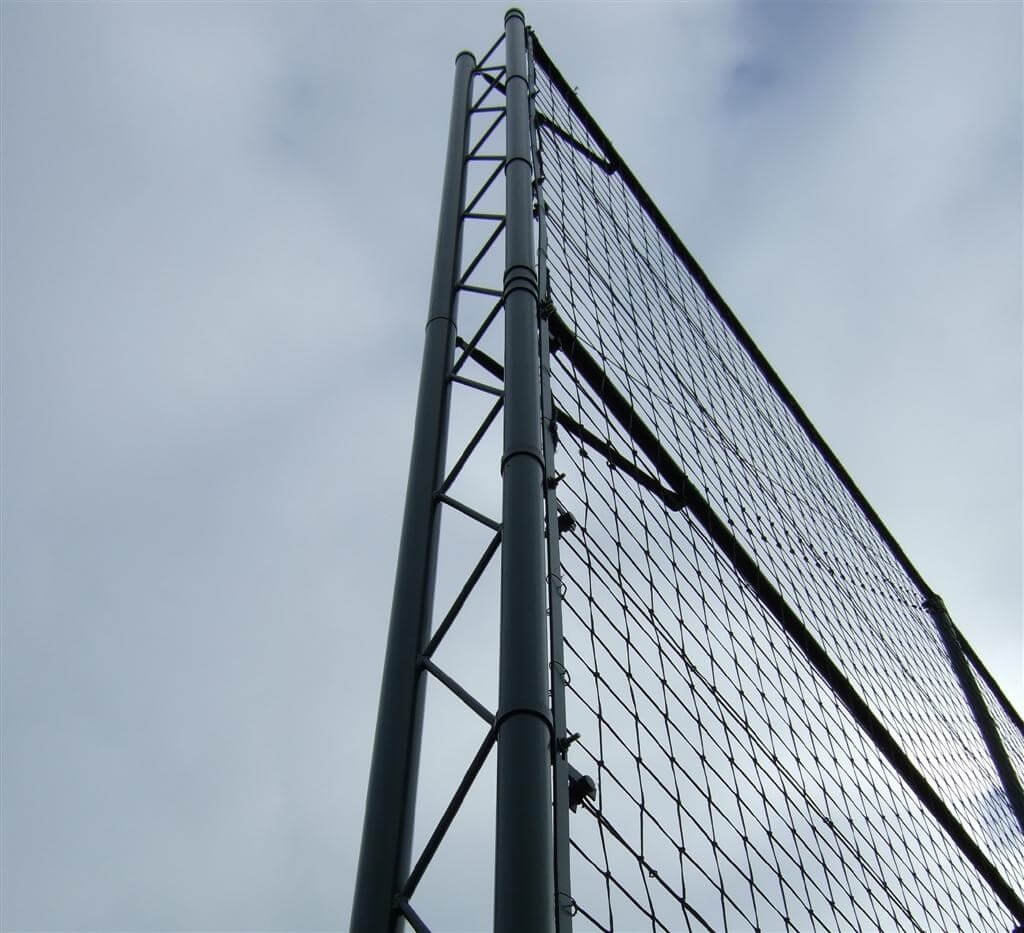

  • Extra strength lattice posts
  • Top rail as standard
  • Hollow tubular construction
  • Strong, stable and safe structure even in higher wind loading situations
  • Wide range of webbing and mesh types available to suit different applications
  • Universal frame for various applications from a rugby pitch to golf driving range
  • Gates are available as either single or double leaf gates with the option of manual or automated, swing or sliding operation.

Gates

Matching single leaf and double leaf gates available.

Mesh Options

  • Polyethylene netting
  • Chain link - Galvanised / Black or Green PVC Coated
  • Welded mesh - Galvanised / Black or Green PVC Coated

Ball Stop Netting Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length* (mm)
4000 3000 60.3 Ø 4150
5000 3000  60.3 Ø 5150
6000  3000  60.3 Ø 6150
7000  3000  60.3 Ø  7150
8000  3000  60.3 Ø  8150
9000  3000  60.3 Ø  9150

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting

Standard Finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary

Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
