Anti-Climb Prison mesh

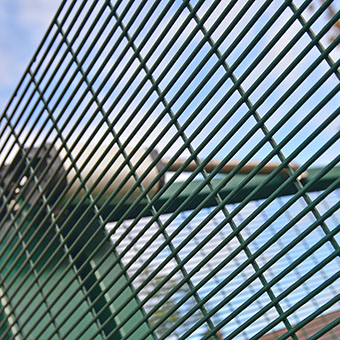

358 Securi-Mesh® Plus | Double Layer Mesh Fencing

Where the application specifically demands a close mesh design to meet specifications, our Securi-Mesh Plus fencing system provides an ideal solution for a wide variety of high security perimeter and access control applications.

The climb resistant double layer mesh (exceeds Home Office specifications for use in prisons) with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand and portable power cutting tools.

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

Securi-Mesh Features

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®
  • Overlapped by a minimum of 75mm at posts to maintain integrity of protection
  • Clamp bar fixings
  • Can be stepped to accommodate sloping ground
  • Anti climb design
  • Custom designs available
  • Matching single leaf and double leaf gates available
  • Premium zinc alloy coating

Product page logo banner no sbd

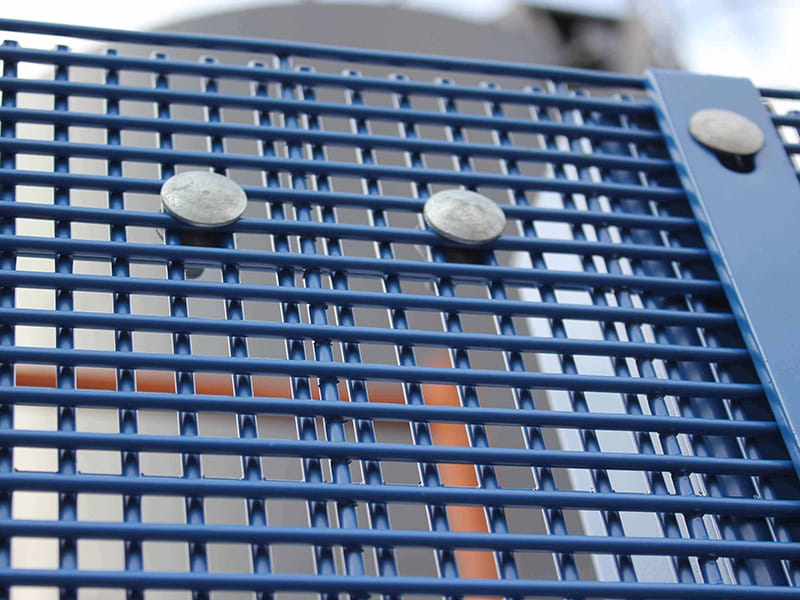

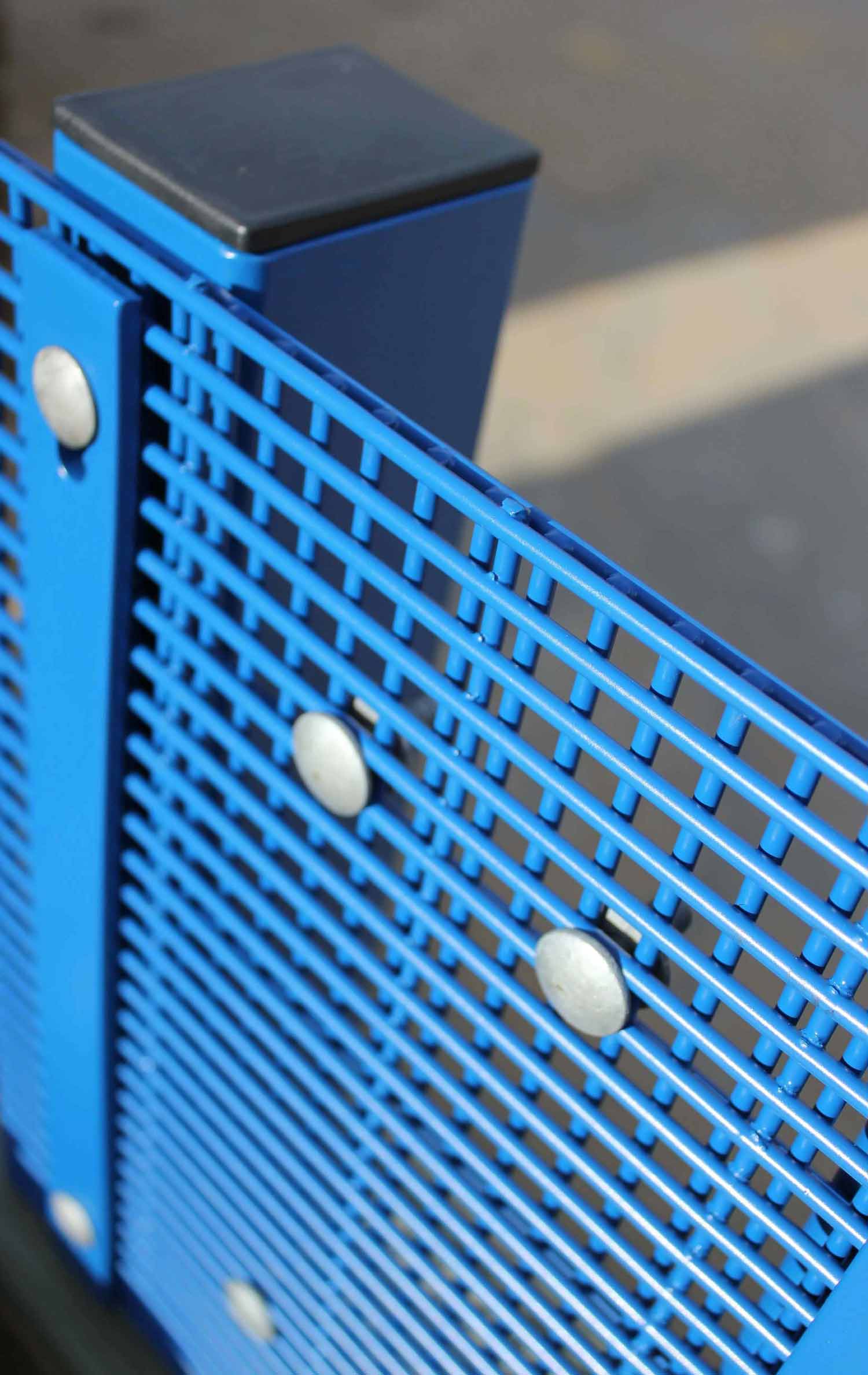

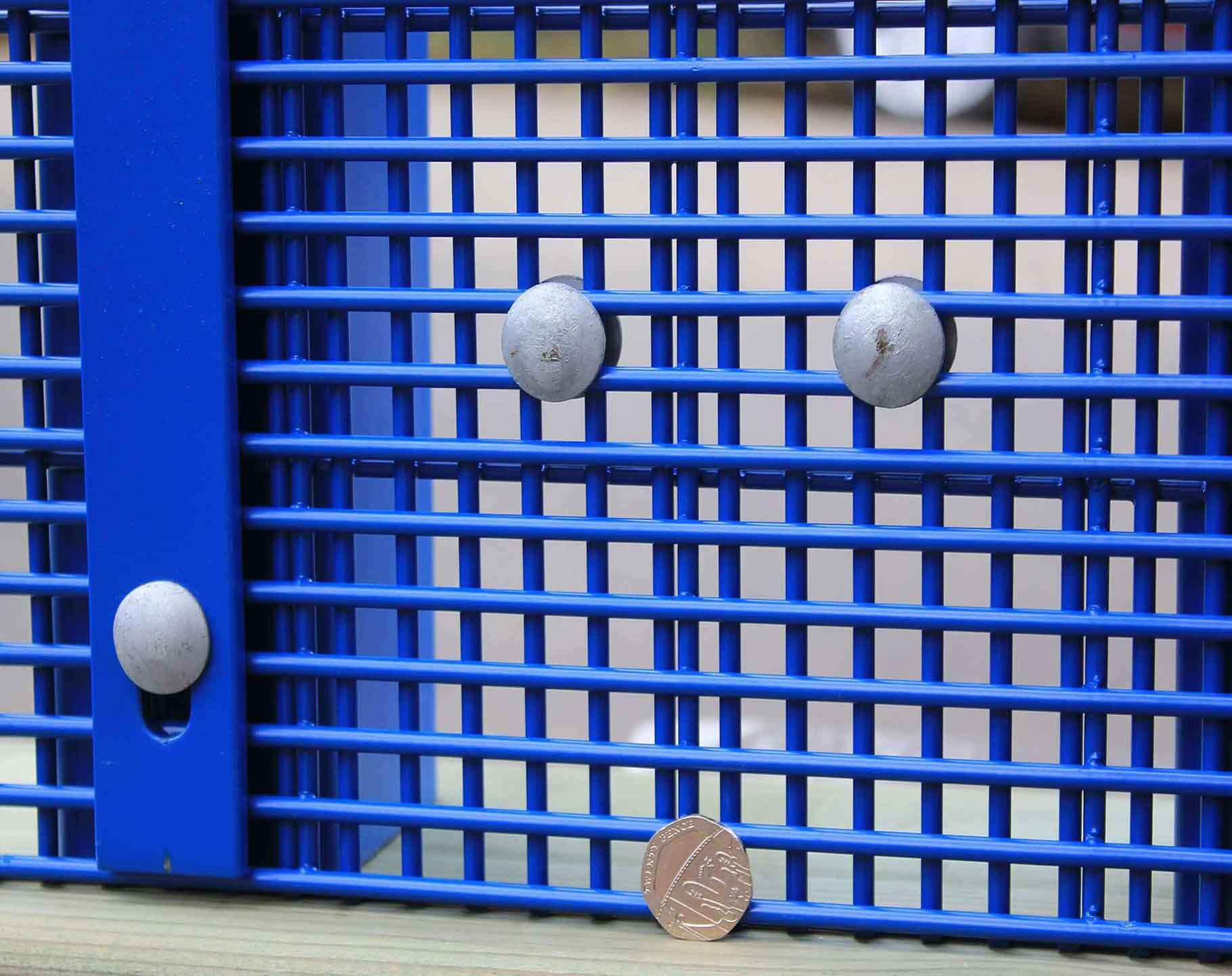

Two layers of 76.2mm x 12.7mm resistance mesh up to 2400mm only. Second panel is an internal skin only, single skin then from 2400mm upwards. Typical apertures of 8.7 x 8.7mm. Two mesh panels bolted together, one rotated 90° to leave 12.7 x 12.7mm wire centres. 4mm wire gauge.


We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates

358 Securi-Mesh® Plus Panel Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
1270 - 5200 2440 Dimensions to suit fence height and location Staggered double skin of 76.2 x 12.7mm resistance mesh welded at each intersection  Double clad only up to 2515mm high, single clad above 2515mm

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Comparison tool list

    Compare this product

    Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

    Standard Finishes
  • Panels are Galfan® zinc alloy coated
  • Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Galvanised and powder coated to non standard BS or RAL to special order
  • Marine coat for installations within 500m of salt water or an estuary
  • Explore our finishes


    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing

    Welded Mesh Panel Range

    We have a wide range of welded mesh panels, all with a 25 year guarantee. Browse individual products or view the full range below.

    View Range
