Gates and Access Control

Securi-Mesh® Gates | 358 Welded Mesh Gates

Securi-Mesh® gates are constructed from climb resistant Galfan® coated welded mesh panels that match our Securi-Mesh® 358 mesh fencing, to create a strong, high security perimeter.

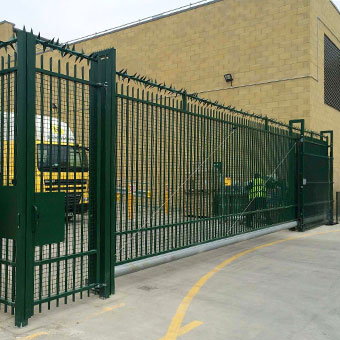

Available with single or double leaf configuration, with swing, sliding, or bi-folding operation. Our Securi-Mesh gates can also be safely and reliably automated with a range of operators, by our highly skilled gate engineers.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us
358 Securi-Mesh® Gate Features

  • Welded frame design
  • Available in a range of standard widths up to 10m and heights to 3m for pedestrian and vehicular access
  • No cost option of standard key in lock, handles and stop
  • Optional mounting brackets for high security locking devices

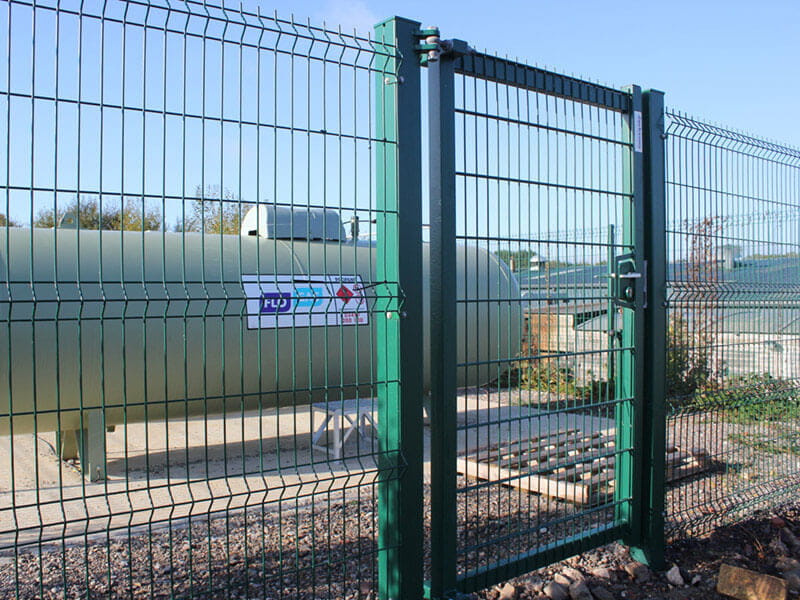

  • Single gates are supplied as right hand hanging, opening inwards (unless specified) and are complete with key in lock, handles and stop
  • Double gates are supplied complete with key in lock, handles, centre gate stop and drop bolts
  • 180° opening, adjustable, tamper-proof hinges
  • Additional welded support rails subject to leaf width
  • 60mm x 40mm section framing rails
  • Square section posts at 100mm, 120mm, 150mm and 250mm subject to size of gate
  • Gate posts supplied to allow 800mm - 1.0m in ground or with base plates for bolting onto concrete
  • Can be extended in height to carry barbed/razor wire, Rota-Spike or other high security extras
  • Crash rated single and double swing gates available
  • Suitable for automated operation

Product page logo banner no sbd

Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing
    Matching fencing

    Matching Fencing

    Our Securi-Mesh® fencing matches this product with the same specifications and is available in a range of heights to suit your requirements. Alternatively our Securi-Mesh® Plus fencing is similar but features a double skin mesh.

    Securi-Mesh FencingSecuri-Mesh Plus Fencing
    Standard Finishes

  • Galfan® zinc alloy coated to BS EN 10244-2:2009 class A as standard
  • Powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Marine coating for applications near sea water (optional extra)
  • Thinking of automating your gate or barrier?

    Jacksons Fencing has been automating gates since 1991 and is the expert in safe, reliable gate automation. All of our gate automation engineers are DHF qualified to a minimum of level 2.

    Gate automation
    View our full range of gates

    We have a wide range of gates available, including bi-folding speed gates, welded mesh gates, vertical bar gates, playground gates, timber gates, and other metal security gates.

    View All Gates

    Related Products

    All our gates come with a 25 year guarantee and a 25 month automation guarantee. Browse our other products relating to gates and gate automation. If you cannot find the item you are looking for, please do not hesitate to call our friendly sales team.

    Document Downloads

    Download specification documents, drawings and case studies for this product
