Anti-climb prison mesh

358 Securi-Mesh® | Welded Mesh Panel

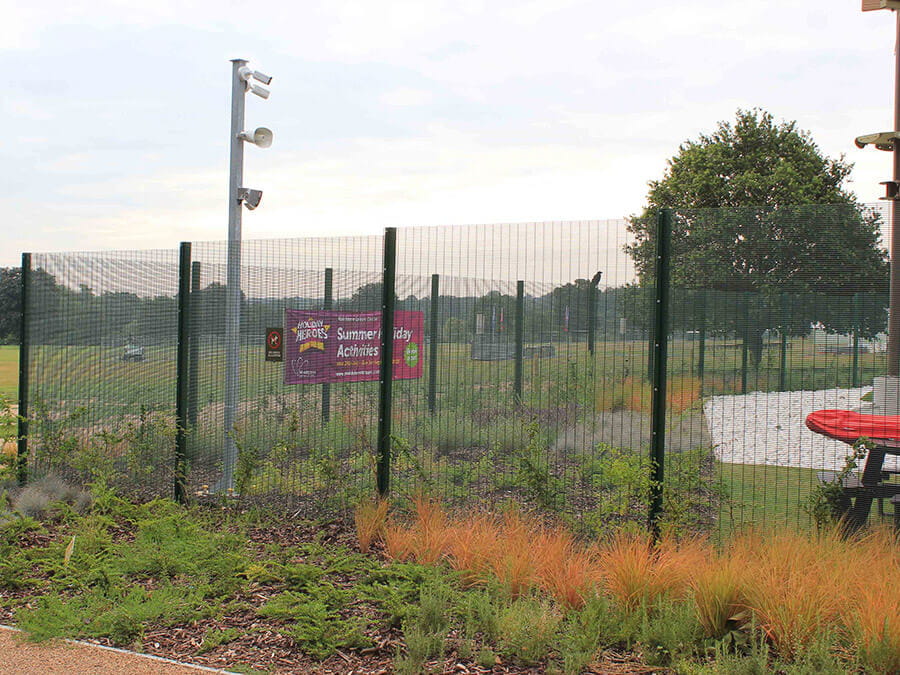

Where the application specifically demands a heavy duty security mesh design to meet specifications including the use of CCTV, or where a visual deterrent is a primary consideration, our 358 Security Mesh system provides an ideal solution for a wide variety of high security perimeter and access control applications.

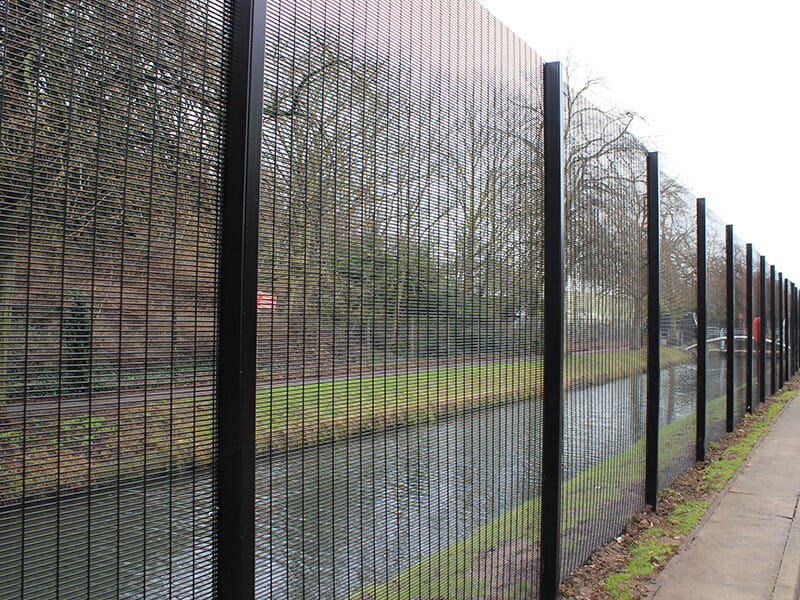

The climb resistant mesh (sometimes referred to as prison mesh or 358 mesh) with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.

Also available Securi-Mesh®Plus for high security mesh fencing

Both security mesh and posts can be configured to meet Home Office specifications for use in prison, or other higher security detention or custodial facilities.

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

Securi-Mesh Features

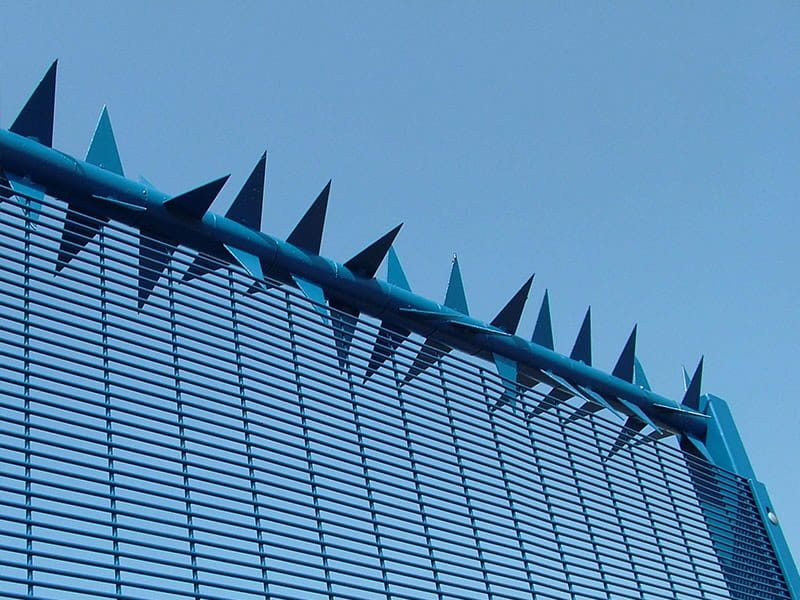

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®
  • Overlapped by a minimum of 75mm at posts to maintain integrity of protection

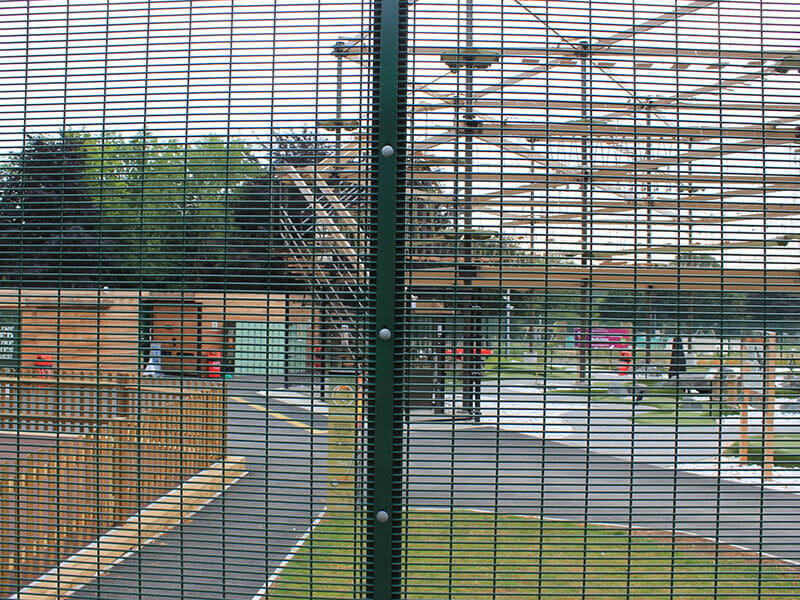

  • Clamp bar fixings
  • Can be stepped to accommodate sloping ground
  • Anti climb design
  • Custom designs available
  • Matching single leaf and double leaf gates available
  • Premium zinc alloy coating

Product page logo banner no sbd

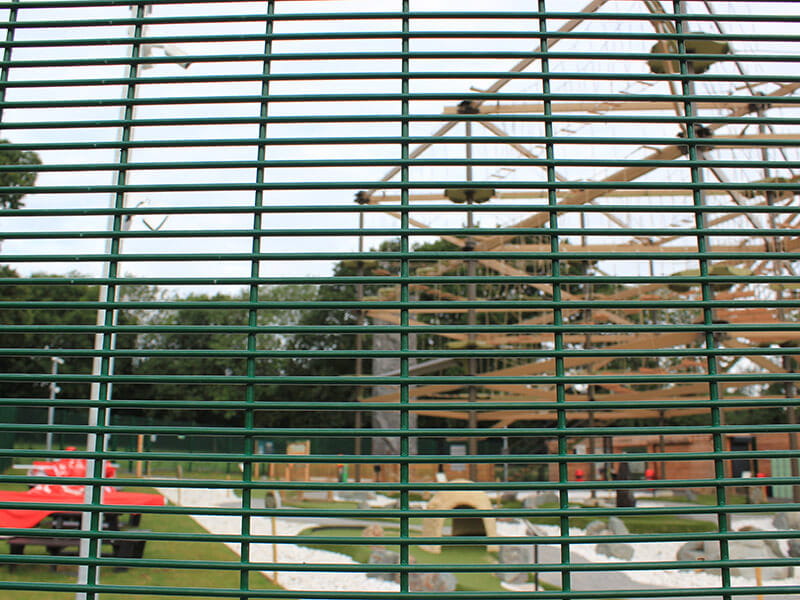

Securi-Mesh panels are constructed from 76.2 x 12.7mm (3" x 1/2") resistance mesh with 4mm wire. Panel widths are 2519mm as standard, with heights up to 5210mm. Panels overlap 75mm at each post.

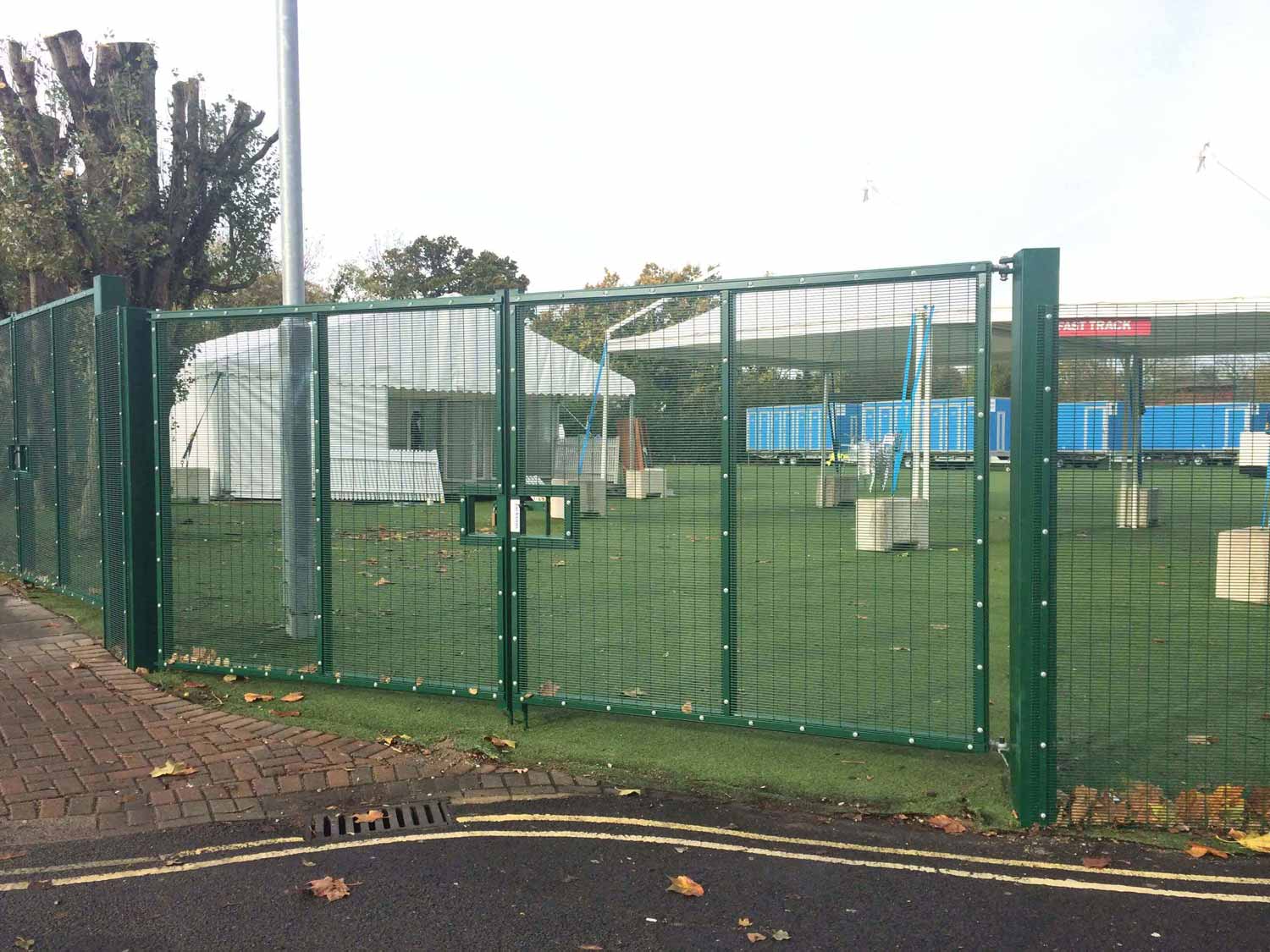

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates

358 Securi-Mesh® Panel Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1270 2440 80 x 60 1900
2134  2440  80 x 60  2900
2440 2440 80 x 60 3300
2705  2440  80 x 60  3500
3000  2440  80 x 60  3800
3300 2440 120 x 60 4100
4200  2440  120 x 120 square  5100
5210  2440  150 x 150 square 6200

Please note: Generic post sections and lengths may need to be altered to meet site specific location forces or added requirements.

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete

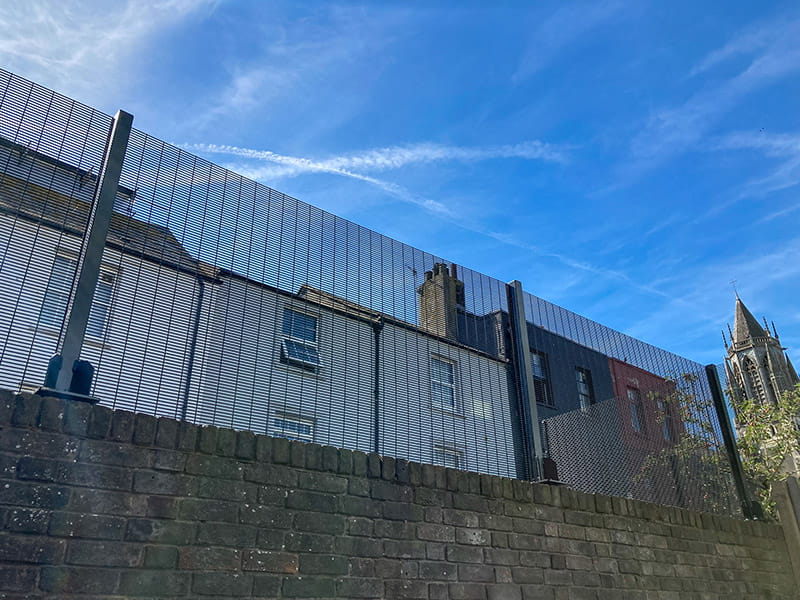

  • Cranked to suit wall mounting
  • Comparison tool list

    Compare this product

    Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

    Standard Finishes
  • Panels are Galfan® zinc alloy coated
  • Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Galvanised and powder coated to non standard BS or RAL to special order
  • Marine coat for installations within 500m of salt water or an estuary
  • Explore our finishes


    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing

    Document Downloads

    Download specification documents, drawings and case studies for this product

    Case Studies

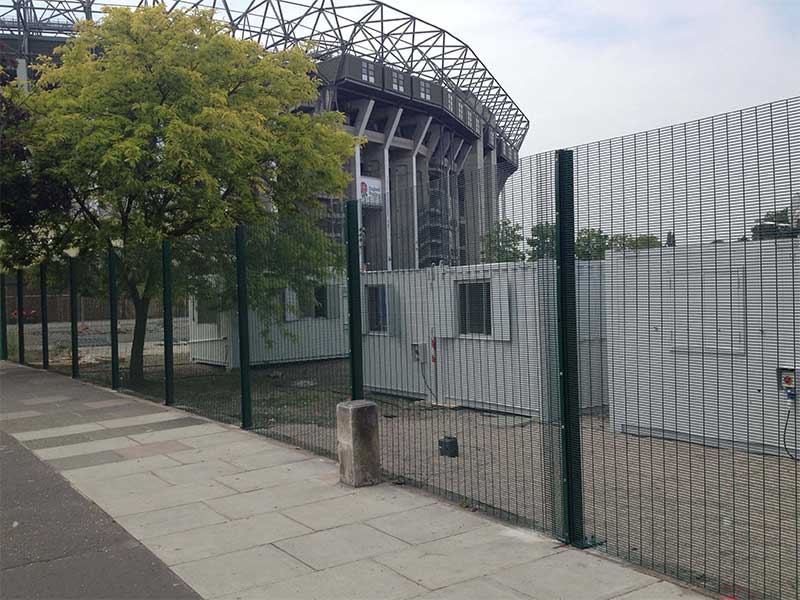

    The two case studies below show how 358 Securi-Mesh® can be applied in different sectors due to its versatile appearance, good visibility, and high level of security. We installed over 11km of fencing and gates for the Eurotunnel terminal in Calais, and over 380m for the development of Twickenham Stadium ahead of the Rugby World Cup.

    Welded Mesh Panel Range

    We have a wide range of welded mesh panels, all with a 25 year guarantee. Browse individual products or view the full range below.
