LPS 1175 Security SR1 Fencing

Barbican® Extra SR1 Fencing | Security Fencing

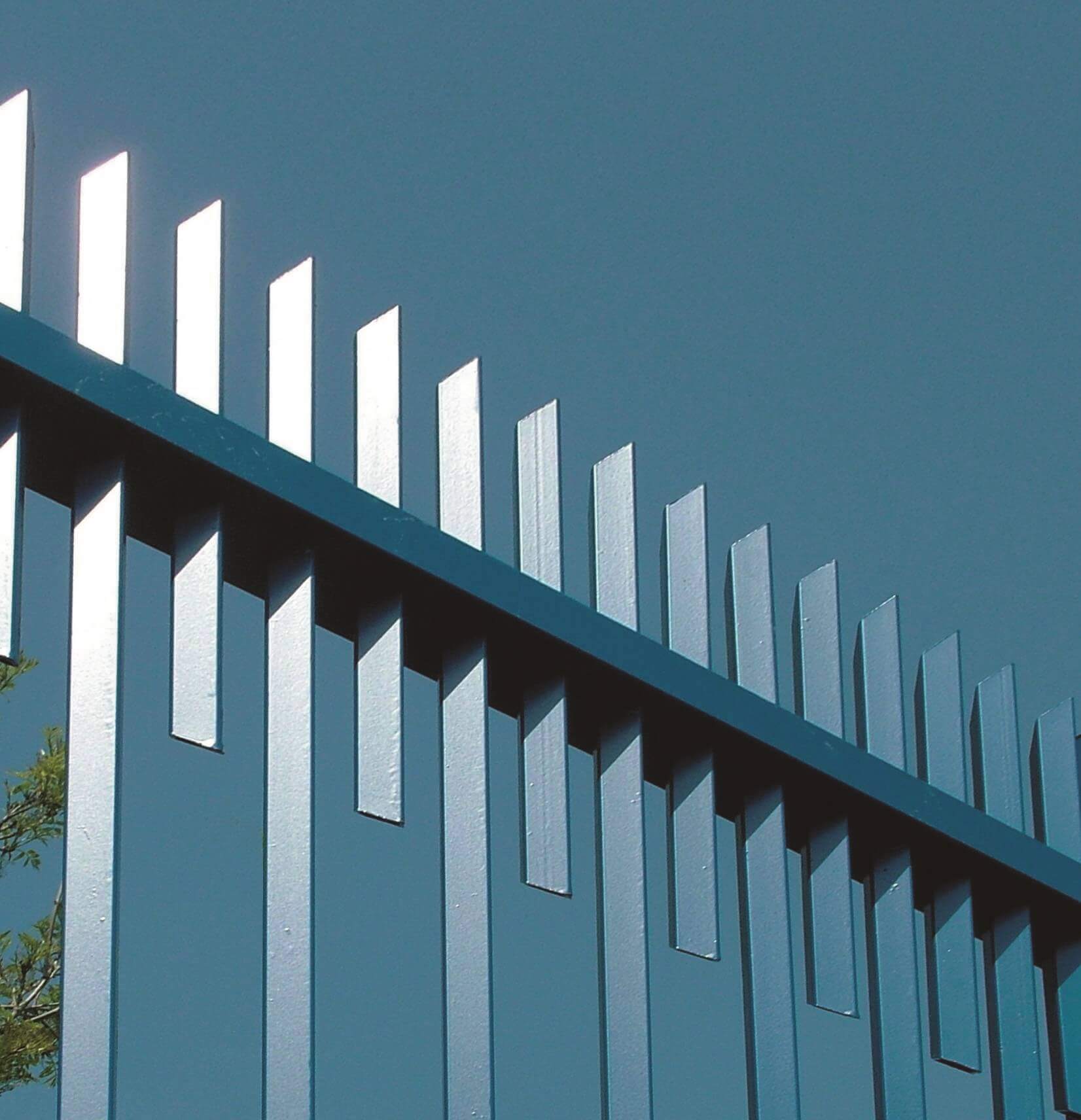

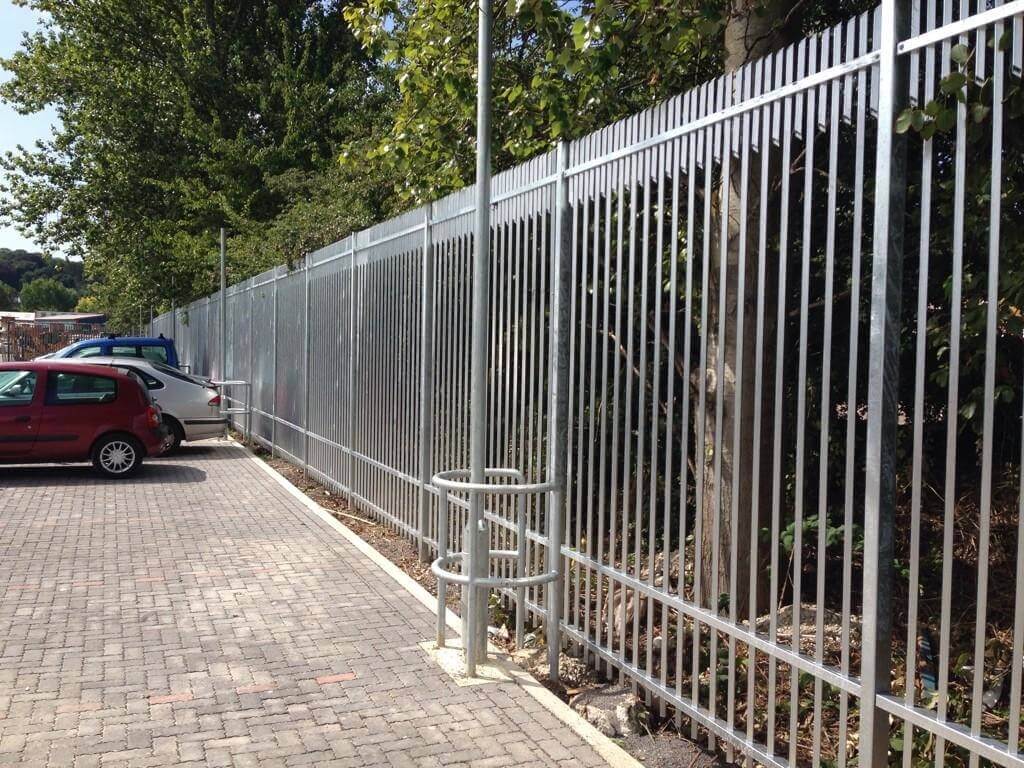

The Barbican® Extra SR1 LPS 1175 system features a welded pale-through-rail construction for strength and security integrity and additional pales through the top rail making it difficult to scale over. It is ideally suited to commercial properties, schools, or applications where a fence meeting with a recognised security rating with enhanced protection against climbing or scaling is specified.



25 year service life guarantee

Barbican SR1 Features

  • LPS 1175 A1 (SR1) approved
  • Secured by Design preferred specification
  • Fully welded pale-through-rail construction
  • Seamless, concealed rail to post fixing
  • Provides high visibility for natural surveillance
  • Anti-climb design
  • SR1 gate available



Panels

Barbican® Extra SR1 panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres, with additional pales through top rail and between each full pale.

Gates

SR1 gates available

Barbican® Extra SR1 Panel Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1800 3000 60 x 60 2500
2000 3000 60 x 60 2800
2500 3000 80 x 60  3300
3000 2484  80 x 60  3800

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting

Standard Finishes

  • Hot dip galvanised to BS EN ISO 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or an estuary

Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request

Document Downloads

Download specification documents, drawings and case studies for this product
