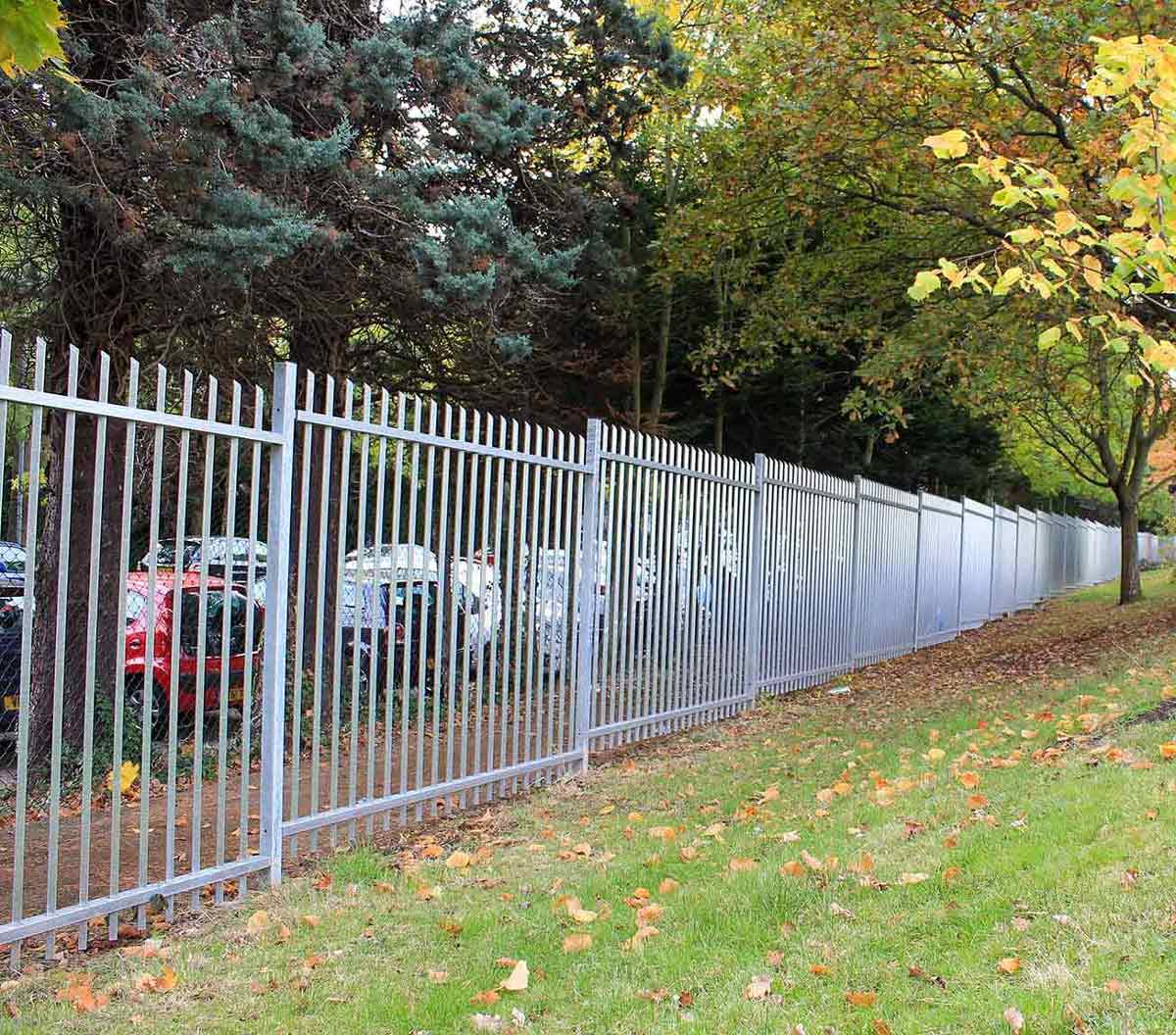

Square pale security fencing

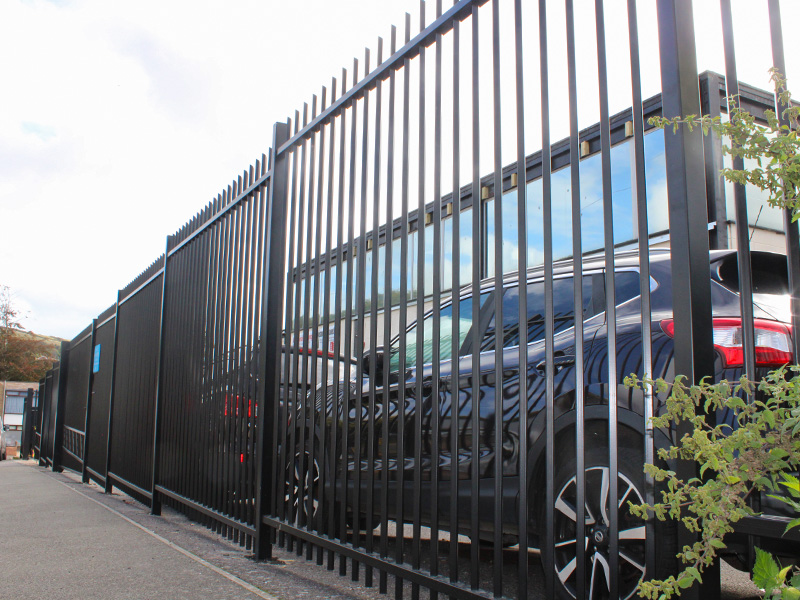

Barbican® Fencing | Security Fencing

Barbican® features our welded pale-through-rail construction which means there are no bolts to be forced or pales to be removed. The horizontal rails are sleeved on to the upright posts to provide a seamless design that is both stylish and incredibly strong.

Barbican® Fencing correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.

25 year service life guarantee



Enquire about this product

Get a quote for this productSpecify Us
Product

Compare this product

Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

Barbican Features

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®
  • Vertical pale spacing conforms to building regulations for anti-trap
  • Unique vandal-proof panel to post connectors
  • Panels can be manufactured to accommodate sloping ground
  • Anti climb design
  • Matching single leaf and double leaf gates available

Product page logo banner no sbd

Panels

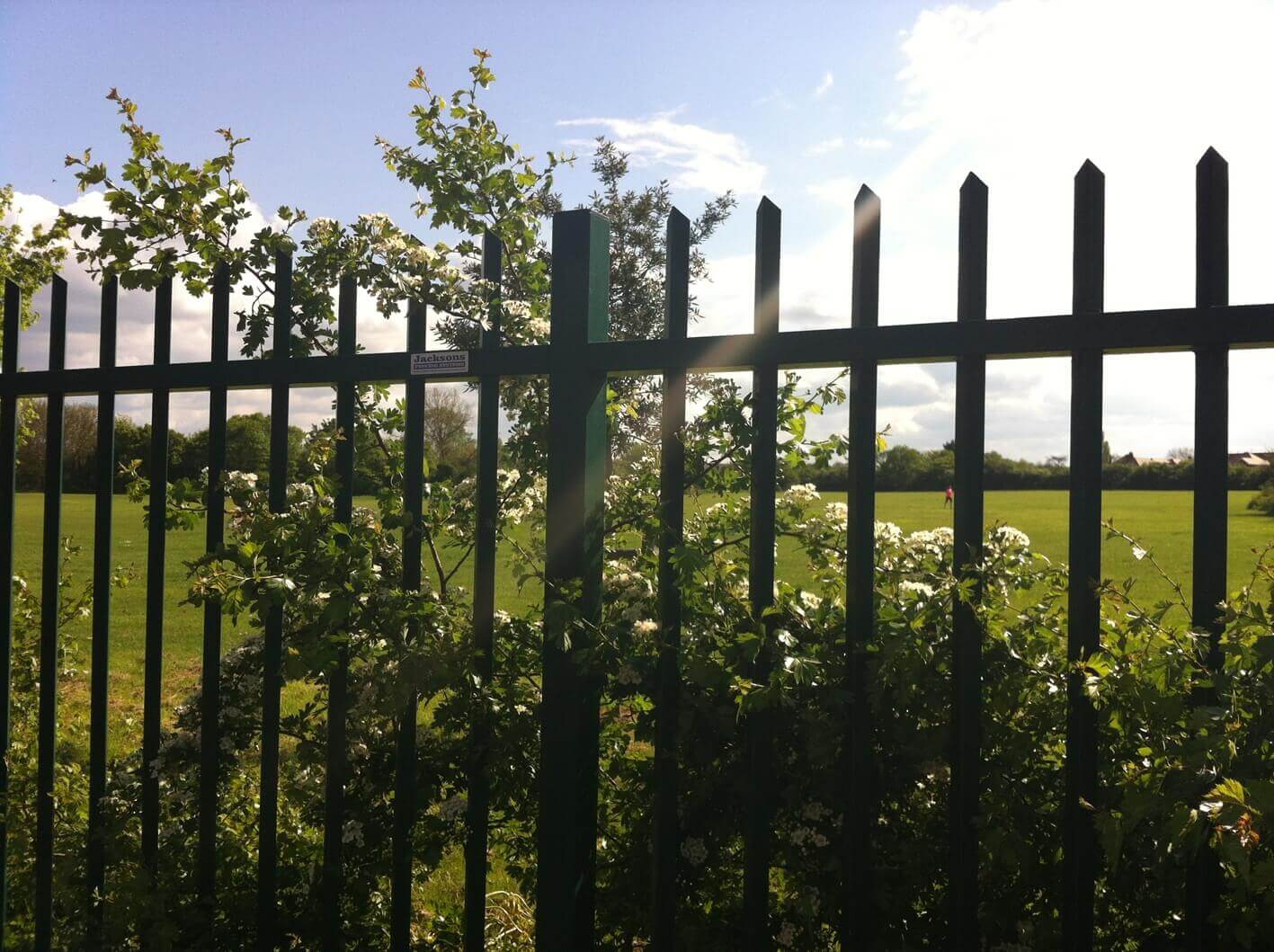

Barbican® panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres (96mm gap between pales). The tops of pales are cut at 45 degrees and left open as standard to form a point.

Gates

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates

Barbican® Panel Specification

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1000 3000 60 x 60 1600
1250 3000 60 x 60 1800
1500 3000 60 x 60  2100
1800 3000 60 x 60  2500
2000  3000  60 x 60  2800
2500  3000  80 x 60  3300
2900 2484  80 x 60  3700
3000  2484 80 x 60  3800

Standard Colours
  • Black RAL 9005

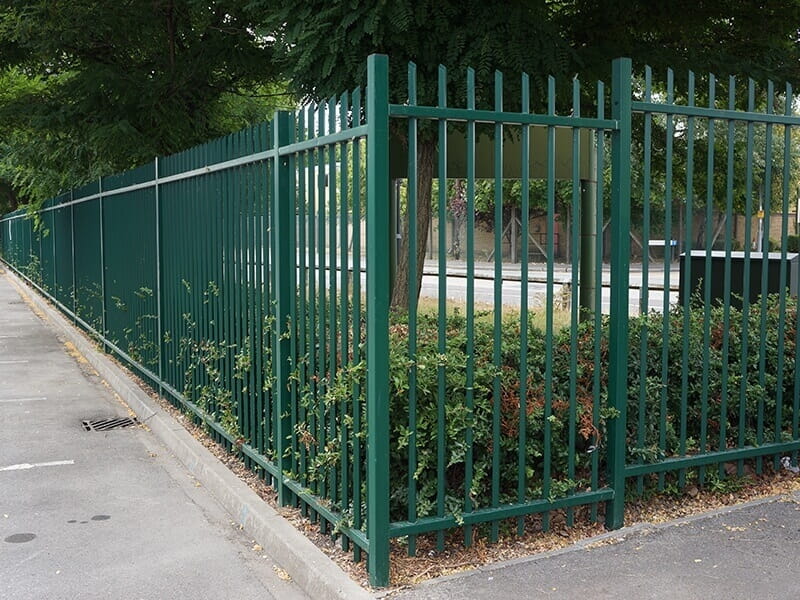

  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing
    Standard Finishes

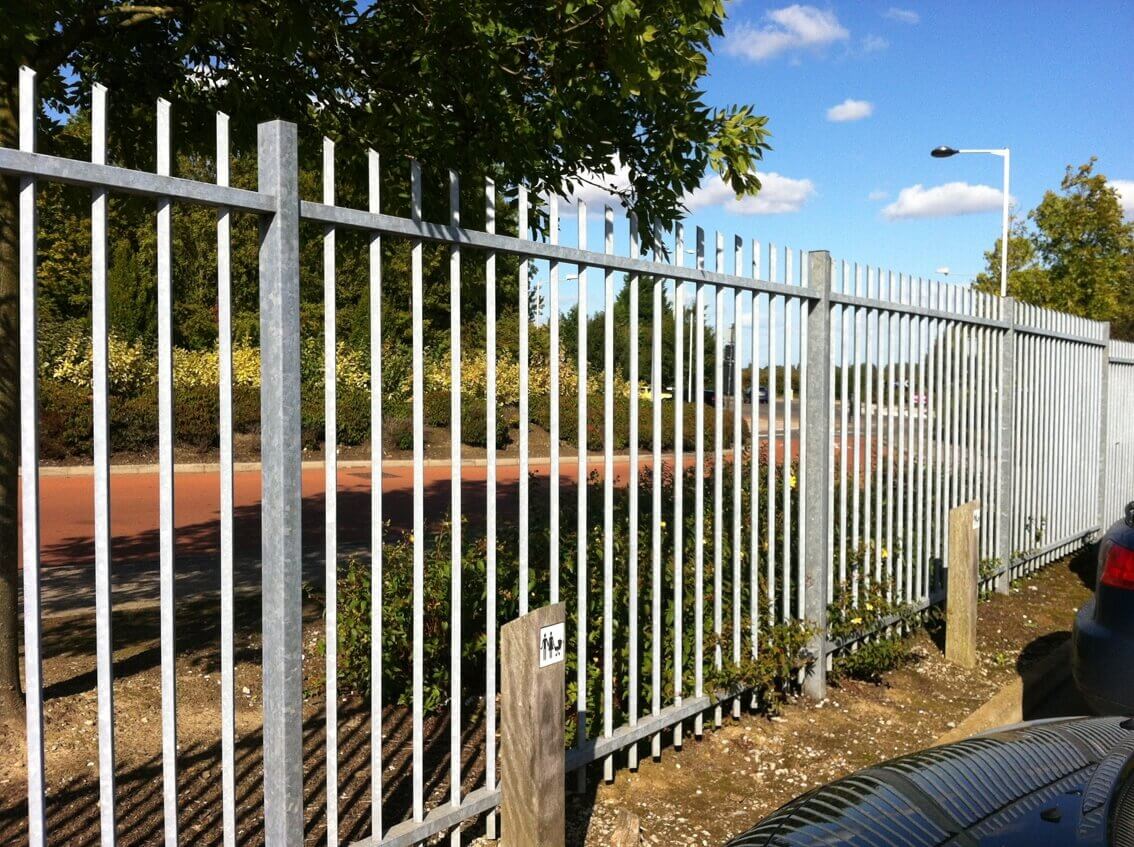

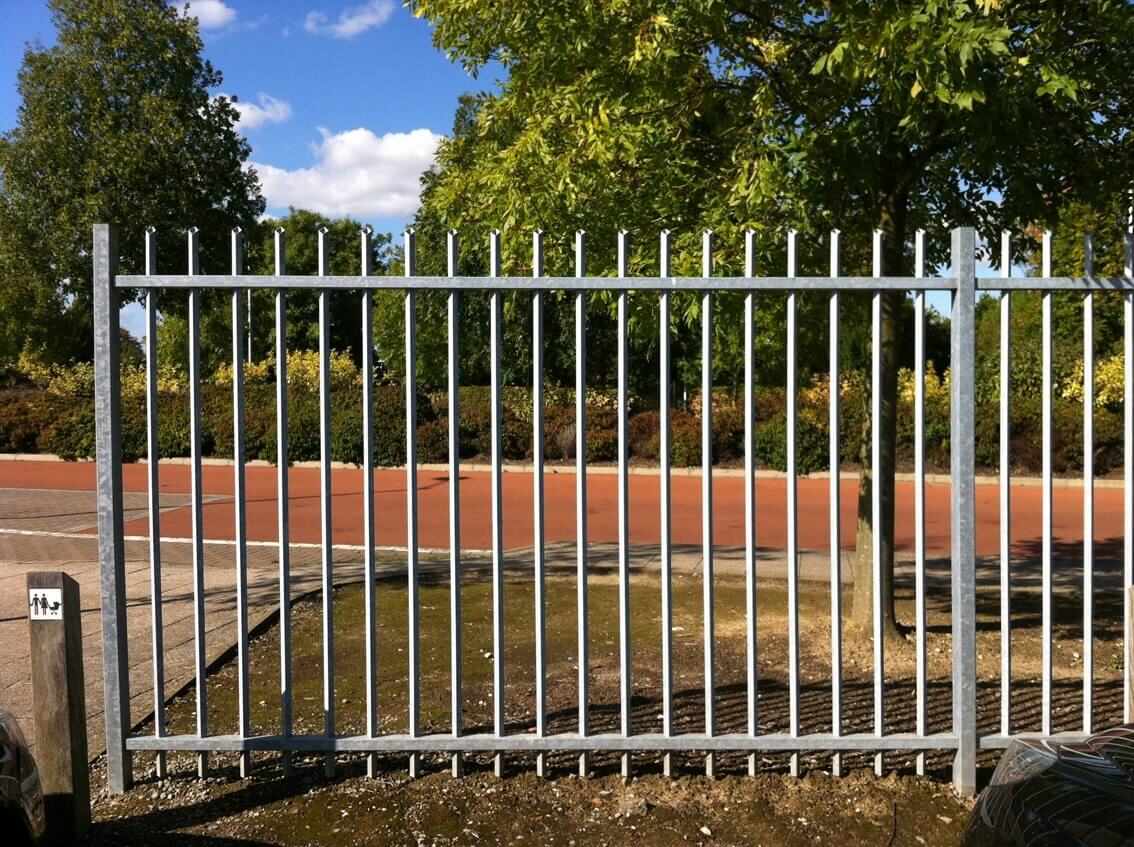

  • Hot dip galvanised to BS EN 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Powder coating to non standard BS or RAL to special order
  • Marine coating for applications near sea water (optional extra)
  • Explore our finishes below

    Finishes

    Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • hedgehog-6714346
    this is a hedgehog friendly product

    The pale spacing allows free movement of hedgehogs in search of food, mates, and shelter, which is essential for their survival.

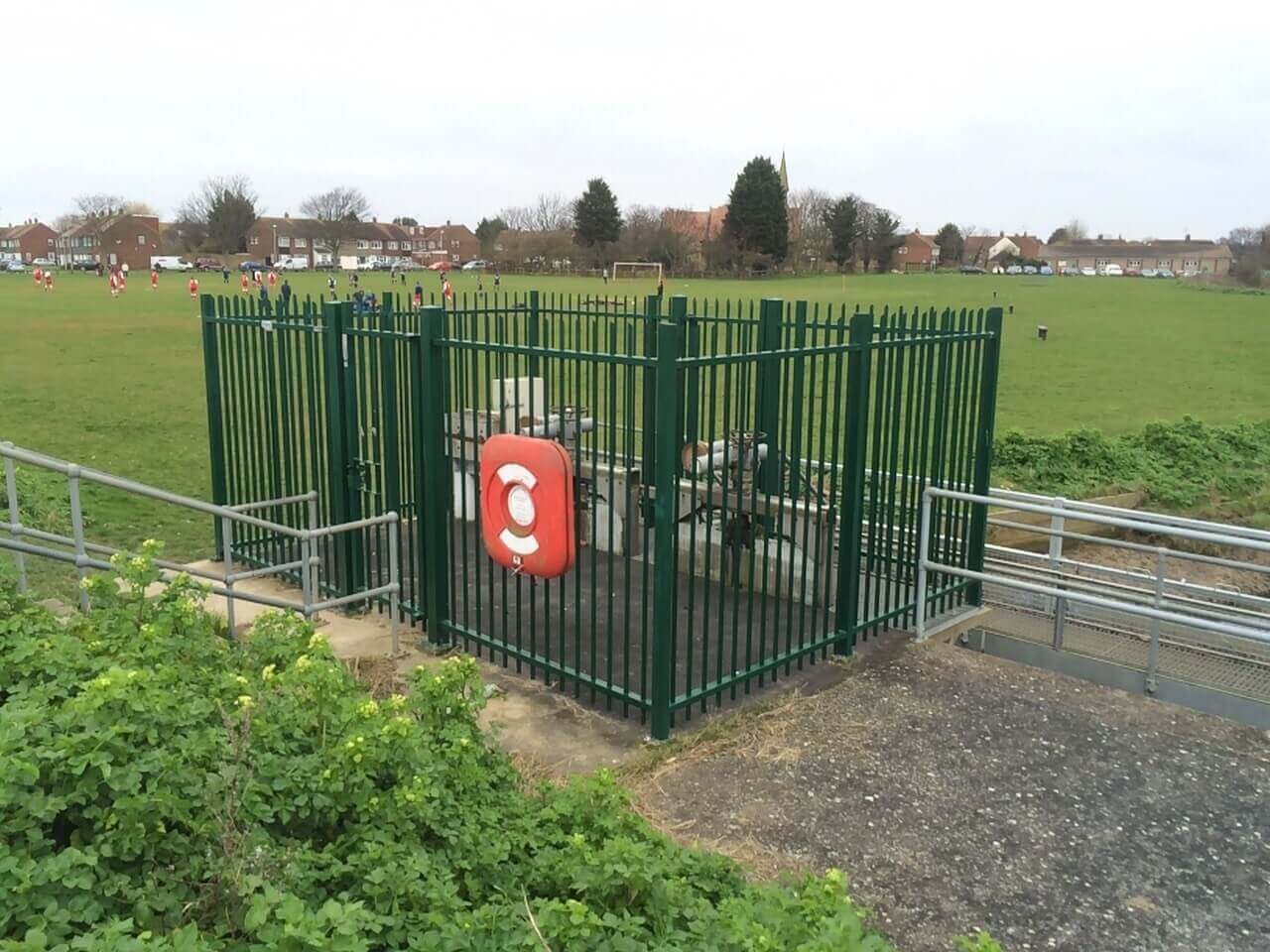

    Applications

    Barbican

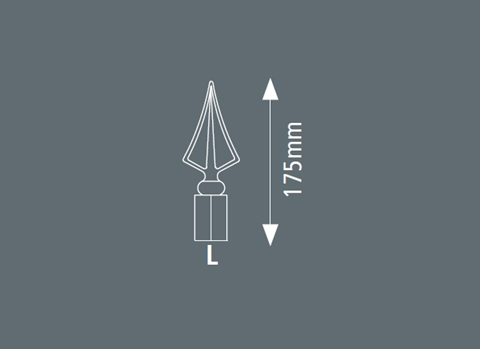

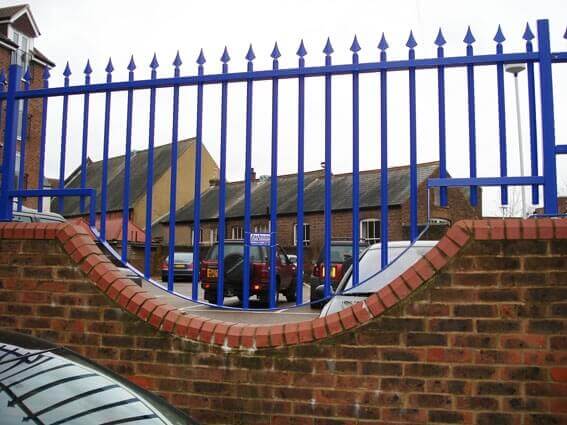

    Finial Options

    Barbican Finials
