Trellis
Our Trellis panels are made from superior quality Jakcure® treated softwood. Trellis can be used to separate areas, or create screens within areas and is ideal for parks, pubs, restaurants, and leisure centres.
Trellis correspond(s) to the generic component/material "timber" in the BRE Global Guide online generic specification(s) "pre-treated timber post and trellis fencing" which achieve(s) a summary rating of A+ within commercial, domestic, residential, health, industrial, education.
25 year guarantee
Enquire about this product
Click below to get in touch and our team will get back to you with a free, no obligation quote, or find all the details you need for specifying this product.
Get a quote for this productSpecify Us
Trellis Panel Features
Stainless steel fixings
25 year guarantee
Responsibly sourced timber
Manufactured in the UK
Designed for use with our slotted Jakposts
Matching gates available

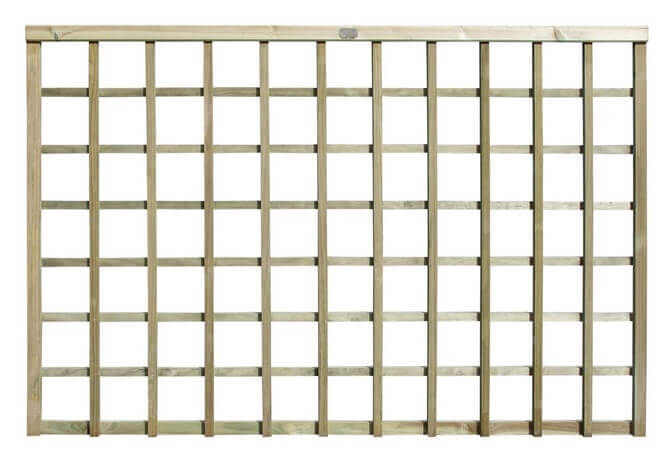

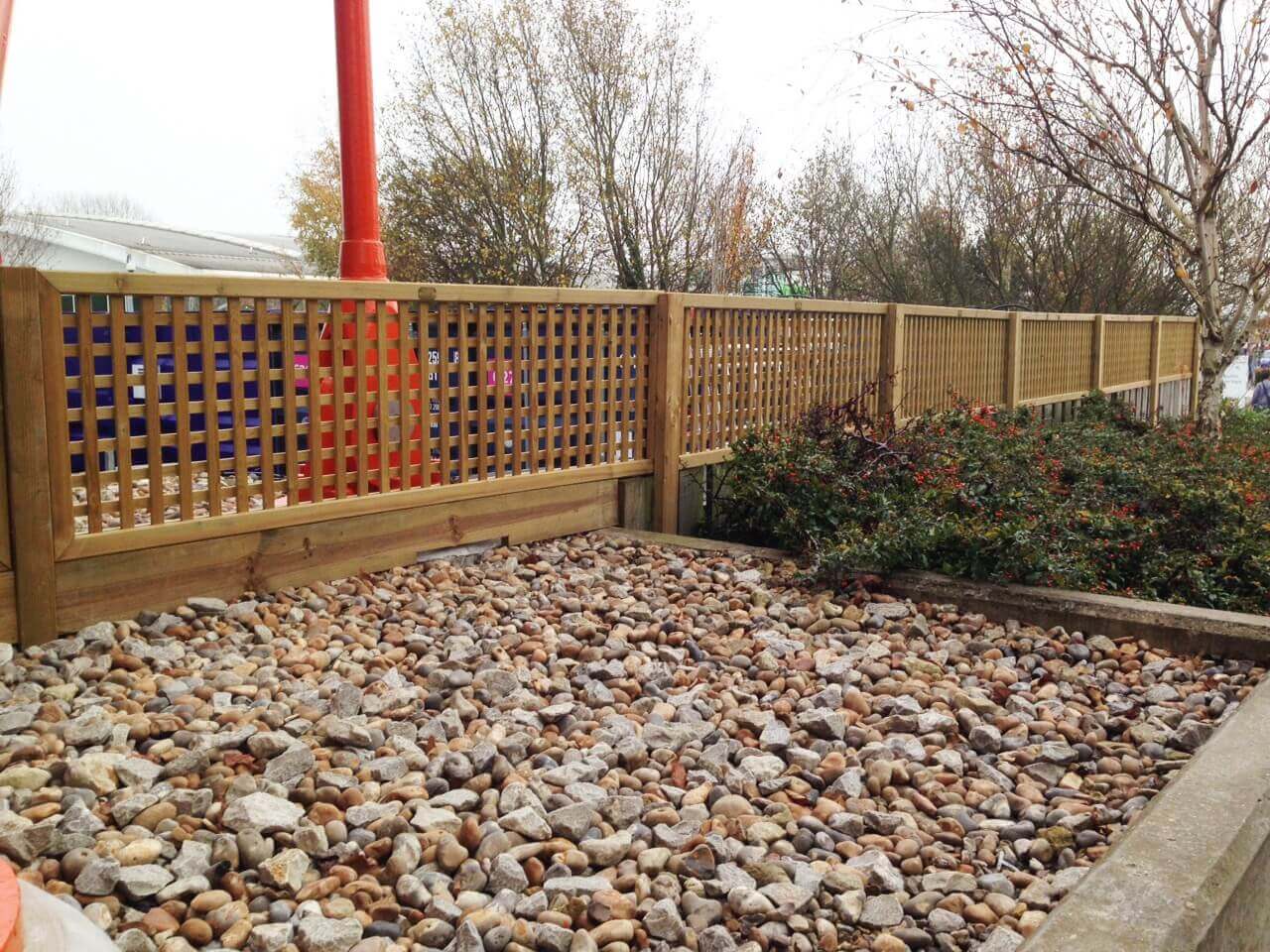

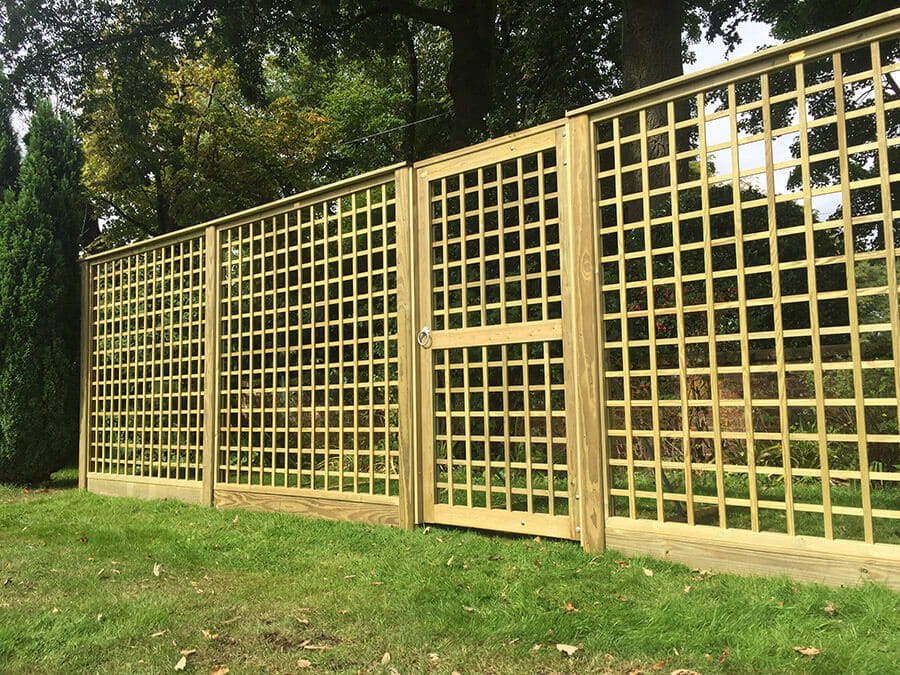

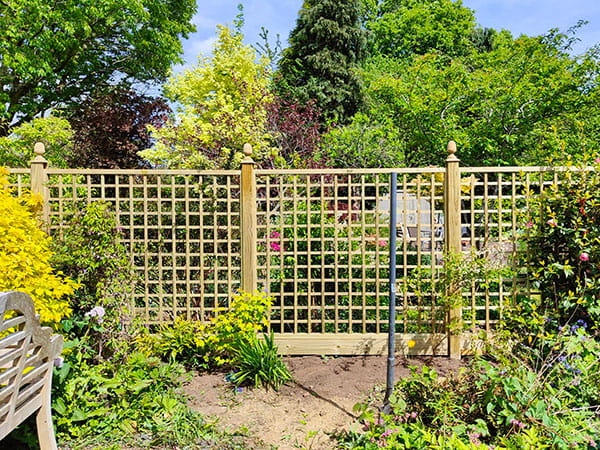

Premier Square Trellis Specification
| Height (mm) |
Width (mm) |
| 300 | 1830 |
| 430 | 1830 |
| 560 | 1830 |
| 940 | 1830 |
| 1190 | 1830 |
| 1320 | 1830 |
| 1450 | 1830 |
| 1570 | 1830 |
| 1830 | 1830 |
Framing 45 x 51mm
Trellis battens 25 x 12mm
Squares 100mm wide

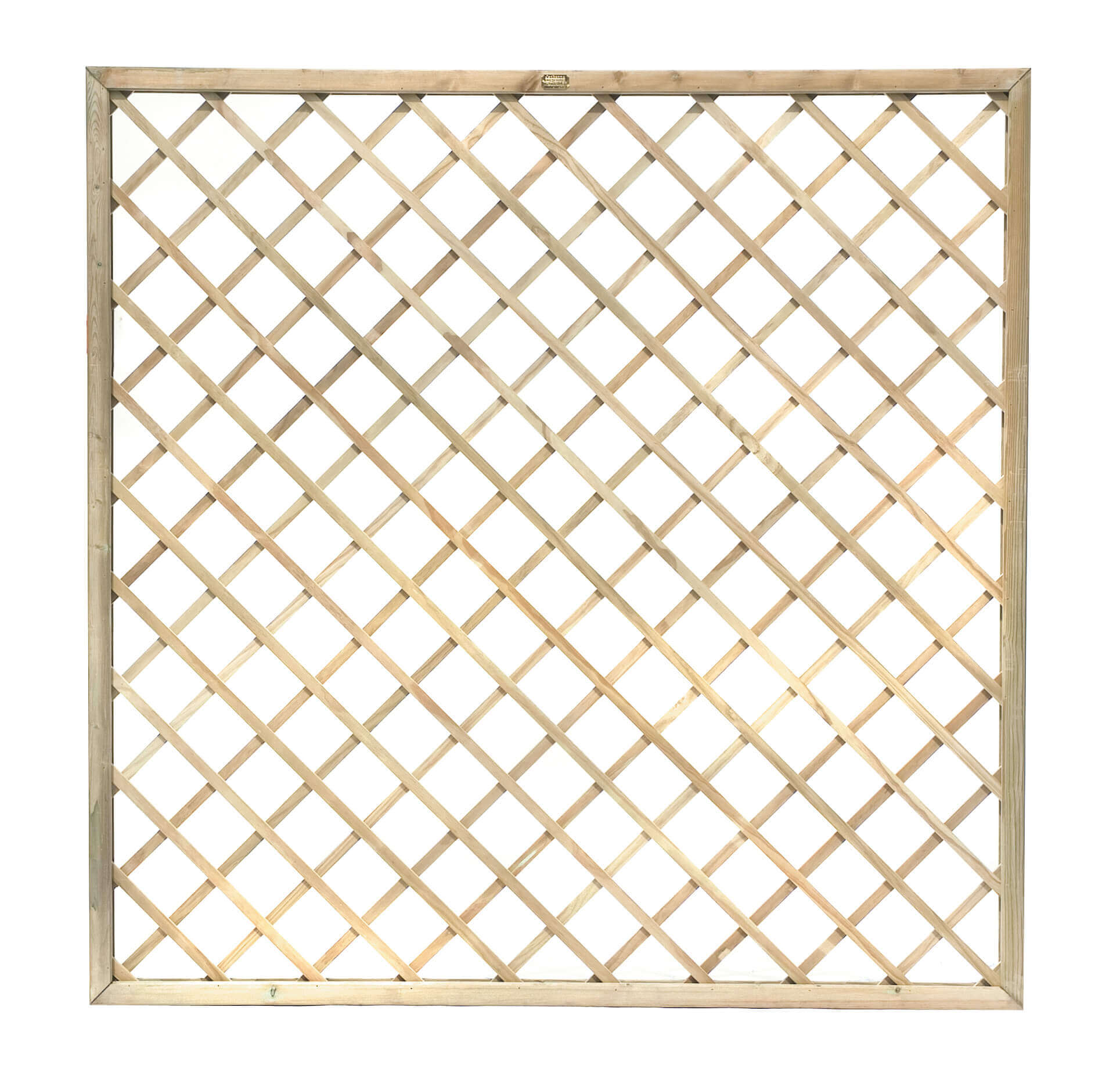

Diamond Trellis Specification
| Height (mm) |
Width (mm) |
| 300 | 1830 |
| 430 | 1830 |
| 560 | 1830 |
| 940 | 1830 |
| 1190 | 1830 |
| 1450 | 1830 |
| 1830 | 1830 |
Framing 45 x 51mm
Trellis battens 25 x 12mm
100mm diamonds

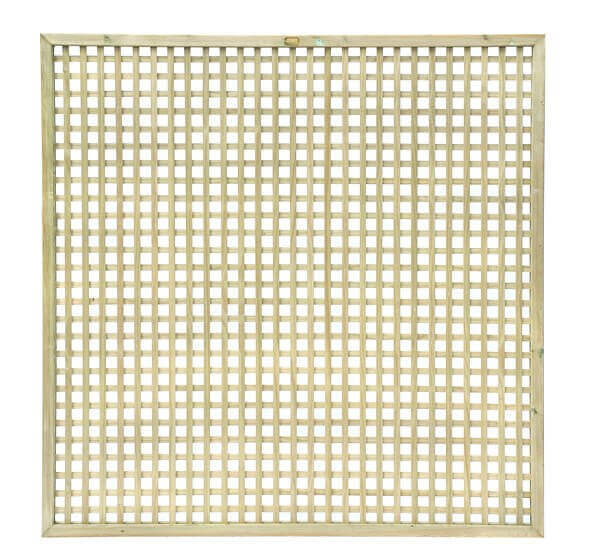

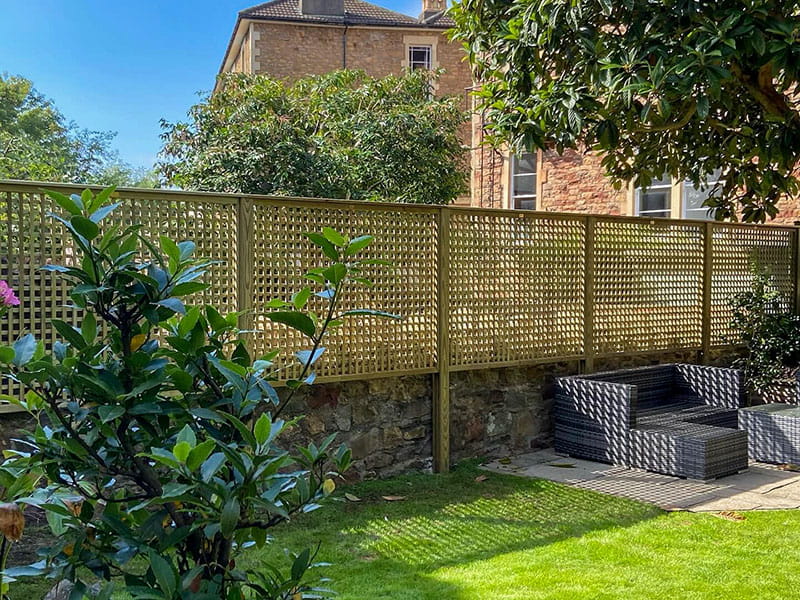

Lattice Trellis Specification
| Height (mm) |
Width (mm) |
| 300 | 1830 |
| 430 | 1830 |
| 560 | 1830 |
| 810 | 1830 |
| 940 | 1830 |
| 1190 | 1830 |
| 1320 | 1830 |
| 1450 | 1830 |
| 1570 | 1830 |
| 1830 | 1830 |
Framing 45 x 51mm
Trellis battens 25 x 12mm
Squares 38mm wide

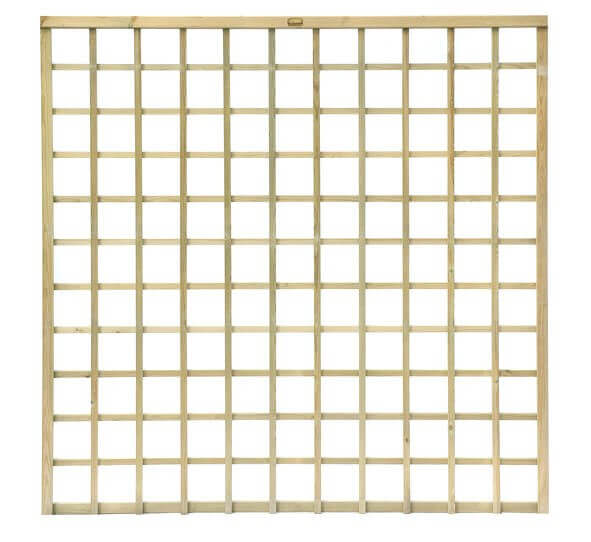

Standard Square Trellis Specification
| Height (mm) |
Width (mm) |
| 300 | 1830 |
| 600 | 1830 |
| 860 | 1830 |
| 1200 | 1830 |
| 1500 | 1830 |
| 1830 | 1830 |
Top/capping rail 51 x 45mm
Trellis battens 38 x 19mm
Infill battens 25 x 19mm at 162mm centres
138mm squares

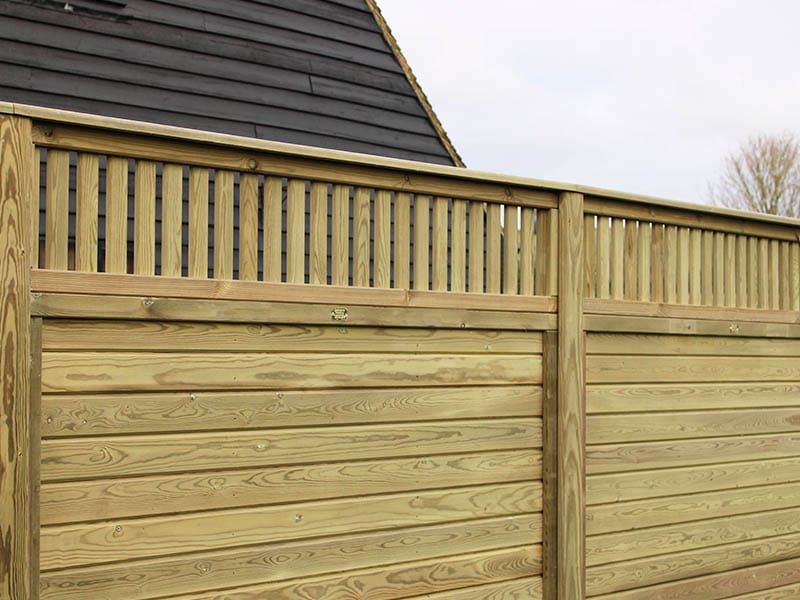

Roman Topper Panel Specification
| Height (mm) |
Width (mm) |
| 330 | 1830 |
Framing 45 x 51mm
Pales 16 x 45mm spaced every 75mm (30mm gaps)

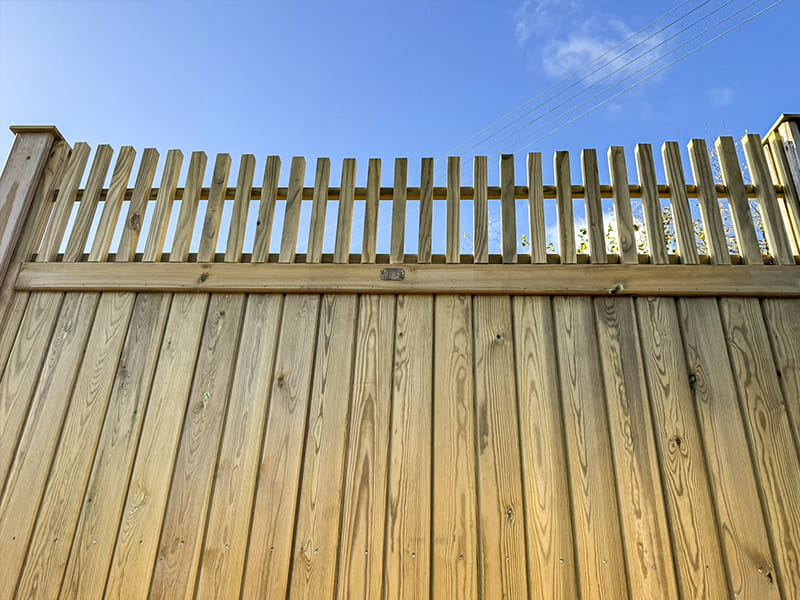

Viking Topper Panel Specification
| Height at lowest point (mm) |
Height at highest point (mm) |
Width (mm) |
| 300 | 370 | 1830 |
Rails 38 x 19mm (bottom) and 25 x 19mm (top)
Pales 24 x 30mm

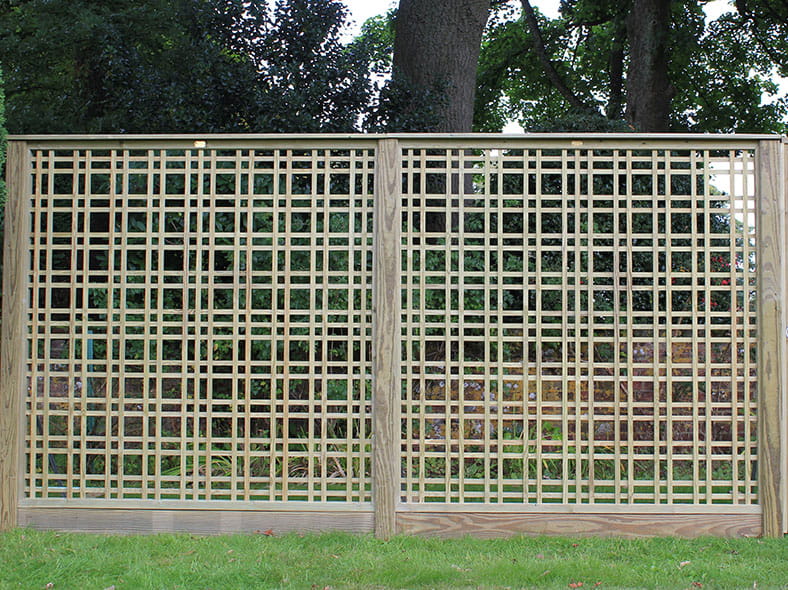

Tartan Trellis Specification
| Height (mm) |
Width (mm) |
| 1830 | 1830 |
Framing 45 x 51mm
Trellis battens 25 x 12mm
Panel Options
Timber treatment CPD available
Jacksons Fencing offers a free CPD seminar on timber treatment, accredited by RIBA, to book please email cpd@jacksons-fencing.co.uk.
Gravel Boards
Please note that gravel boards must be used when panels are in contact with the ground as part of the 25 year Jakcure® guarantee conditions. More detail can be found on our Jakcure® T&Cs page.
Dimensions: 1830 x 140 x 25mm
If you are specifying for new developments please consider our Hedgehog Friendly Gravel Board.
Standard Gravel BoardDocument Downloads
