Gates and Access Control

EuroGuard® Gates | Welded Mesh Gates

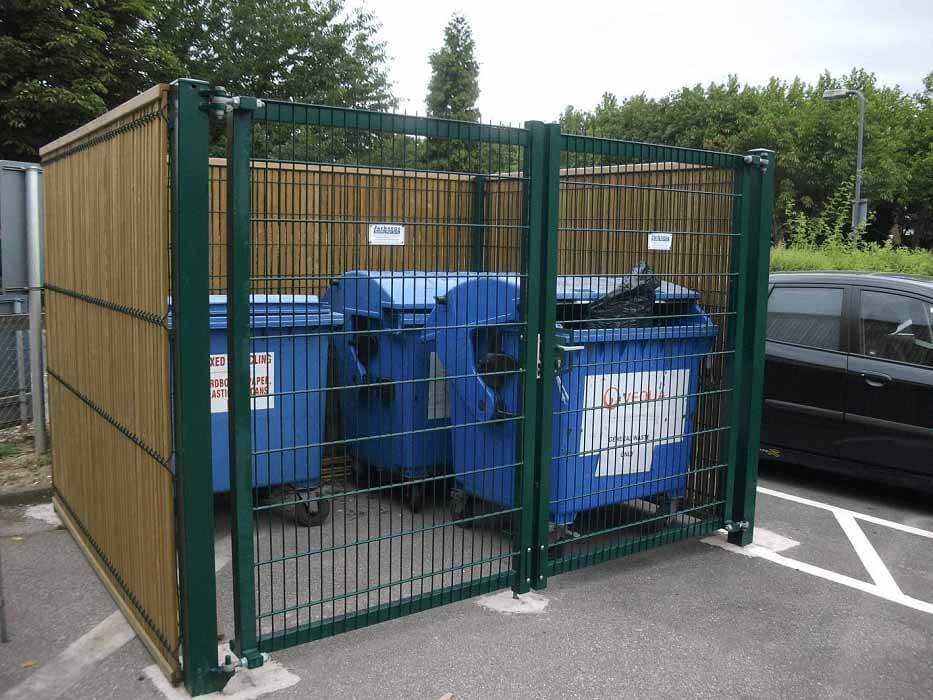

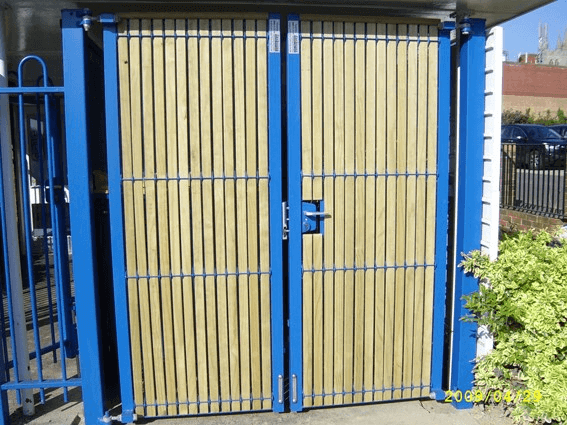

Our EuroGuard® gates are made from Flatform Medium and Heavy mesh types with a flat profile, to complement all our EuroGuard® mesh fencing styles. EuroGuard® Combi Gates feature EuroGuard® Regular mesh within the design, and have a timber infill to match fencing.

Gates can be configured as single or double leaf for pedestrian and vehicular access, with swing or sliding, manual or automatic operation.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us
EuroGuard® Gate Features

  • Welded frame design
  • Available in a range of standard widths up to 10m and heights to 3m for pedestrian and vehicular access
  • Single gates are supplied as right hand hanging, opening inwards (unless specified) and are complete with key in lock, handles and stop
  • Double gates are supplied complete with key in lock, handles, centre gate stop and drop bolts
  • 180° opening, adjustable, tamper-proof hinges
  • Additional welded vertical support rails subject to leaf width
  • 60mm 40mm framing rails
  • Square section posts at 100mm, 120mm, 150mm and 250mm subject to size of gate
  • Gate posts supplied to allow 800mm - 1.0m in ground or with base plates for bolting onto concrete
  • Suitable for automatic operation

Product page logo banner no sbd

Standard Finishes

  • Galfan® zinc alloy coated to BS EN 10244-2:2009 class A as standard
  • Powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Marine coat for installations within 500m of salt water or an estuary
  • Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
  • EuroGuard Fencing

    We have a wide range of EuroGuard fencing to match these gates, including V mesh, timber and steel mesh combination fencing, and flatform styles. Find the range below.

    EuroGuard Fencing
    Thinking of automating your gate?

    Jacksons Fencing offers a free CPD seminar on gates and gate automation, accredited by RIBA, to book please email cpd@jacksons-fencing.co.uk.

    View our full range of gates

    We have a wide range of gates available, including bi-folding speed gates, welded mesh gates, vertical bar gates, playground gates, timber gates, and other metal security gates.
