Metal Security Gates

Sliding Gates

Sliding gates, as the name suggest operate with either cantilever or tracked system where the gate slides to open and close. This gate automation is ideal for applications where there is not sufficient room for a swing gate to open into or out of a space or where higher security is required.

There are two types of operations for sliding gates, Cantilever gate is counterbalanced and runs smoothly on nylon wheels and can function on ground that is not level. An alternative to cantilever sliding gates is tracked sliding gates, tracked sliding gates can work over a larger opening widths and have a lower profile allowing the gate to running along a track set in level ground.

Jacksons automated gates and barriers meet with the essential health and safety requirements and are CE marked as required by law. Additionally, the products are designed and engineered to exceed the standards set out in BS EN 12978 and BS EN 12453 in relation to gate safety.

Need help with sliding gates? Contact a member of our service team

Contact Us

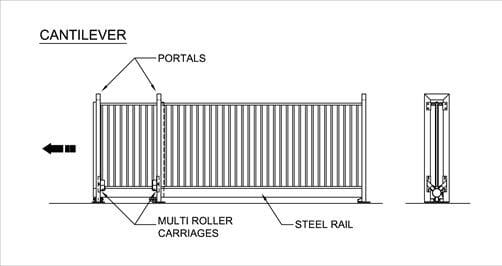

Cantilever Sliding Gates

A cantilever gate is counterbalanced and does not require a track to run along the opening. The gate is supported by rollers which slide in a tubular track which is fitted to the bottom of the gate.

Available in either a single or double leaf configuration, along with the option of being manual or automated gates.

Infill Options

  • Welded Mesh (EuroGuard, Securi Mesh)
  • Railings (Barbican, Sentry, TriGuard, Defender, Imperial, Ornamental, Barbican Extra, Bow Top)

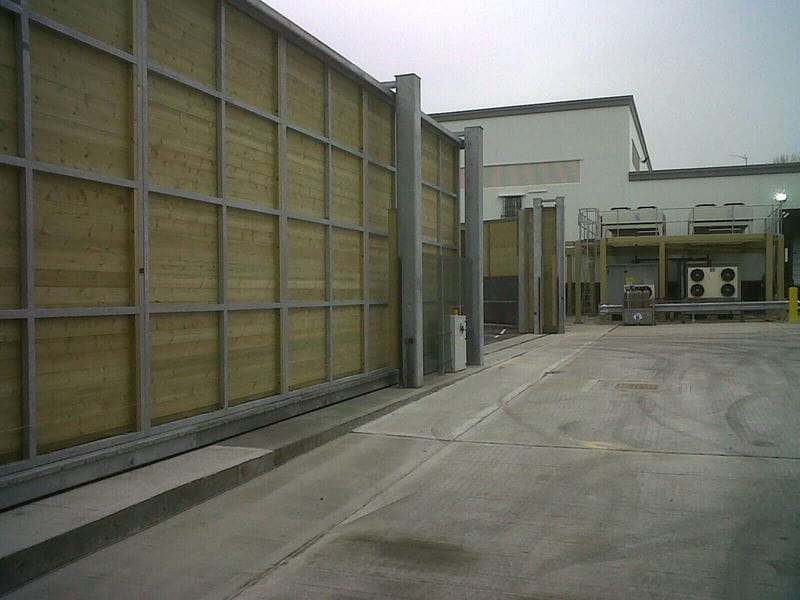

  • Timber - Acoustic or Tongue and Groove

cantilever sliding gate

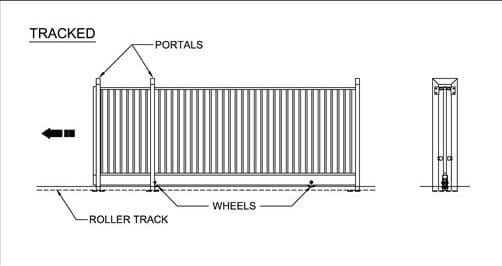

Tracked Sliding Gates

Tracked sliding gates run along a track which is installed along the opening. The gate is guided along the track with wheels at the base of the gate.

In order for the gate to work efficiently the track needs to remain clear from debris

Infill Options

  • Welded Mesh (EuroGuard, Securi Mesh)
  • Railings (Barbican, Sentry, TriGuard, Defender, Imperial, Ornamental, Barbican Extra, Bow Top)
  • Timber - Acoustic or Tongue and Groove


tracked sliding gate

Electric Sliding Gates

Sliding gates can be operated manually, but are generally automated for ease of use and convenience, particularly larger gates. Find out more about the features and technical details of our electric sliding gates.

Electric Sliding Gates

Timber Sliding Gates

Commonly seen in residential properties or gated estates, our timber sliding gates have a solid boarded tongue and groove effect infill which increases privacy, and can operate with a track or cantilever mechanism and range of access control devices. All timber is premium quality pressure treated and guaranteed for 25 years, with an additional 25 month automation guarantee.

Timber Sliding Gates

Document Downloads

Download specification documents, drawings and case studies for this product
