Tubular rail design with anti climb features
Tri-Guard® | Security Fencing

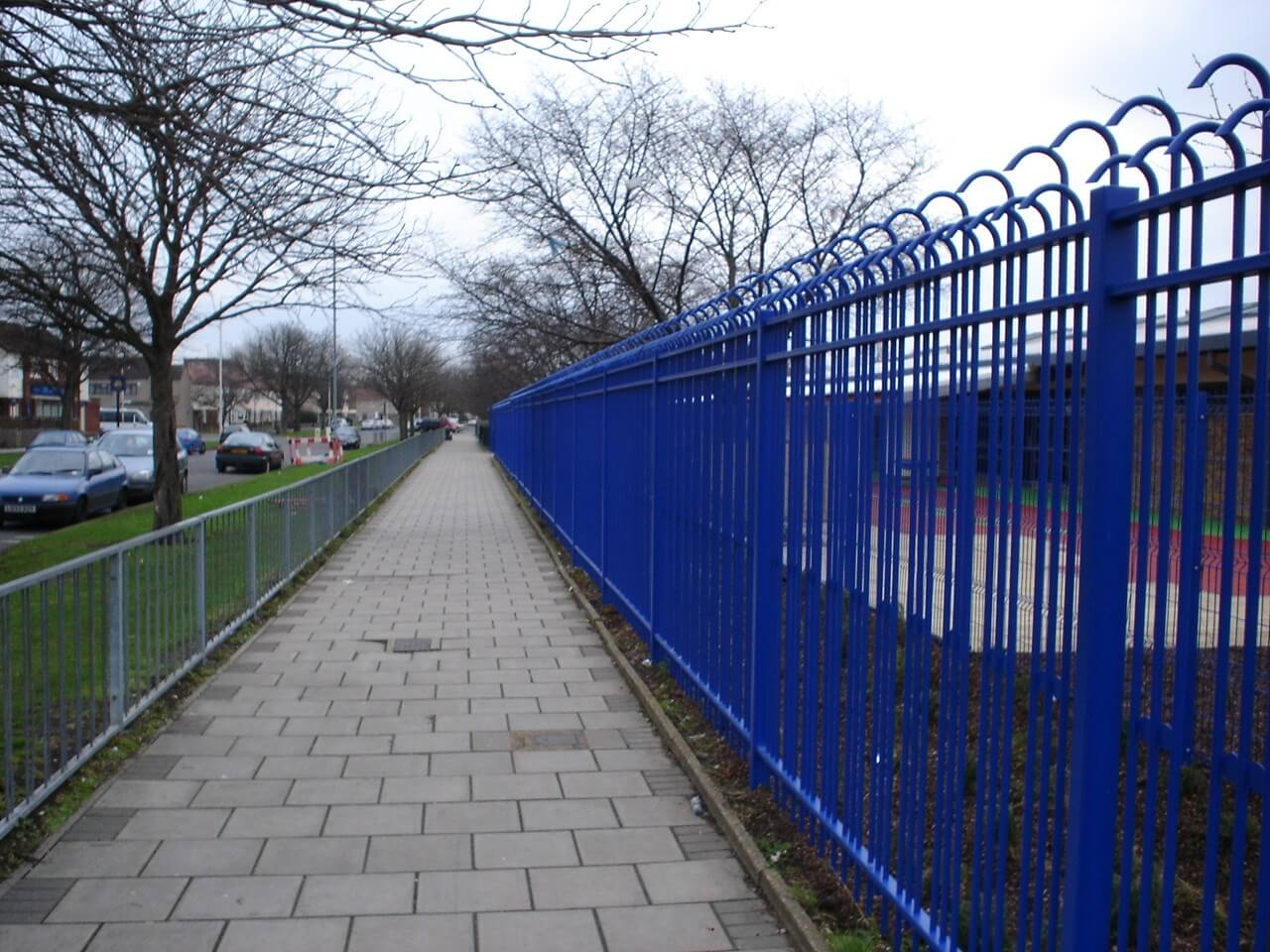

Tri-Guard® is an innovative range of security fencing and gates featuring pales with curved tops, set in clusters of three, joined by feature steel discs to create a decorative appearance with anti-climb and anti-scale performance.
TriGuard® correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
25 year service life guarantee
- Posts can be customised for Barbed wire / Razor wire / Rota Spike®
- Vertical pale spacing conforms to building regulations for anti-trap
- Unique vandal-proof panel to post connectors
- Panels can be manufactured to accommodate sloping ground
- Anti climb design

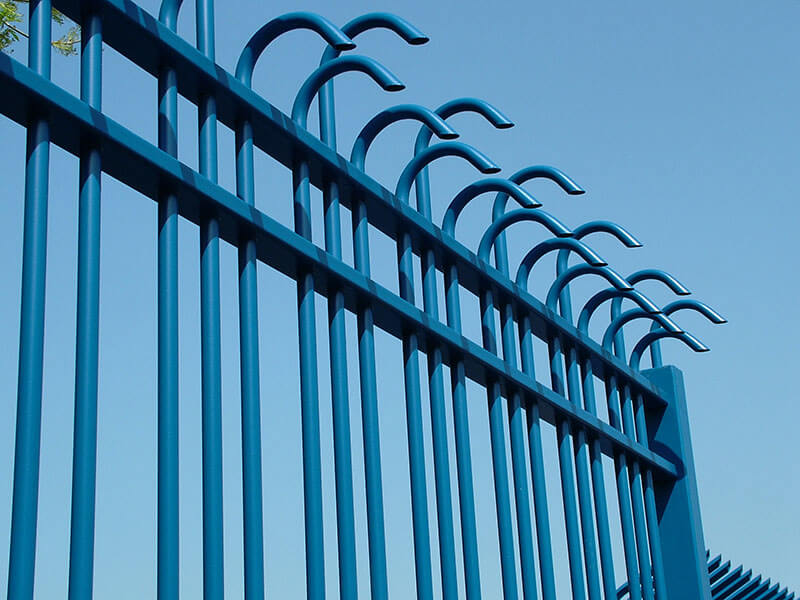

- Pales cut at 45° and curved outwards for anti-climb

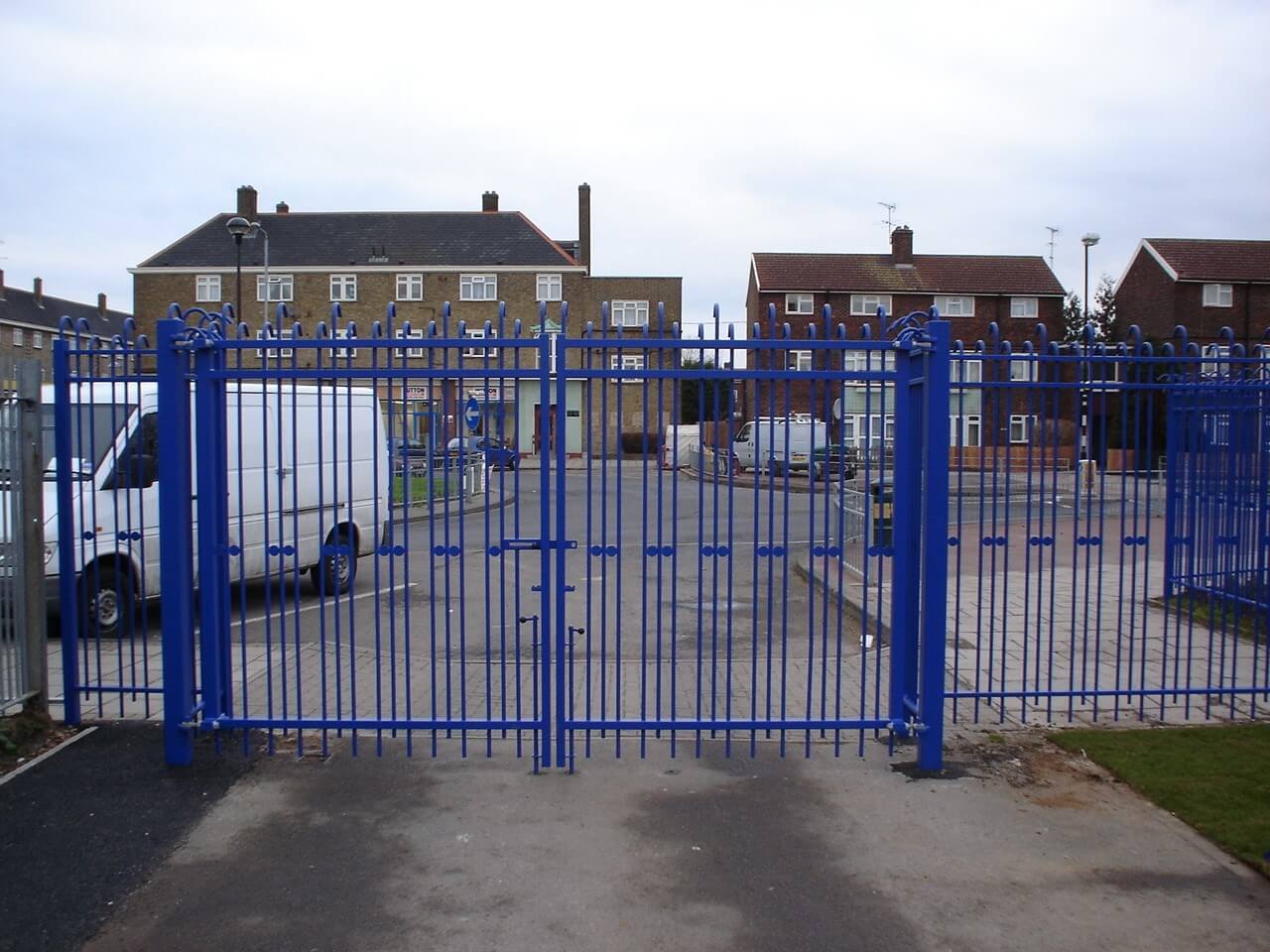

- Matching single leaf and double leaf gates available

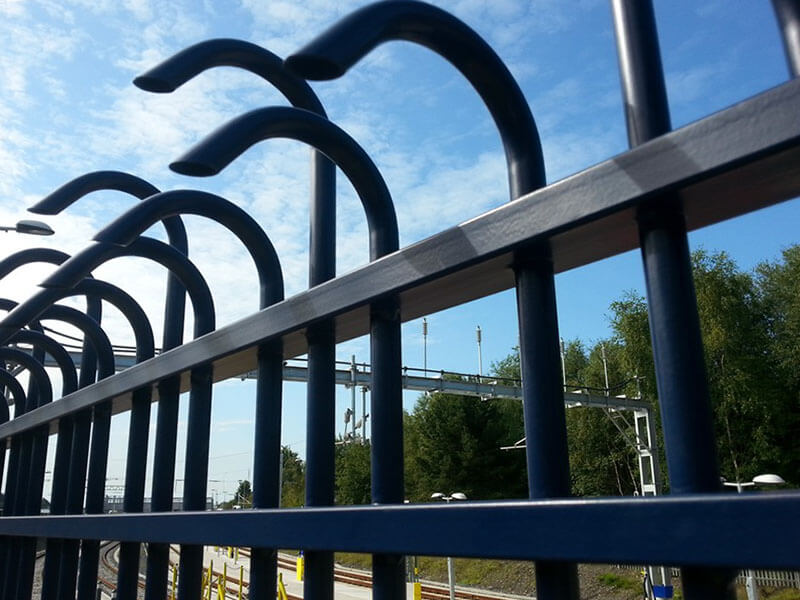

Tri-Guard® panels have three horizontal rectangle hollow section rails 50 x 25mm. The vertical round hollow section 19mm pales are grouped in threes with the top curved over. Metal discs are welded between the pales, one row for 2200mm high and two rows for 2500mm high.
Matching single leaf and double leaf gates available.
Tri-Guard® Panel Specifications
|Height (mm)||Post Centres (mm)
Post Dimensions (mm)
||Overall Post Length (mm)
|2200||3010||80 x 60||3000|
|2500||3010||80 x 60||3000|
- Over length set in concrete as standard
- Base plated to bolt down onto concrete
- Cranked to suit wall mounting
- Hot dip galvanised to BS EN ISO 1461 as standard
- Hot dip galvanised and powder coated to BS EN 13438
- Marine coat for installations within 500m of salt water or an estuary
Download specification documents, drawings and case studies for this product
