Timber noise barrier

Jakoustic® Reflective | Acoustic Fencing

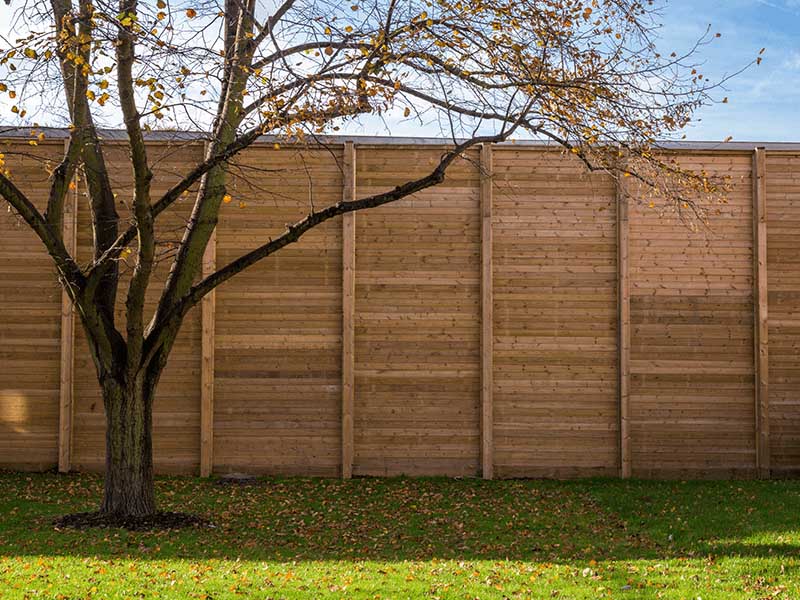

The Jakoustic® Reflective acoustic barrier was first created in 2004, and has stayed true to the original design ever since thanks to its excellent noise-reducing properties, attractive timber appearance, enhanced privacy due to its solid construction, and increased security from the flat, anti-climb profile.

The acoustic barrier works by reflecting noise away from its carefully developed profile which is created from heavy section planed timber V shaped boards that slot together to minimise gaps that sound could travel through.

Offering up to 28dB* in noise reduction, it is an ideal solution for schools, commercial sites and residential properties.

25 year Jakcure® guarantee

*Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793-2:1998 Category = B3 Laboratory sound reduction 28 dB Superficial mass 25kg/m²

Jakoustic® Reflective Features

  • Unique tuning fork design posts
  • Attractive timber structure with a planed finish throughout
  • Anti climb and scale design
  • High privacy barrier
  • Special fixings clamp the acoustic boards between posts
  • Can accommodate changes in level or profile
  • Complete with capping and counter rail
  • Up to 28 dB in noise*
  • Category B3 rating
  • 34mm thick "V" boards
  • Matching pedestrian, swing and tracked sliding gates

Applications

✔ Residential properties

✔ Commercial properties

✔ Construction sites

✔ Sports venues

✔ Schools

Gates

To really benefit from a noise reducing solution, any gates that are required should match the specification of the acoustic barrier. We manufacture swing and sliding gates with manual and automated operating options to match this product.

Acoustic Gates

Jakoustic® Reflective Specifications

Heights from 1.8m-4.0m available as standard. Heights up to 2.0m supplied with timber tuning fork posts. Heights of 2.1m-4.0m include timber tuning fork posts and galvanised steel spur post reinforcements, powder coated black as standard.

For heights over 4m, see Jakoustic® Commercial and Highway.

Height (mm) Post Centres (mm)
 Spur Post (mm) Post Length (mm)
2000  2410 N/A 2900
2500 2410 2000 3400

3000

2410 2500

3900

3500 2410 2700 4400
4000 2410 3300 4900



Post options

  • Timber tuning fork posts for heights up to 2m
  • Timber tuning fork posts with steel spur post supports for heights up to 4m
  • For heights above 4m, see Jakoustic® Commercial and Highway, which is installed on steel I-beams
  • Acoustic CPD available

    Jacksons Fencing offers a free CPD seminar on acoustic fencing and environmental noise pollution, accredited by RIBA, to book please email cpd@jacksons-fencing.co.uk.

    Document Downloads

    Download specification documents, drawings and case studies for this product

    Acoustic Barrier Range

    We manufacture a range of acoustic barriers to suit the requirements of different applications, all with a 25 year guarantee.
