Welded mesh for higher risk applications

EuroGuard® Extra | Welded Mesh Panel

EuroGuard Extra® welded mesh panels are unique to Jacksons and feature thicker vertical and horizontal wires and smaller mesh aperture are perfect for higher risk applications where security is a priority. EuroGuard Extra has "V" profile reinforcing folds which increase the panels rigidity and strength

Enquire about this product

Get a quote for this productSpecify Us
Mesh-Fence

Compare this product

Use our comparison tool to help you compare features, applications, heights and finishes of this product with our wider product range.

EuroGuard® Extra Features

  • Posts can be customised for Barbed wire / Razor wire / Rota Spike®/ Alarm-aFence®

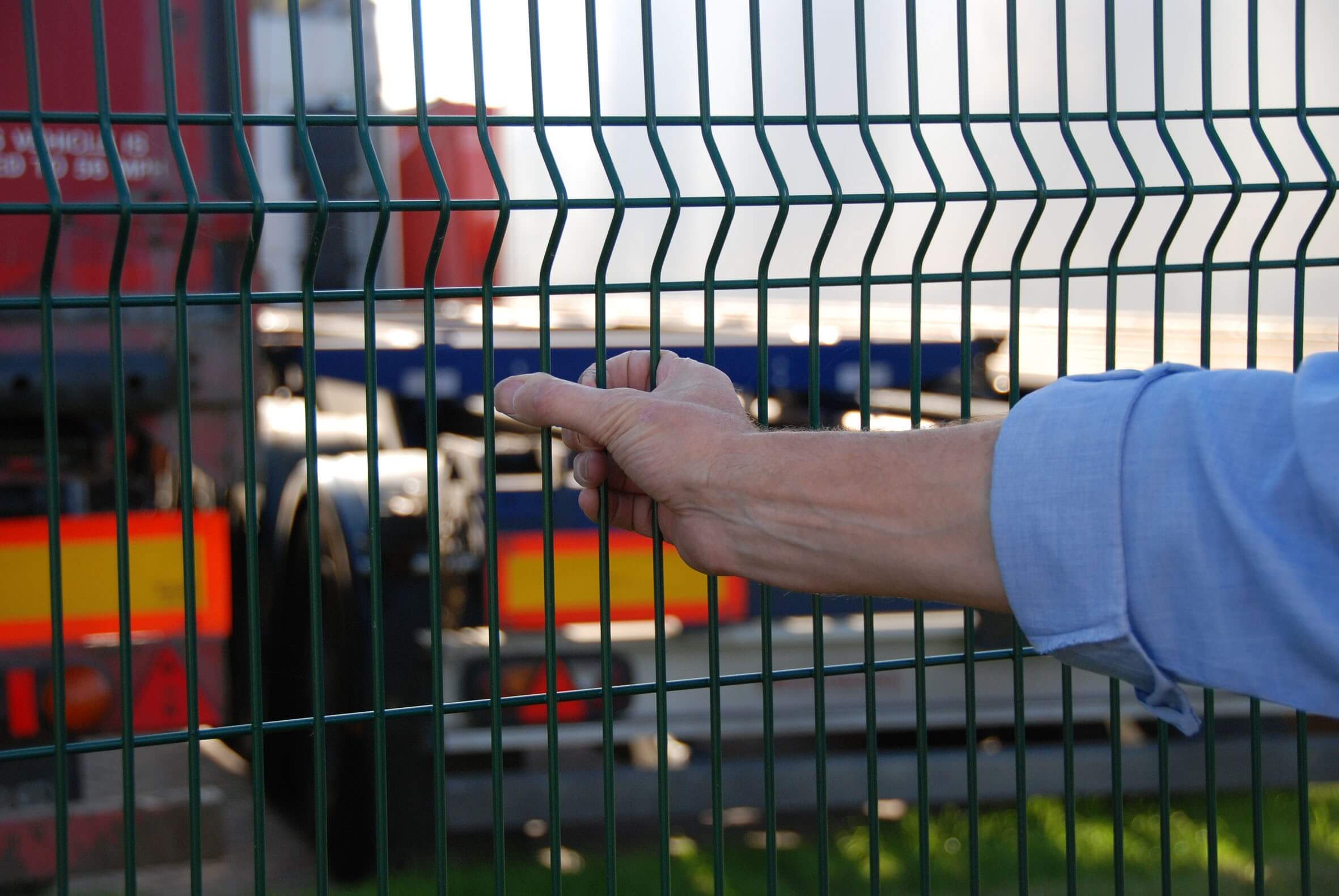

  • Mesh 200 x 30mm centres with 25mm gap, 5mm wire (wire measured prior coating)
  • Anti-climb design

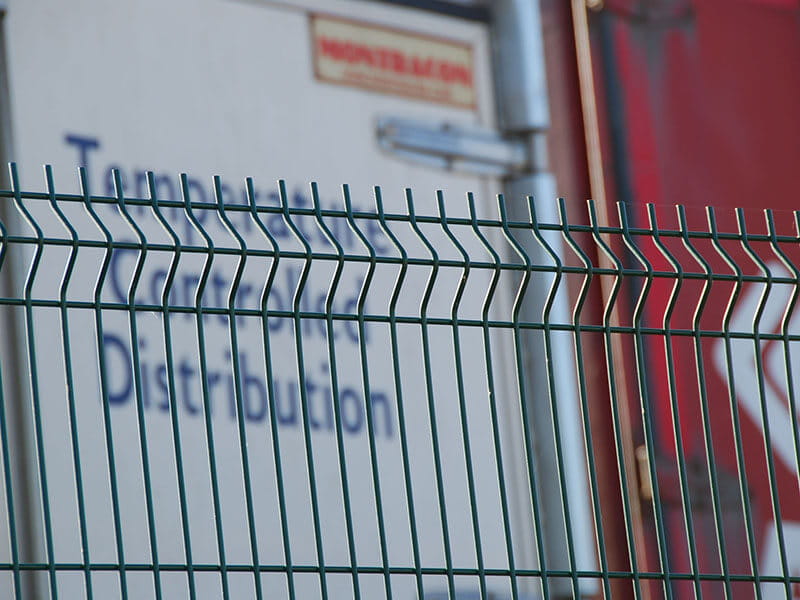

  • V mesh design offers strength and security without an intimidating appearance

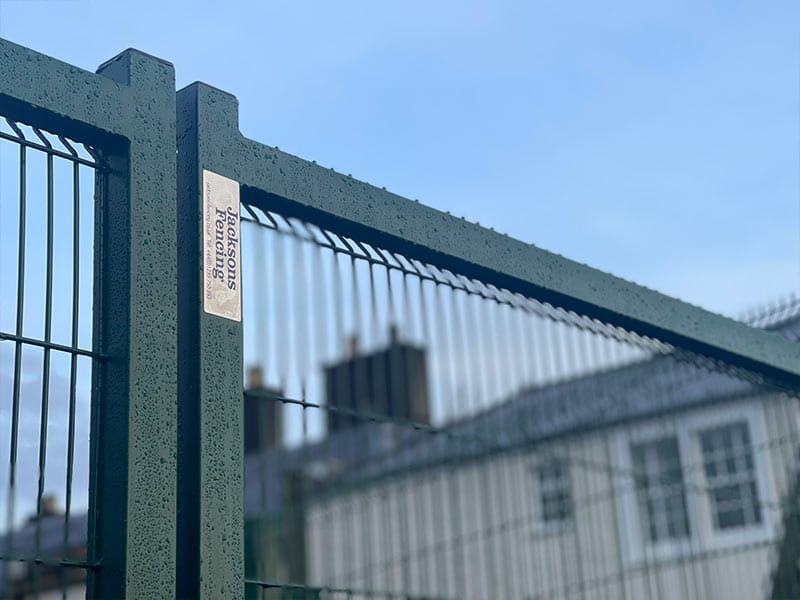

  • Unique vandal-proof panel to post fixings
  • 2 - 4 reinforcement folds according to height
  • Can be stepped to accommodate sloping ground

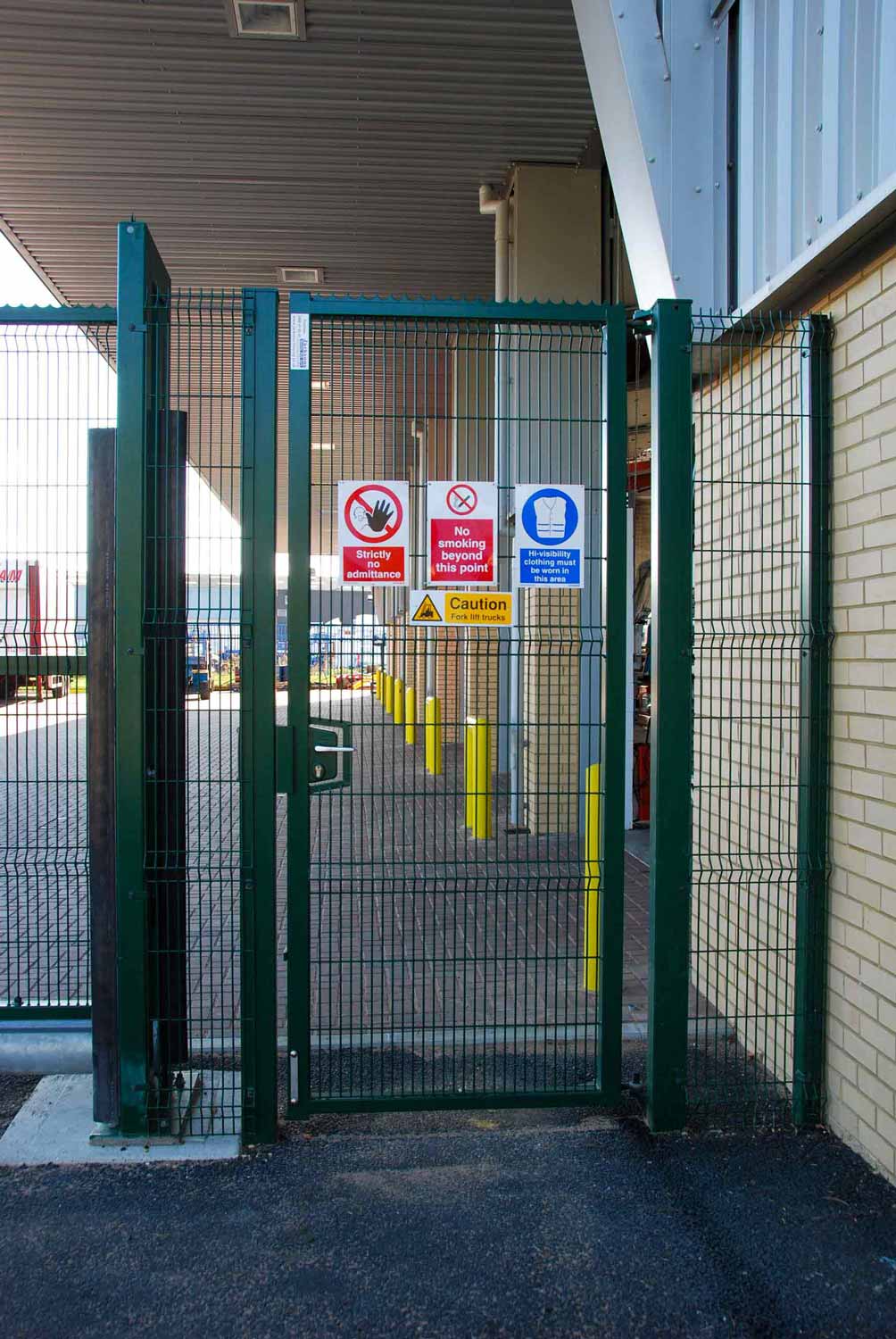

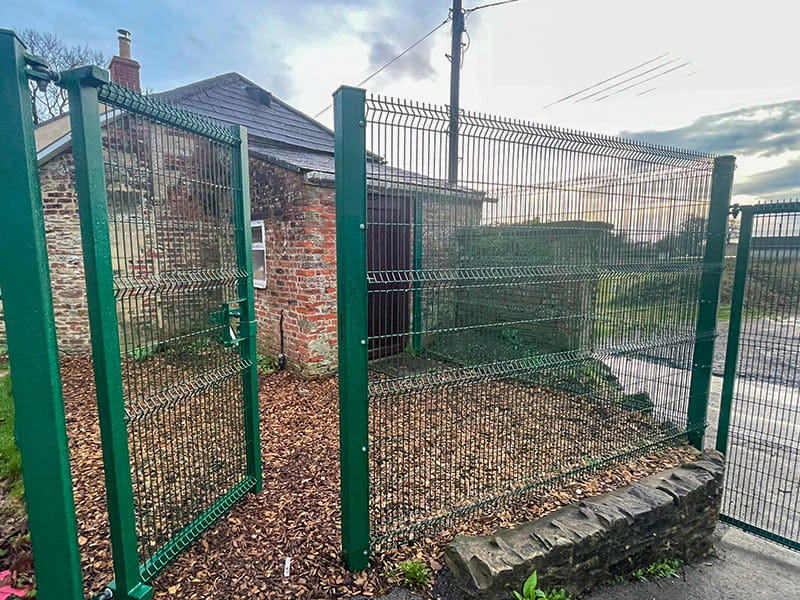

  • Matching single leaf and double leaf gates available

Product page logo banner no sbd

Panels

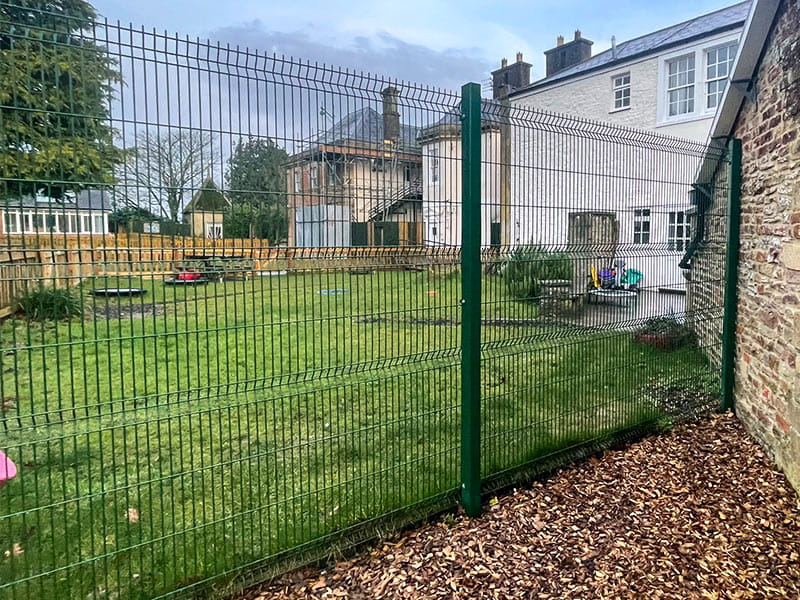

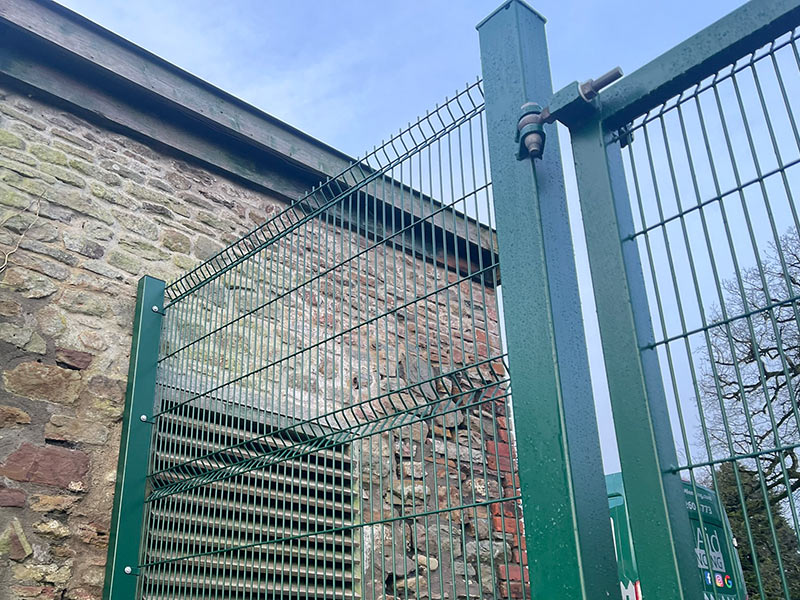

Mesh panels with 'V' profile with 2-4 reinforcing folds (subject to height) are made using 5mm horizontal and vertical wires with 200 x 30mm wire centres, welded at intersections which are Galfan zinc alloy treated as standard.

Gates

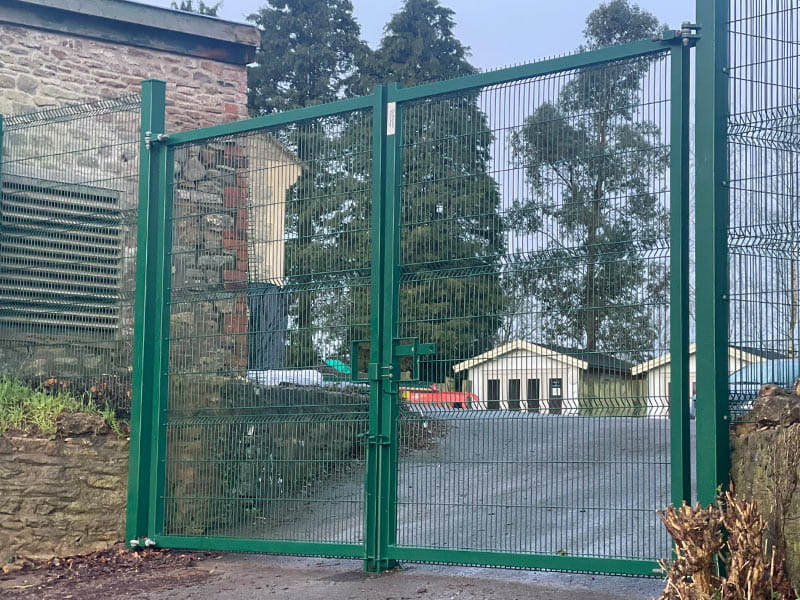

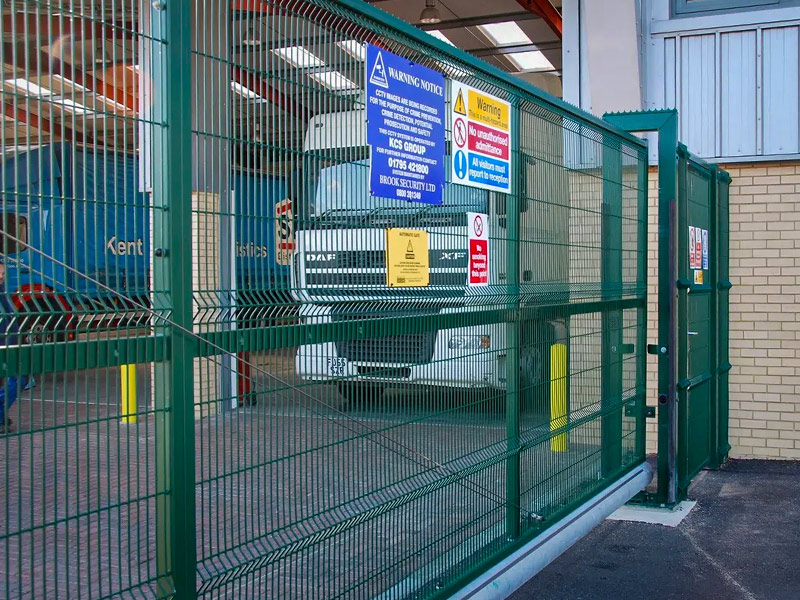

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Browse Gates

EuroGuard® Extra Panel Specifications

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
2010 3054 80 x 60 2800
2410 3054 80 x 60 3300

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes
  • Panels are Galfan® zinc alloy coated
  • Galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Galvanised and powder coated to non standard BS or RAL to special order
  • Marine coat for installations within 500m of salt water or an estuary
  • Explore our finishes

    Finishes

    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing

    Welded Mesh Panel Range

    We have a wide range of welded mesh panels, all with a 25 year guarantee. Browse individual products or view the full range below.
