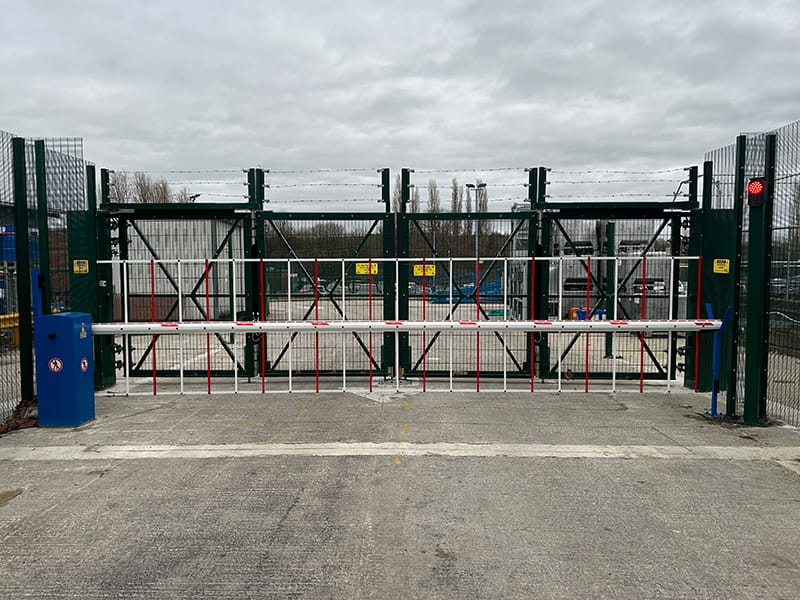

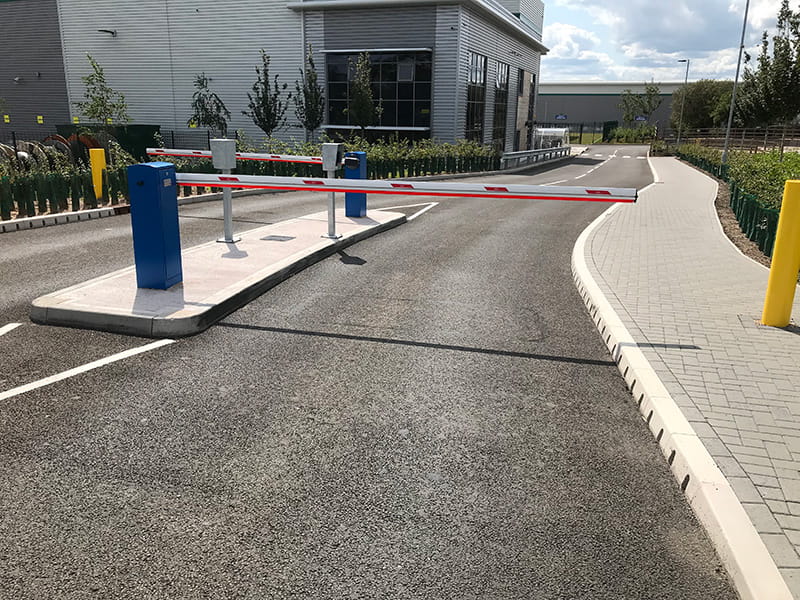

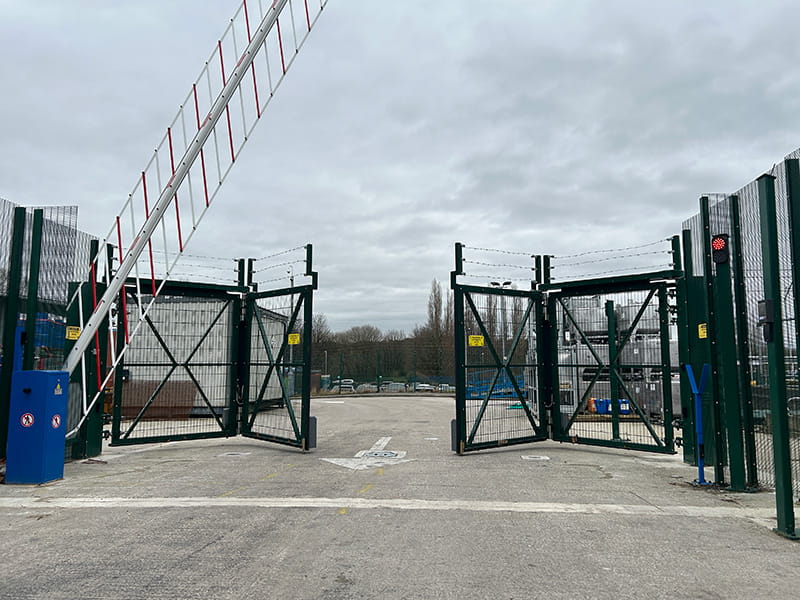

Car Park Barriers | Traffic Arm Barriers

We offer a complete range of traffic and car park barriers with boom lengths of up to 8m with customisable options to cover a multitude of traffic control applications.

Our car park barriers are an ideal solution in controlling access to unauthorised areas, available with LED red/green boom lights, and top and bottom skirts.

Discover our full range of parking barriers and access control systems, including bollards, blockers and turnstiles.

Enquire about this product

Get a quote for this productSpecify Us
Car Park Barriers Features

  • Powder coated cabinet
  • White and red boom (for heavy duty barriers)
  • Aluminium and red boom (for medium duty barriers)
  • Manual release
  • Supplied fully CE accredited, conforms to the Machinery Directive 2006/46/EC
  • Maintenance / service package available

Product page logo banner no sbd

Options include

  • Bottom skirt (up to 4m)
  • Boom light
  • Boom locking
  • Safety photocells
  • Articulated arms for restricted headroom applications (up to 5m arm)
  • Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
  • Thinking of automating your gate or barrier?

    Jacksons Fencing has been automating gates since 1991 and is the expert in safe, reliable gate automation. All of our gate automation engineers are DHF qualified to a minimum of level 2.

    Gate automation

    Traffic Arm Barrier Up To 8m Specification

    Features
    Barrier size  360 x 400 x 1115mm (h); steel Fe360 (S 235 JR), or AISI304 or AISI316
    Road passage 4-8m
     Finishing Cataphoresis, powder paint RAL 3020, other colours available at extra cost
    Foundation Concrete, 600 x 500 x 400mm (h)
    Motor  Self-cooled oil-bath gear reduction, rod/crank
     Opening time From 4.5 to 6 seconds (adjustable)
     Extras LED lights on the arm, top and bottom skirts (size restrictions apply)
     Power consumption 44W (50Hz)

    For full specification details download the specification sheet.
