Boundary, demarcation steel constructed fence

Steel Estate Railings

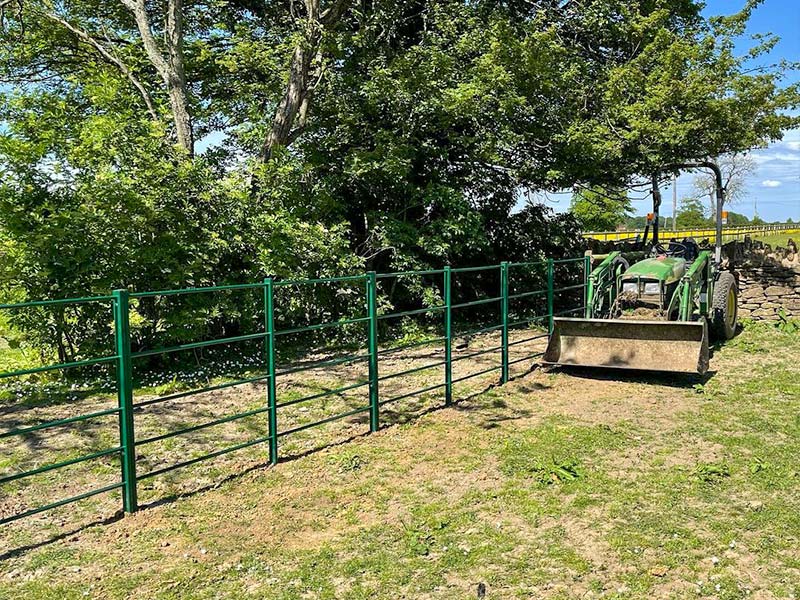

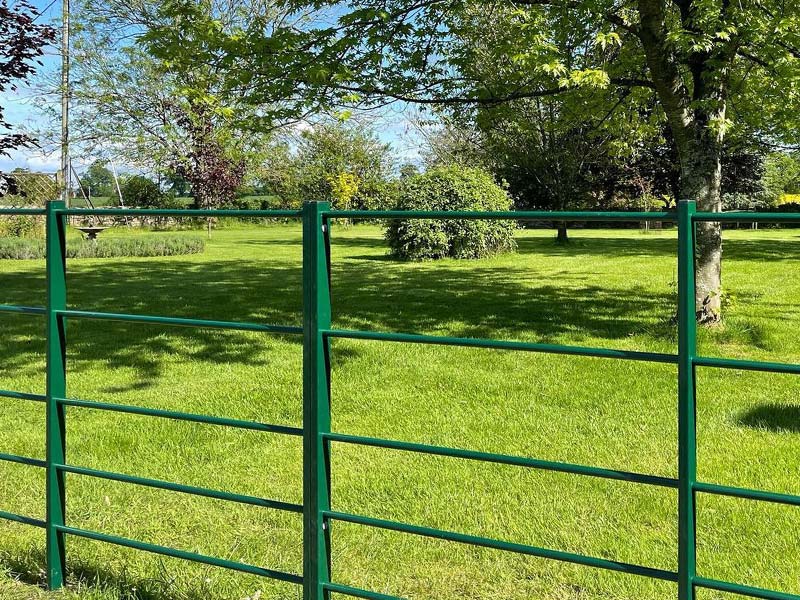

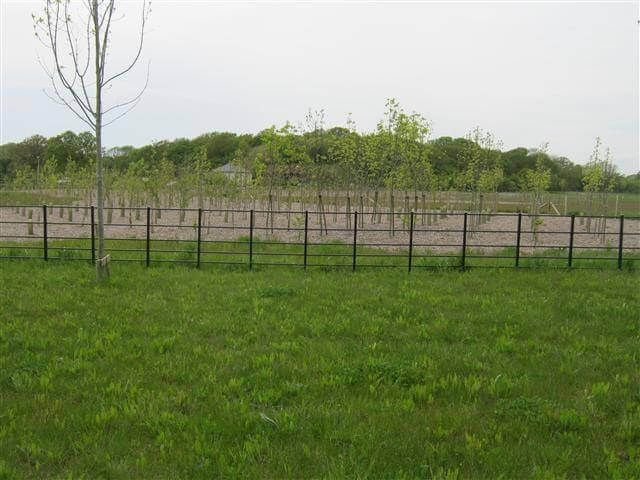

Our metal estate fencing includes steel estate railings; a strong, adaptable and cost effective replacement for traditional flat bar railings. With a similar design to traditional period fencing used in large estate parks or stately residential homes and estates, we aim to maintain an authentic feel throughout your property. Our estate fence panels have been galvanised for a virtually maintenance free life, using galvanised or stainless steel fixings with our tubular construction for extra strength.

Our estate railing fence panels are stronger than traditional flat bar railings and are covered by our leading guarantee, with a galvanised finish as standard, and powder coating as an optional extra.

Estate Railings correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.

Enquire about this product

Get a quote for this productSpecify Us
BuyOnlineIcon

Buy This Product Online

You can buy this product online at www.jacksons-fencing.co.uk

Buy Online

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

Estate Railings Features

  • Tubular and rectangular hollow section construction
  • All fittings galvanised or stainless steel

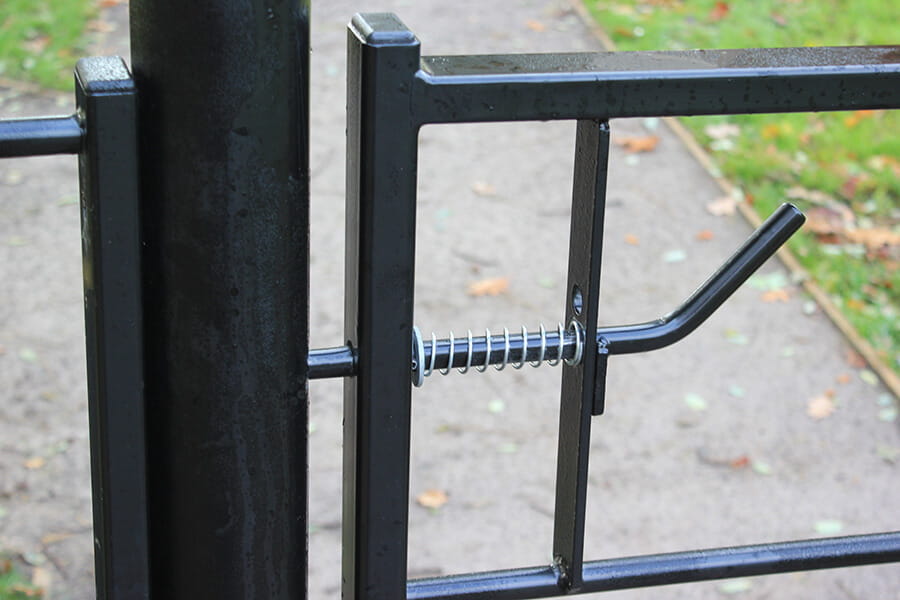

  • Matching single leaf and double leaf gates available

Product page logo banner no sbd

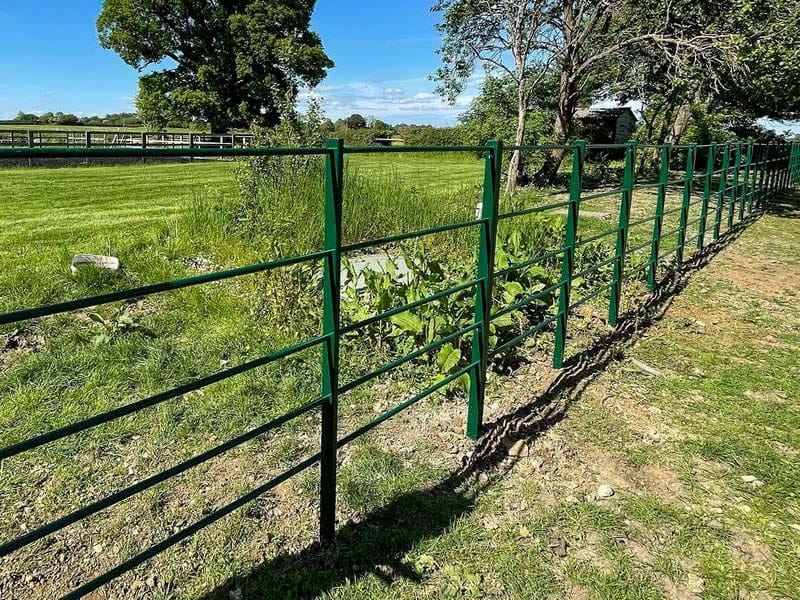

Panels

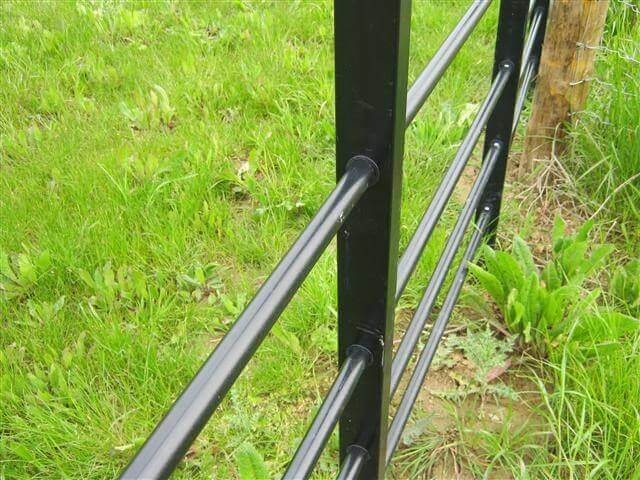

Estate railings are constructed from 50 x 25 x 2 Rectangular Hollow Section posts with ø19mm circular hollow section rails, with overall panel width at 1980mm.

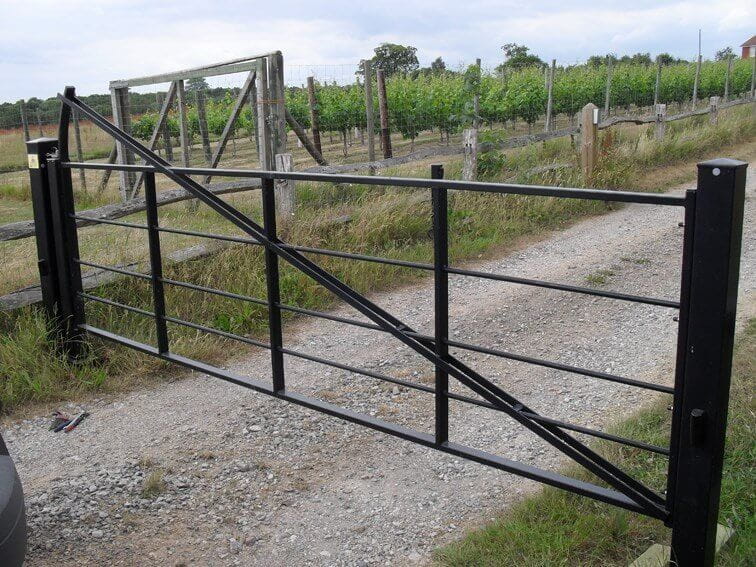

Gates

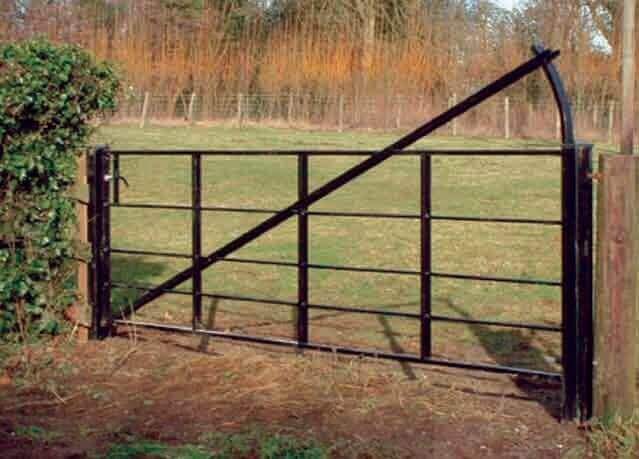

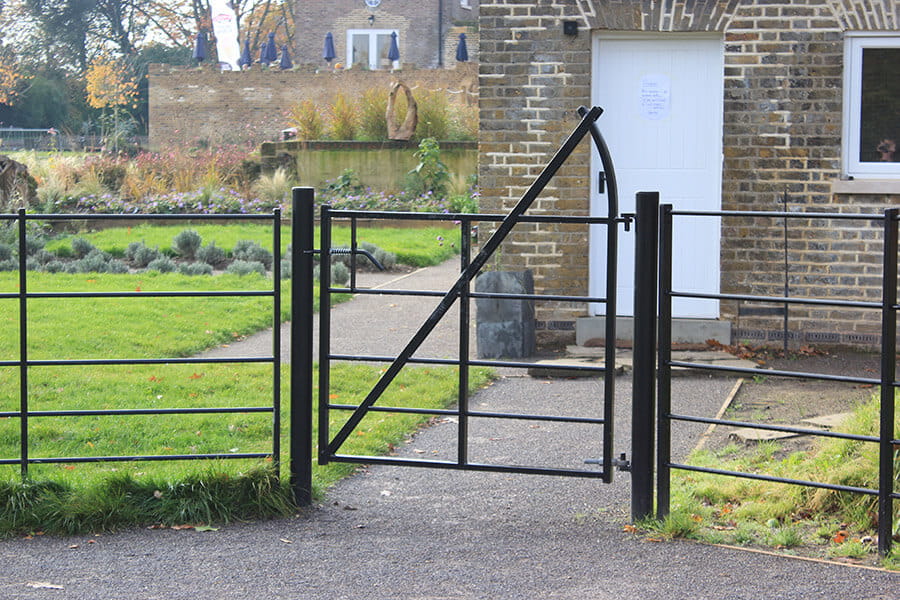

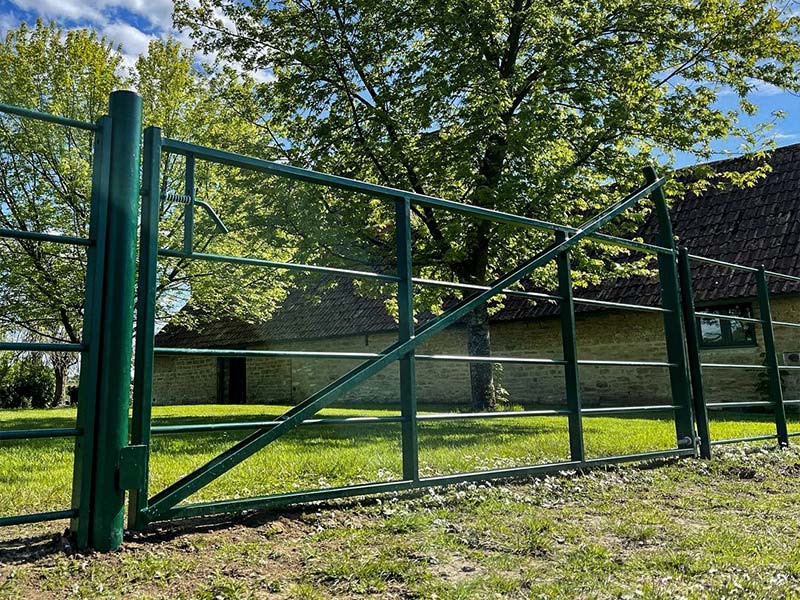

Matching single leaf, double leaf, swing, sliding and bi-folding gates available.

Estate Railings Specification

Height (mm) Overall Panel Width(mm)
Post Dimensions (mm)
Rails (mm)
1200 2000 50 x 25 19Ø

Gate Specification

Height (mm) Width (mm)
1215 1200
1215 3000
1215  3600

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes
  • Hot dip galvanised to BS EN 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Powder coating to non standard BS or RAL to special order
  • Marine coating for applications near sea water (optional extra)
  • Explore our finishes below

    Finishes

    Standard Colours

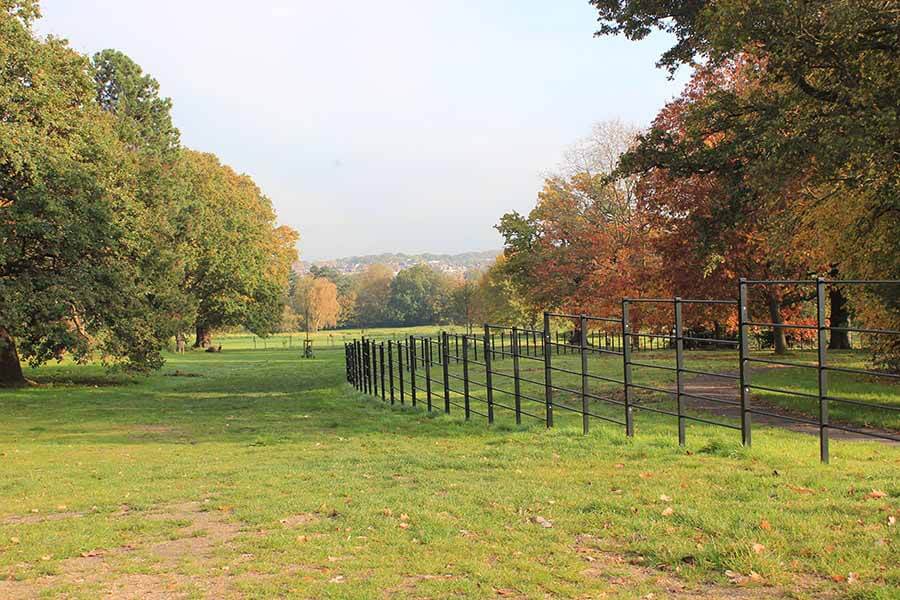

  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing

    Metal Railings Range

    We manufacture a range of metal railings suitable for different applications, all with a 25 year guarantee.
