Also known as Ped Guard Rail

Pedestrian Guard Rails

Specifically designed for highway applications, our guard rails provide an effective roadside barrier for pedestrian safety, while allowing good visibility from a motorist's view point through the vertical bar designs.

The welded hollow tubular rail and solid pale construction is extremely strong and features a bolt-together design for ease of installation or replacement.

The guardrail barrier is hot dip galvanised to BS EN ISO 1461 as standard with options for posts including: over length set in concrete, base plated to bolt down onto concrete or cranked to suit wall mounting.

Our pedestrian guard rails are available in three styles: standard, see-through, and staggered. Please specify which option you require upon ordering.

Pedestrian Guard Rails correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

Pedestrian Guard Rail Features

  • Can be manufactured to suit gradients and radius
  • Custom designs available
  • Conforms to BS 7818:1995 Class 1

Product page logo banner no sbd


The railing panels are available in two types with the option of inline or staggered pales to suit different applications:

  1. ‘Standard', with inline pales from top to bottom

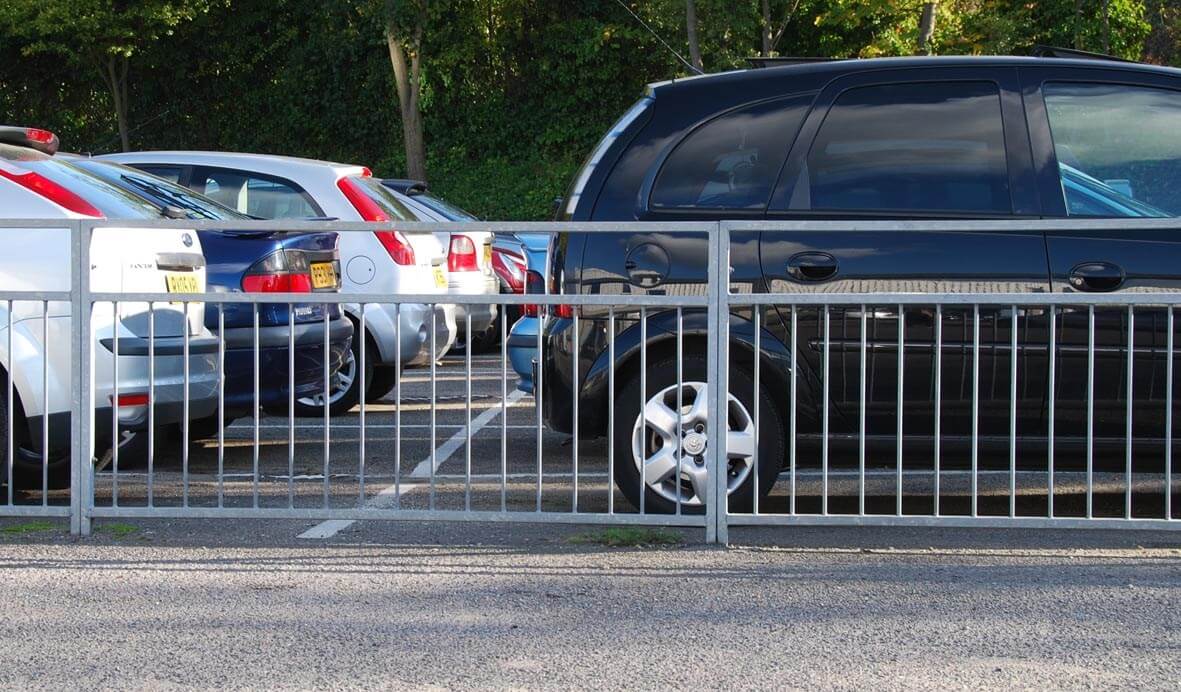

  2. ‘See-through', with inline pales and clear visibility slot below top rail, providing increased vision for motorists.
  3.  Staggered, infill bars are staggered


Matching single leaf, double leaf, swing, sliding and bi-folding gates available.

Pedestrian Guard Rails Specification

Height (mm) Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
1100 1000 50 x 30 1370
1100 1800  50 x 30 1370
1100  2000  50 x 30  1370

Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes
  • Hot dip galvanised to BS EN 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Powder coating to non standard BS or RAL to special order
  • Marine coating for applications near sea water (optional extra)
  • Explore our finishes below


    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing

    Metal Railings Range

    We manufacture a range of metal railings suitable for different applications, all with a 25 year guarantee.
