High Security Mesh

Trident® Mesh 2 | High Security Fencing

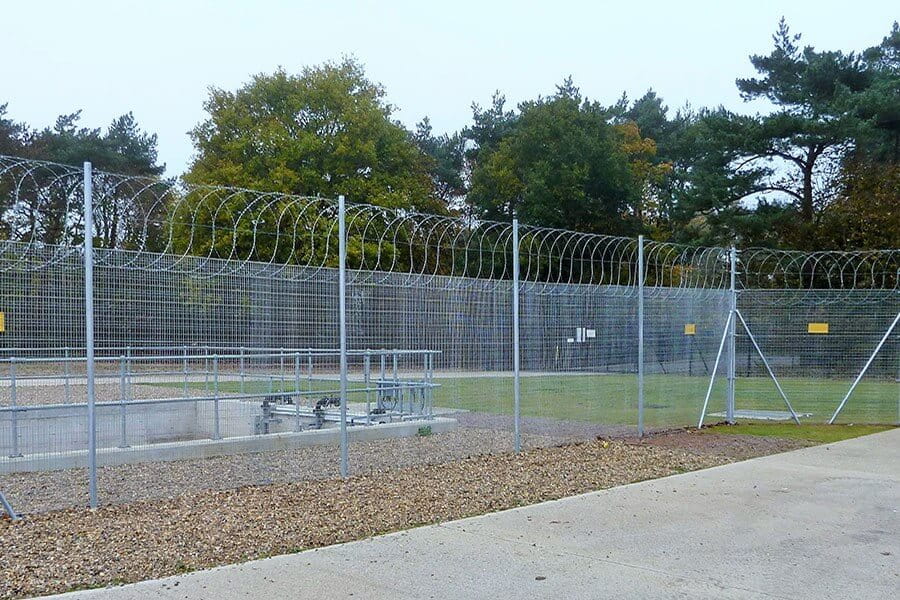

The Trident® Mesh 2 system has been designed to provide the performance of a conventional Class 2, 75mm x 25mm galvanised, welded mesh fence but with two important additional benefits: significantly reduced installation times, significantly reduced costs.This rapidly deployed fence system employs our unique installation process for all intermediate posts which mechanically drives the posts in place on a cushion of air in a single operation. Only the end and corner posts are set in concrete foundations.

The mesh is fixed to end/corner posts with stretcher bars with tamper proof fittings and tensioned with line wires to ensure the mesh stays taut across its face.

25 year service life guarantee

Trident® Mesh 2 Features

  • Driven intermediate posts
  • Rapid deployment security fence
  • complete with 3 row barbed wire topping
  • Stretcher bar fixings at end and corner posts fro strength and tamper resistance



Panels

75mm x 25mm galvanised welded mesh fence with 3 rows of barbed wire topping or coil of razor

Gates

Matching single leaf and double leaf gates available.

Trident® Mesh 2  Panel Specifications


Height (mm) Post Centres (mm)
Post Dimensions (mm)
Topping
3000 3000 Dimensions to suit fence 600

*This product is CPNI approved at the tested height, other heights/specifications are available for this product on request

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting

Standard Finishes

  • Hot dip galvanised to BS EN ISO1461 as standard

Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
