Trident® Securi-Mesh® Plus System

The climb resistant double layer mesh with its small apertures and welds at each intersection eliminates foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand and portable power cutting tools.

25 year service life guarantee

Trident® Securi-Mesh Plus Features

  • Staggered double skin mesh panels and wire welded at every intersection
  • Overlapped by a minimum of 75mm at posts to maintain integrity of protection
  • Posts can be customised for barbed wire / razor wire / Rota Spike® / Alarm-aFence®
  • Anti climb design



Panels

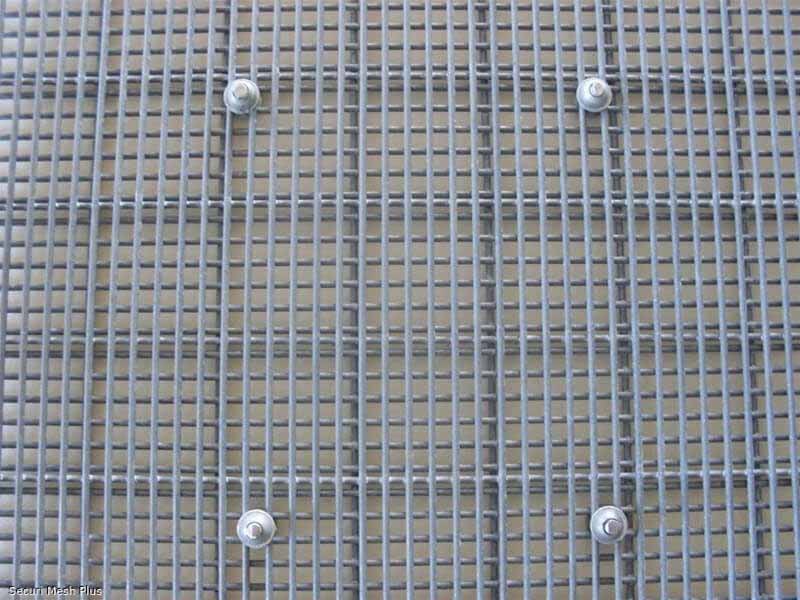

Double Skin of 76.2mm x 12.7mm resistance mesh

Gates

Matching single leaf and double leaf gates available.

Trident® Securi-Mesh® Plus  Panel Specifications


Height (mm) Post Centres (mm)
Post Dimensions (mm)
Mesh
2500-5200 2440 Dimensions to suit fence Double skin of 76.2 x 12.7mm resistance mesh

  • Double clad to 2500mm high only
  • Dingle clad above 2500mm
  • *This product is CPNI approved at the tested height, other heights/specifications are available for this product on request

    Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes

    • Panels are Galfan zinc alloy coated as standard
    • Powder coated to BS EN 13438 at extra cost
    • Marine coat for installations within 500m of salt water or an estuary

    Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request
