Ornate and decorative security fencing
Ornamental Fencing Panels
Our Ornamental Fencing is designed to provide the aesthetic grace and form of traditional wrought iron railings with the strength and durability of galvanised or galvanised and powder coated steel. Whether in a parkland, corporate HQ, or gated community, our Ornamental Fencing panels add high levels of security to a classical design theme. We manufacture three styles of ornamental railings, with a choice of five different finials.
Ornamental Fencing correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
25 year service life guarantee
- Posts can be customised for Barbed wire / Razor wire / Rota Spike®/ Alarm-aFence®
- Pale spacing conforms to Building Regulations for anti-trap
- Panels can be manufactured to accommodate sloping ground
- Various mounting options including on wall, inset or free standing
- Matching single leaf and double leaf gates available

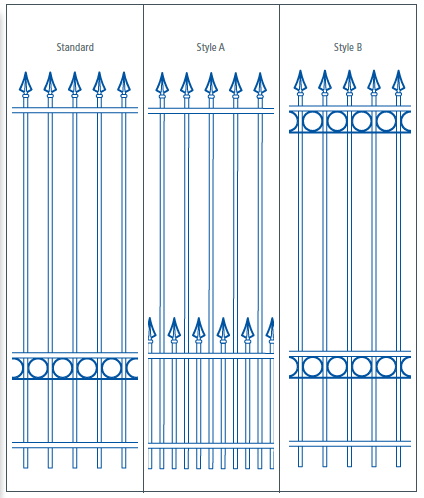

Panels have two horizontal rectangular hollow section rails 50 x 25mm; walls 2mm thick. The vertical round hollow section 19mm pales are passed through the rails with standard spacing at 119mm centres and welded into position. We manufacture three different designs: standard, style A, and style B.
Ornamental Fencing Specifications
|Height (mm)||Post Centres (mm)
Post Dimensions (mm)
Overall Post Length (mm)
|1000||3000||60 x 60||1600|
|1200||3000||60 x 60||1800|
|1500||3000||60 x 60||2100|
|1800||3000||60 x 60||2500|
|2000||3000||60 x 60||2800|
|2500||3000||80 x 60||3300|
|3000||2400||80 x 60||3800|
Download specification documents, drawings and case studies for this product
