Bishop Luffa School chooses Jacksons to secure the perimeter of newly remodelled site

Project Overview

Bishop Luffa School

Chichester, West Sussex

Date Complete



At the end of 2017, Bishop Luffa School, a Church of England secondary school in Chichester, finished 18 months of renovation work to remodel an old building. The site underwent considerable development which involved creating a newly updated Humanities block and repositioning the main reception.

In order to keep the buildings secure, new perimeter fencing and gates was installed across the site, incorporating swipe-access readers to give the school greater control over entry and exit to the school site.

Jacksons Fencing Education Case studies

School Fencing and Gates

We have a wide range of fencing and gates suitable for use in schools, colleges, universities and playgrounds, including child-safe anti-trap designs and security rated solutions for schools in higher risk areas. Browse the range here.

Browse School Fencing and Gates

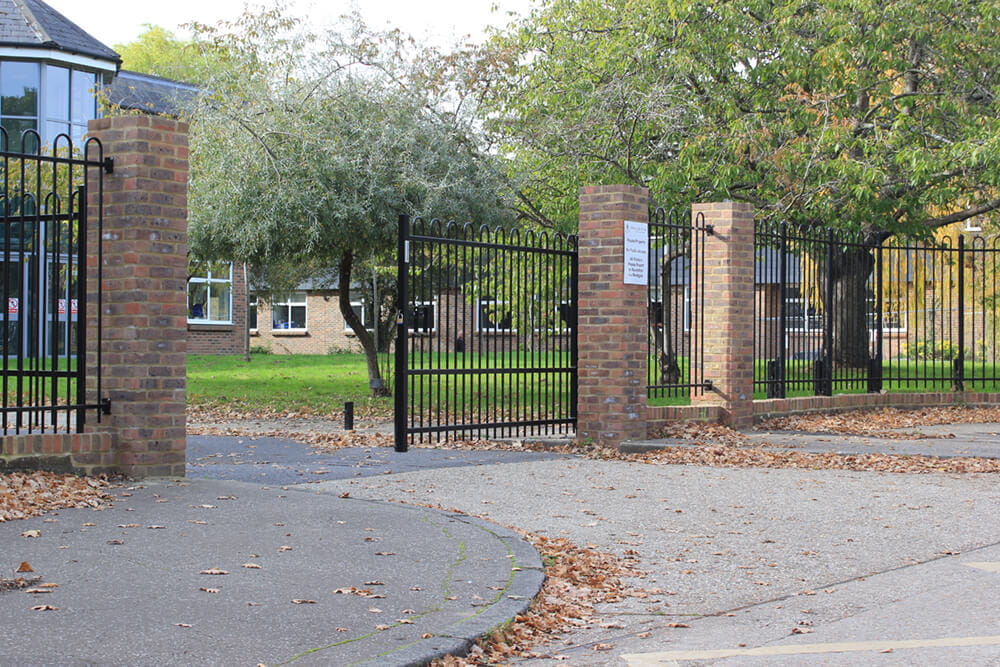

Around the perimeter of the school, Jacksons installed approximately 140 metres of 1.8m high Bow Top fencing, 3 metres of 1m high Bow Top fencing; polyester powder coated Black RAL 9005. In some areas, the fencing needed to be cranked to fit brick walls or ran in bays to suit the curve of the walls, providing the school with a consistent and attractive perimeter barrier. The decision to install Bow Top fencing was influenced by some of the features incorporated into its design, such as its pale-through-rail construction and unique vandal-proof fence panel to post connectors which help make the fence more secure.

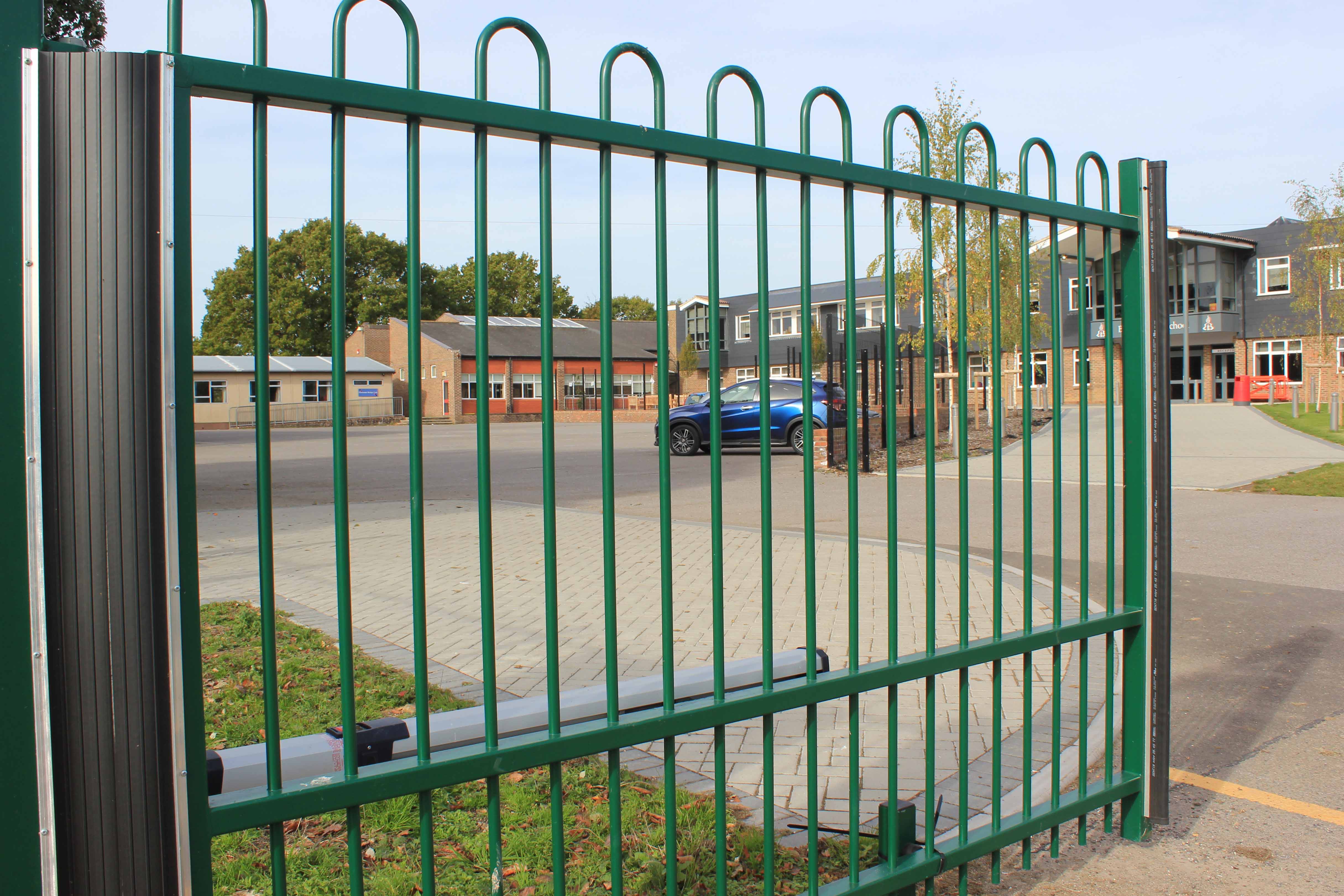

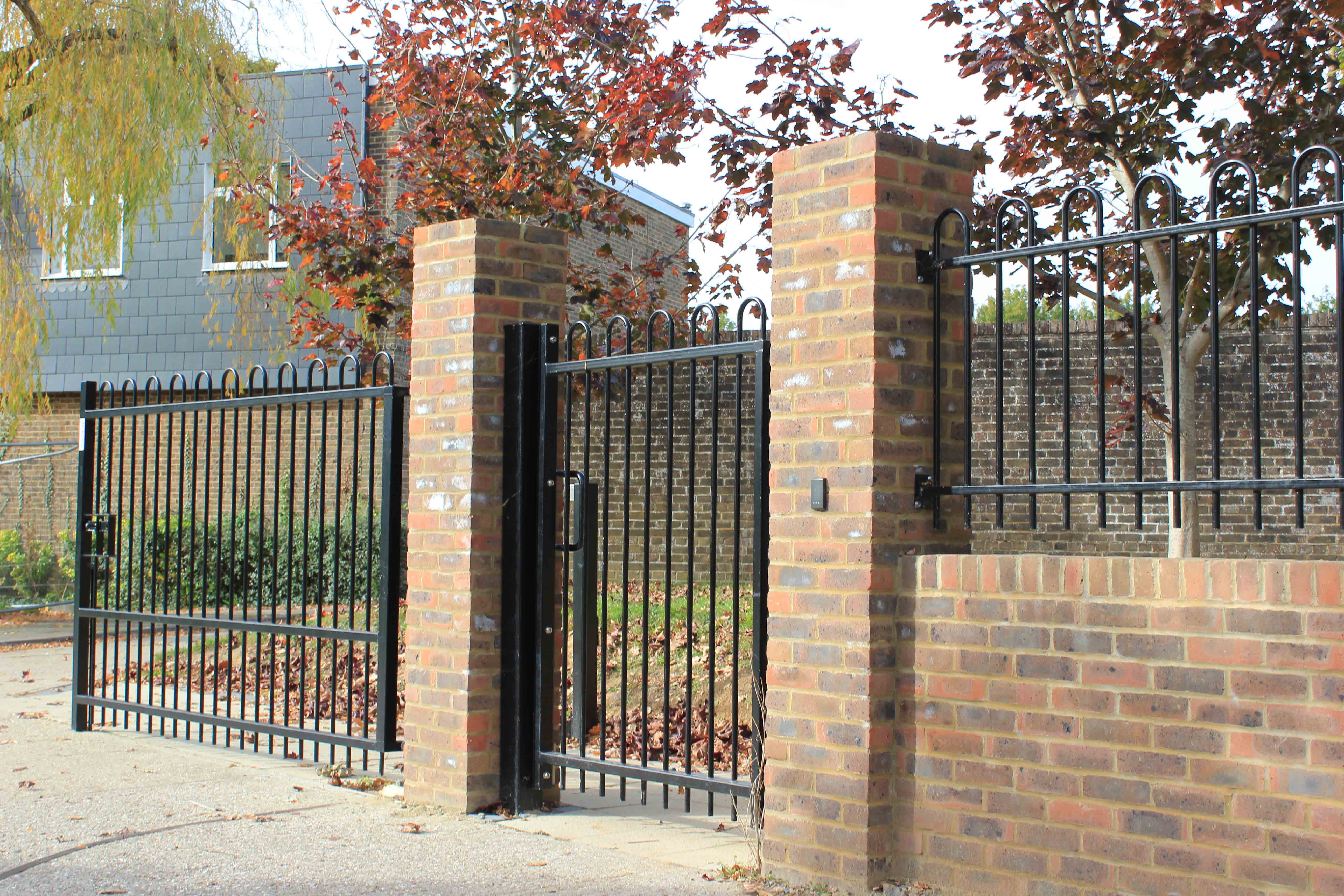

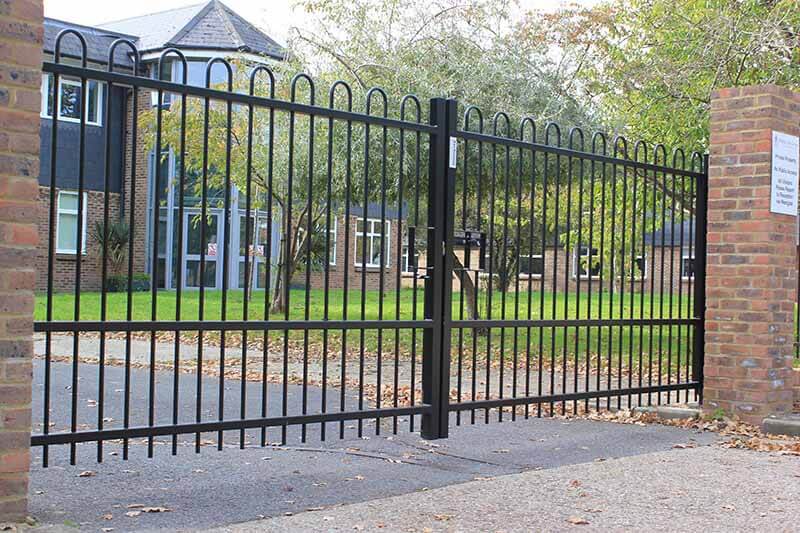

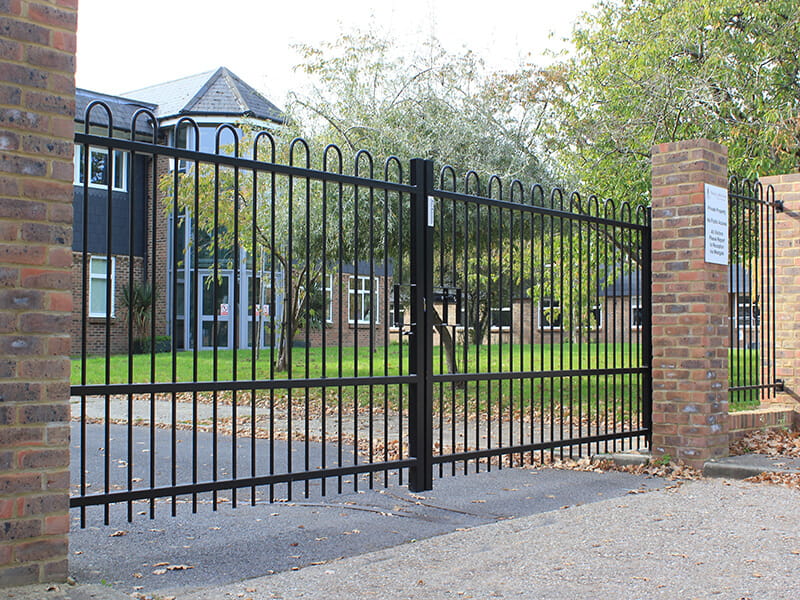

To provide separate access control for pedestrians and vehicles, 4 manual single leaf Bow Top gates and 3 double leaf Bow Top gates were installed, one of which was automated to restrict entry/access to the site.

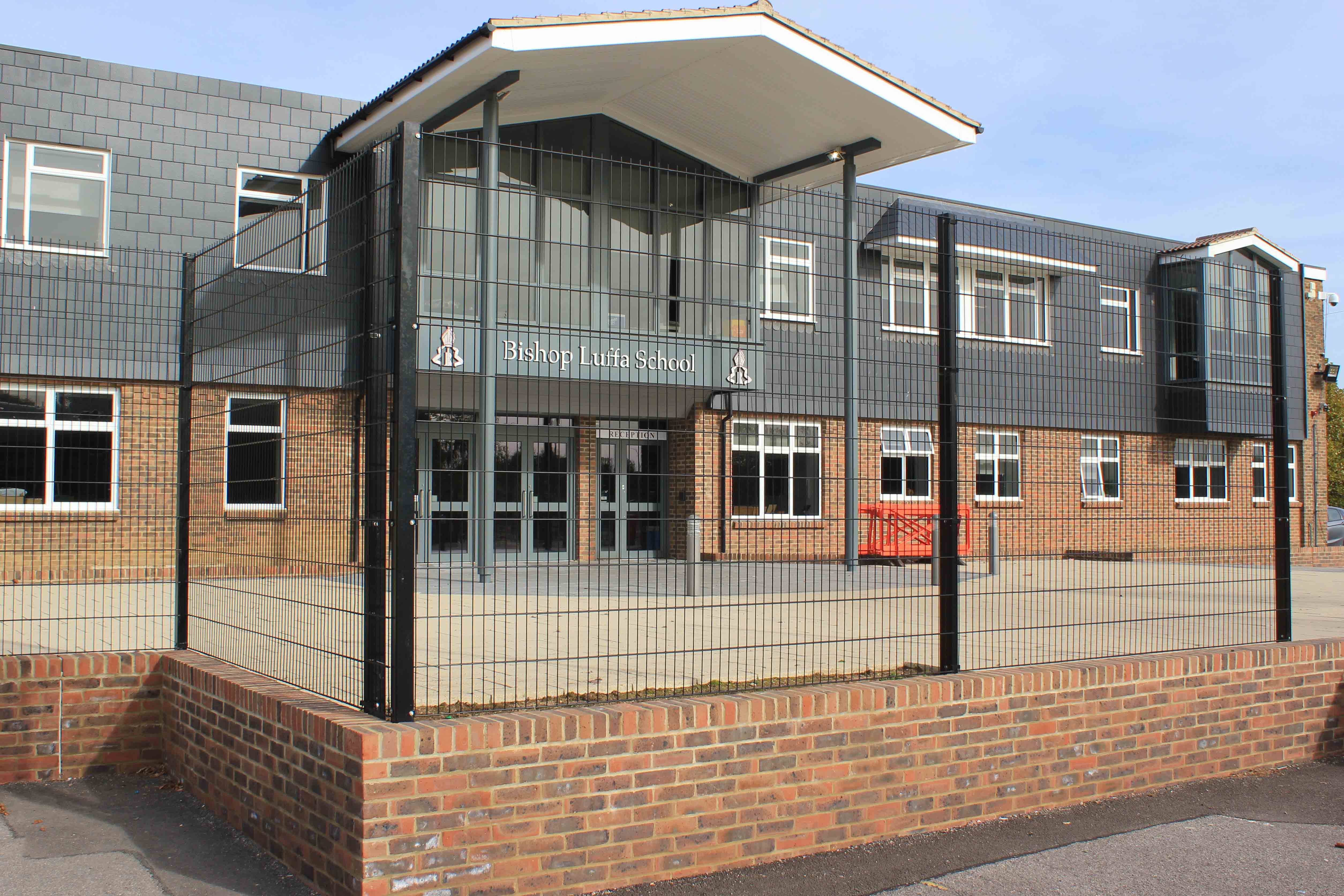

In addition to this, we supplied 26.6 metres of 1.8m high EuroGuard® Flatform Medium mesh fencing, and 38 metres of 2.4m high EuroGuard® Flatform Medium , along with 1 single leaf 2m wide EuroGuard® Flatform Heavy Gate polyester powder coated Black RAL 9005. EuroGuard® has a clean modern design which helps to create an open space which is ideally suited to the school environment, providing excellent durability and security whilst also carrying the Jacksons 25 year service life guarantee, ensuring longer life and lower lifetime cost.

Check out our related case studies below for more guidance on your education project:

Babraham Research Campus

West Thames College

Products Used


  • EuroGuard Flatform Fencing and Gates
  • Bow Top Fencing and Gates
  • Download

    Download Case Study

    Click here to download this case study in PDF format.
