RoSPA approved play area fencing

Anti Trap Bow Top Fencing

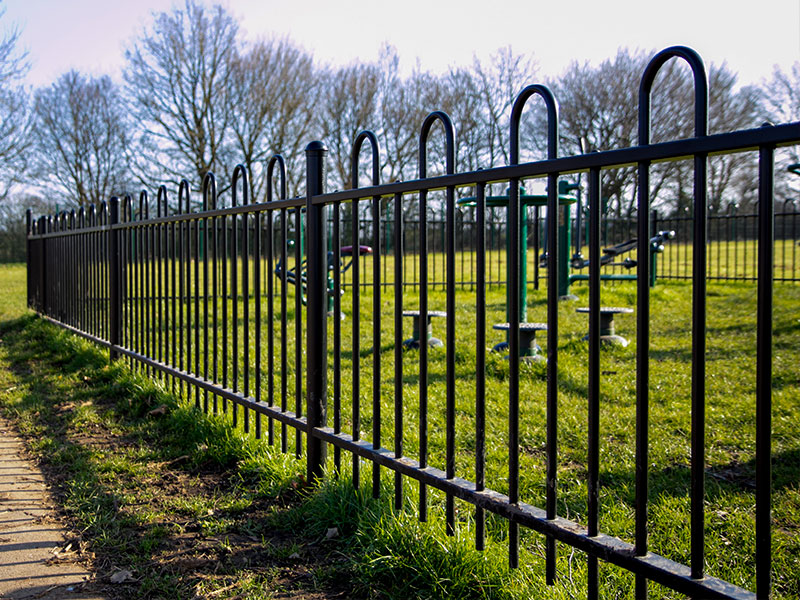

Anti Trap Bow Top fencing is designed to provide permanent protection for a variety of applications including schools, parks, and play areas. It features our welded tubular pale-through-rail design and vandal proof connectors to provide a strong structure without visible joints.

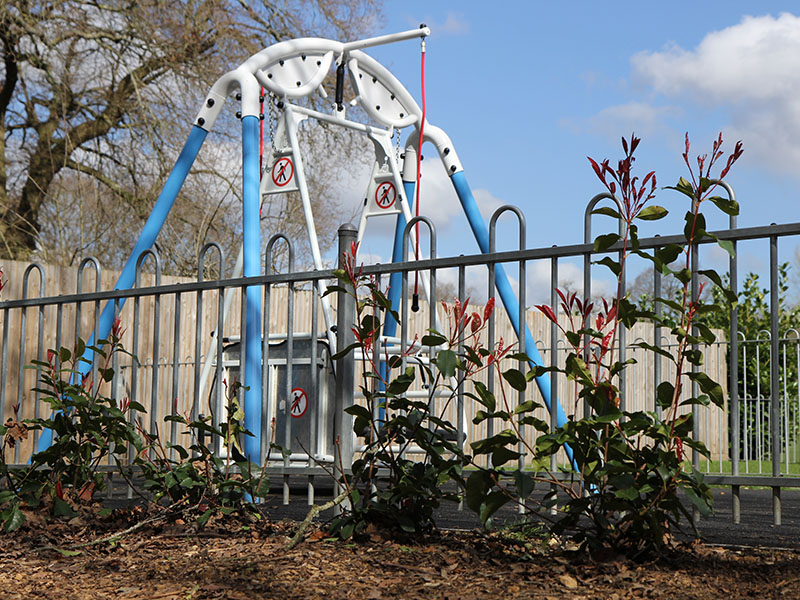

A key point in the design is the wider gap between each hoop above the top rail, to prevent children getting their heads, necks or limbs stuck between pales. The design conforms to playground standard BS EN 1176.

Anti Trap Bow Top Fencing correspond(s) to the generic  component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.

25 year service life guarantee

Enquire about this product

Get a quote for this productSpecify Us

installation-by-jacksons-250-250We provide nationwide installation for all of our security fencing, gates, and acoustic barriers. Installation is carried out by our experienced gangs who have extensive knowledge of our products and install to our premium standards. Let us know if you require installation when you make an enquiry using our product quote form or by calling us.

Anti Trap Bow Top Fencing Features

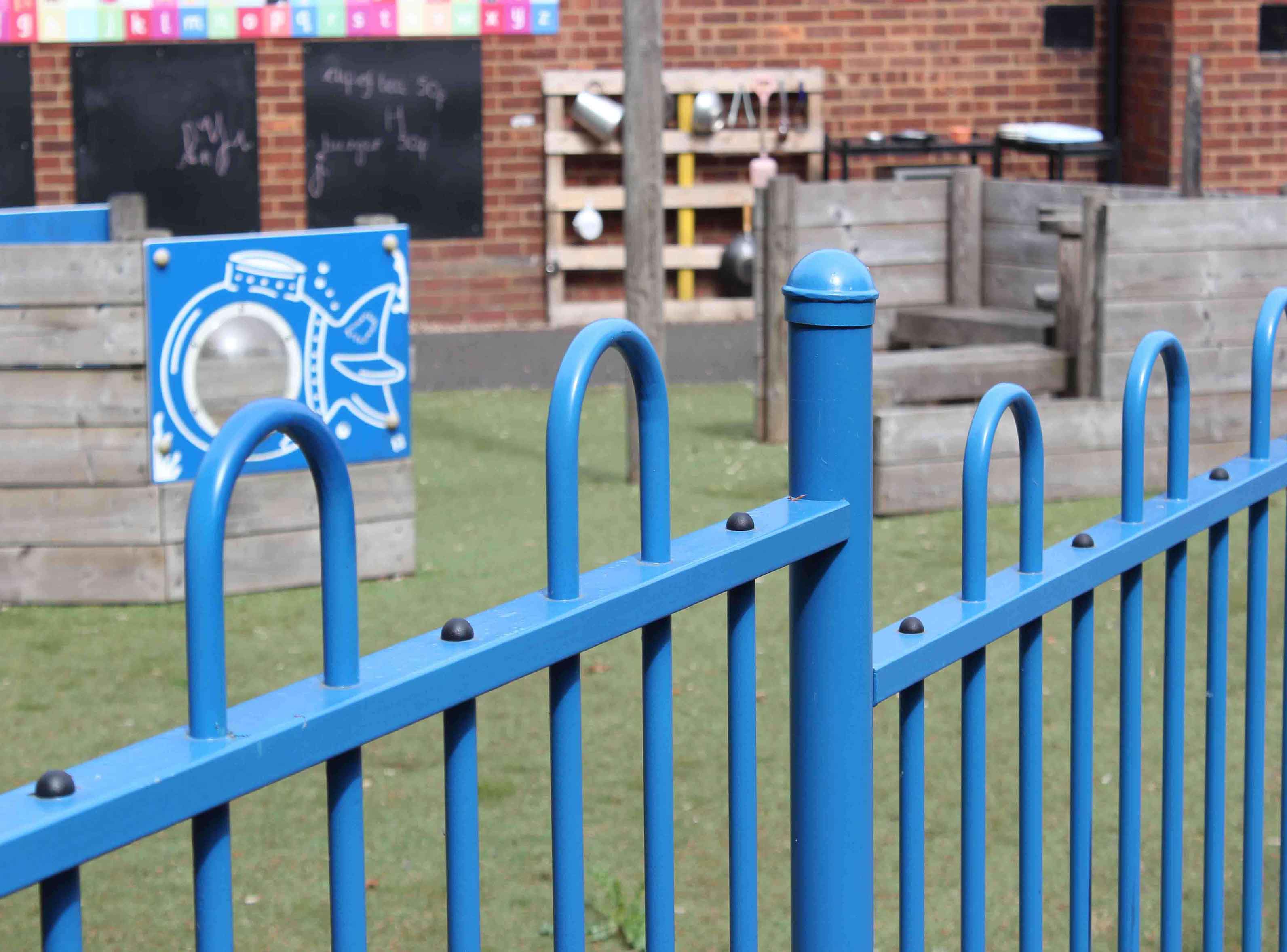

  • 19mm pales with domed top caps
  • 2737mm wide panels
  • Posts 60.3mm
  • Panels can be manufactured to accommodate sloping ground

Product page logo banner no sbd

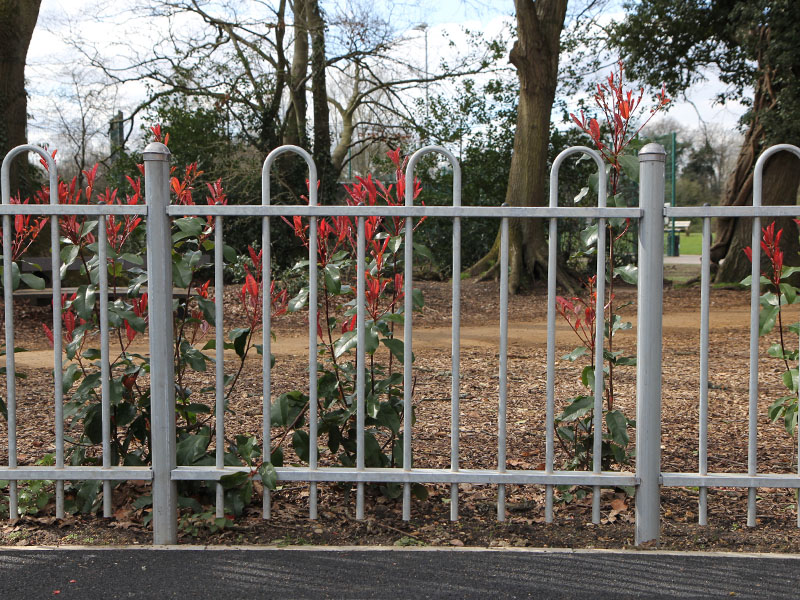

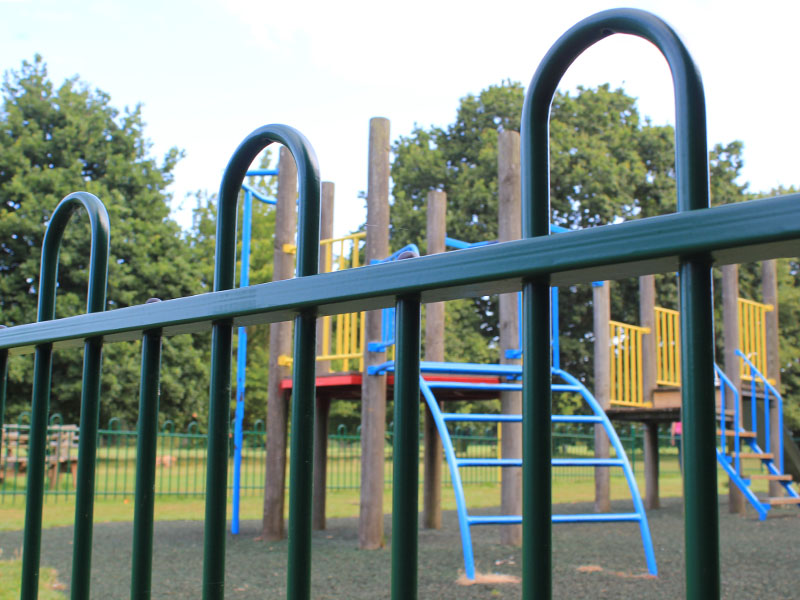

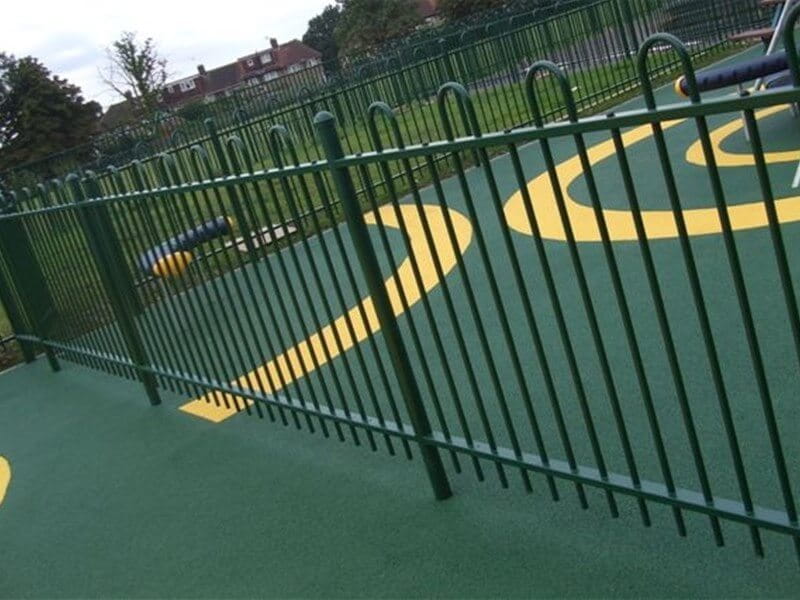

Two horizontal rails 50 x 25mm with vertical round hollow section 19mm pales are passed through the top and bottom rail welded into position. Every other bow with a pale is replaced with a domed plastic insert, creating a larger gap above the top of the rail, whilst keeping the gap between the paling inside the top and bottom rail under 100mm.


  • Matching single leaf and double leaf gates available.
  • Self closing operation for gates
  • Slide latch
  • View Gates

    Anti Trap Bow Top Fencing Specification

    Height (mm) Post Centres (mm)
    Post Dimensions (mm)
    Overall Post Length (mm)
    1000 2775 60.3 Ø 1500
    1200 2775 60.3 Ø 1800
    1500 2775 60.3 Ø 2100
    1800 2775 60.3 Ø 2500

    Post Options

  • Overlength set in concrete as standard
  • Baseplated to bolt down onto concrete
  • Cranked to suit wall mounting
  • Standard Finishes
  • Hot dip galvanised to BS EN 1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost
  • Powder coating to non standard BS or RAL to special order
  • Marine coating for applications near sea water (optional extra)
  • Explore our finishes below


    Standard Colours
  • Black RAL 9005
  • Green RAL 6005
  • Grey RAL 7012
  • Blue BS 20-C-40
  • Blue RAL 5010
  • Red RAL 3020
  • Yellow RAL 1018
  • Brown RAL 8017
  • White RAL 9010
  • Other colours are available on request

  • Standard powder coating colours:

    RAL colours steel fencing
    Case Studies

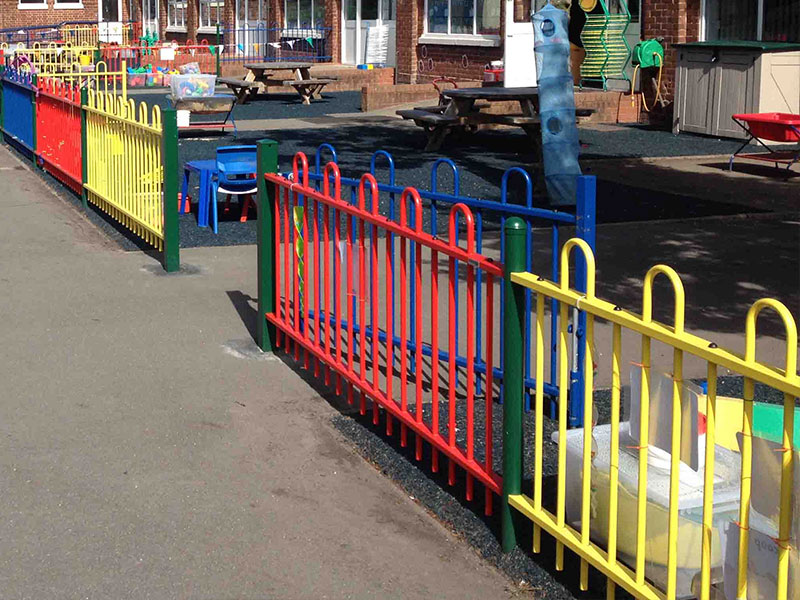

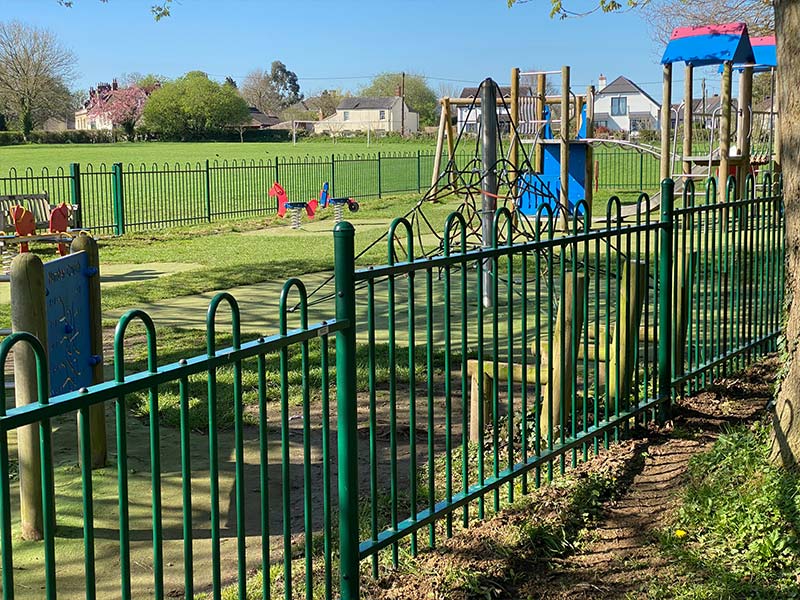

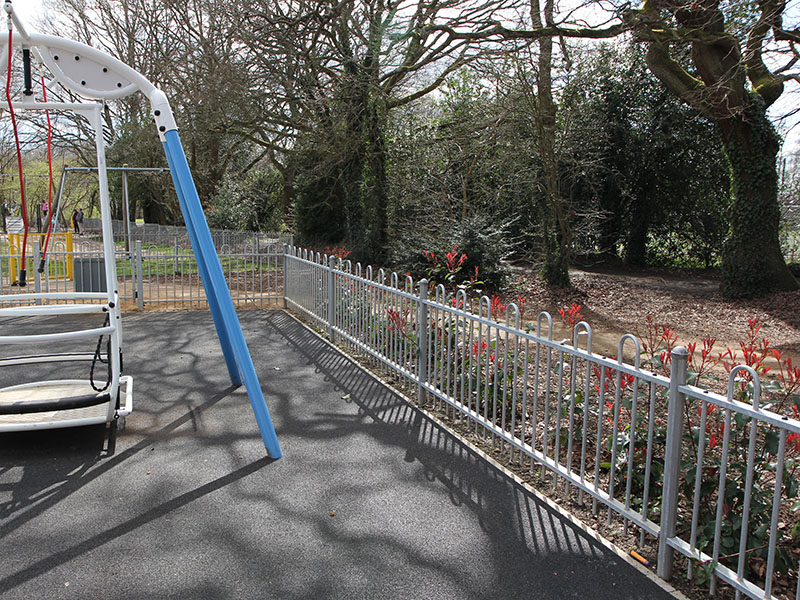

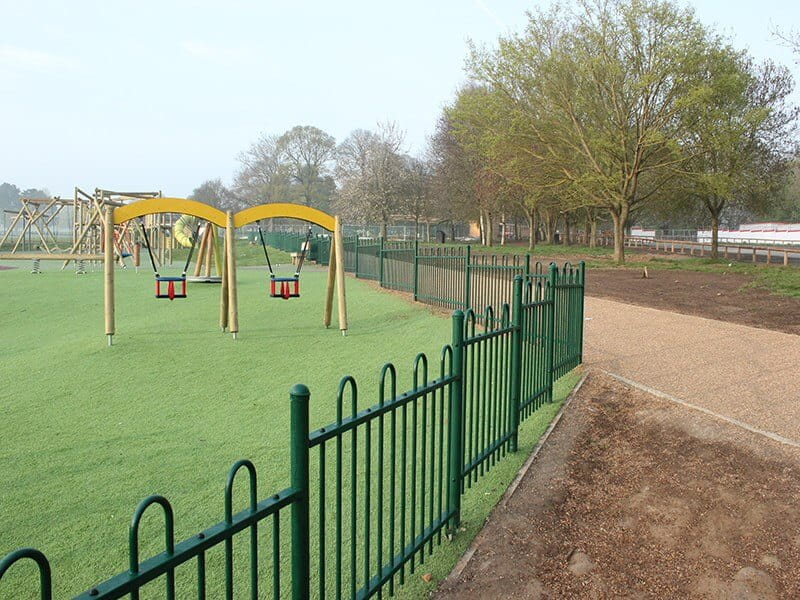

    Seeing our fencing and gates installed in situ helps to provide inspiration for other projects. Our anti-trap bow top fencing has been installed in many schools and public parks including Holt Parish Council and Mote Park in Maidstone.

    View Gates

    Playground Fencing Range

    Browse other RoSPA approved products in our playground and play area fencing range.

    Playground Fencing
