High Security Acoustic Fencing

Trident® Jakoustic 3 | High Security Fencing

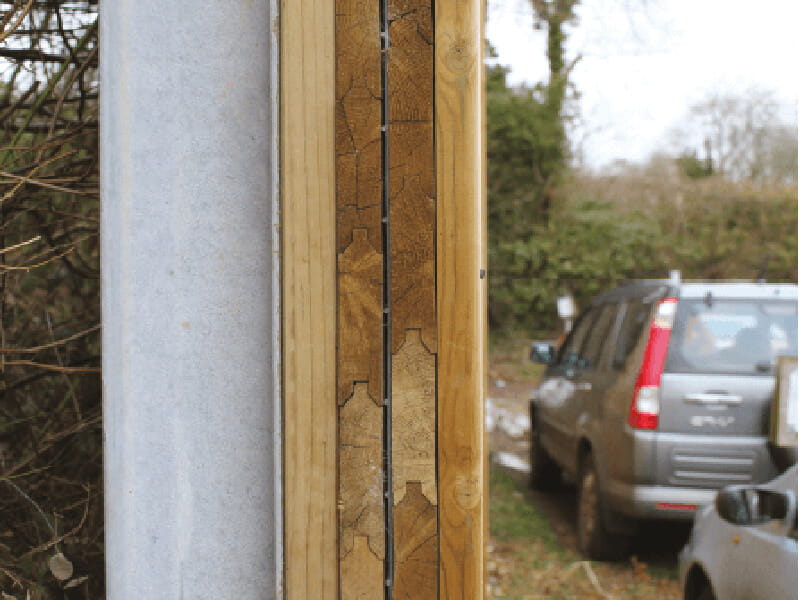

Trident® Jakoustic 3 system is of sandwich construction comprising two facings of interlocking ‘V’ timber boards, interlined with a layer of high security steel mesh 2.28m above ground. The interlocking ‘V’ coupled to a tongue and groove locates the boards in such a way that eliminates gaps even when boards shrink and expand with changes in the weather. The totally flat attack face, high security steel mesh interlining and combination of unlike construction materials makes the fence extremely difficult to scale or penetrate.

25 year service life guarantee

Jakoustic® Class 3 Features

  • LPS 1175 C5 (SR3) approved
  • Double layer of 34mm thick timber boards provide a high level of resistance to cutting
  • Also available as LPS 1175 F1 or G1 - speak to our sales team for more information
  • Secured by Design preferred specification
  • Anti-climb design with completely flat face allowing no foot or hand holds
  • Reflective acoustic barrier with up to 28dB* reduction in noise
  • Can accommodate changes in ground level or profile
  • Rota Spike® optional
  • SR3 gates available



Panels

The acoustic barrier comprises of 4.8m acoustic boards, laid brick fashion with joins staggered in each row fixed to galvanised steel 'I Beam' post: creating a chain-effect along the attack face with great structural integrity.

Gates

Matching single leaf and double leaf gates available.

Trident® Jakoustic 3 Panel Specifications


Height (mm) Post Lengths (mm)
Post Centres (mm)
Topping
3900 2410 Dimensions to suit fence Concertina razor wire



*This product is CPNI approved at the tested height, other heights/specifications are available for this product on request

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete

Standard Finishes

  • Jakcure® treated as standard

Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request

Document Downloads

Download specification documents, drawings and case studies for this product
